Block & Tackle side-load (non tilt) window balance

Home Owner from Minnesota
We are looking for replacement window balances for 4 windows. Not sure what measurements you need. Ordering is confusing.
7 Replies
Tom
Tom from SWISCO
SWISCO
Expert

We need more than measurements in this case. We will also need detailed photos of an undamaged version of the balance in question so that we can match up the design. Start by removing an undamaged version from the window and showing me a clear picture of the top end, bottom end, and stamp.

Note that I may require more photos, but I have to know what to ask for, first.

Home Owner from Minnesota

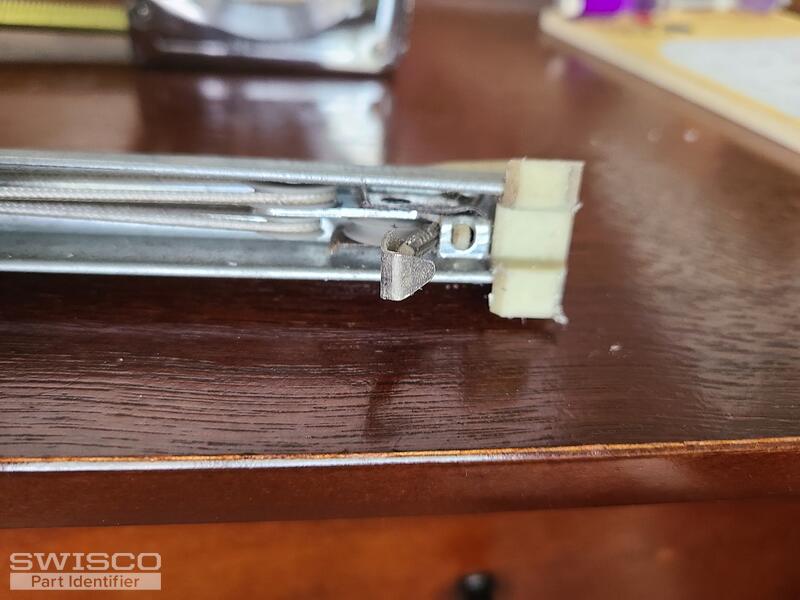

See photos
4 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Thanks for your photos. Based on what I see here, you have either our S380-26 or S385-26, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
Home Owner from Minnesota
Ok; we'll measure it tonight and get back to you. Thank you.
Home Owner from Minnesota
We've determined we need the S385-26.
Tom, based on the stamp on our old balance (see photo), what weight option do I need?
Thanks....
Emily
Emily from SWISCO
SWISCO
Expert

Hello! Tom isn't here today but I can help. It looks like your stamp says 25 5 which means you'd want the 2550 spring strength option.
