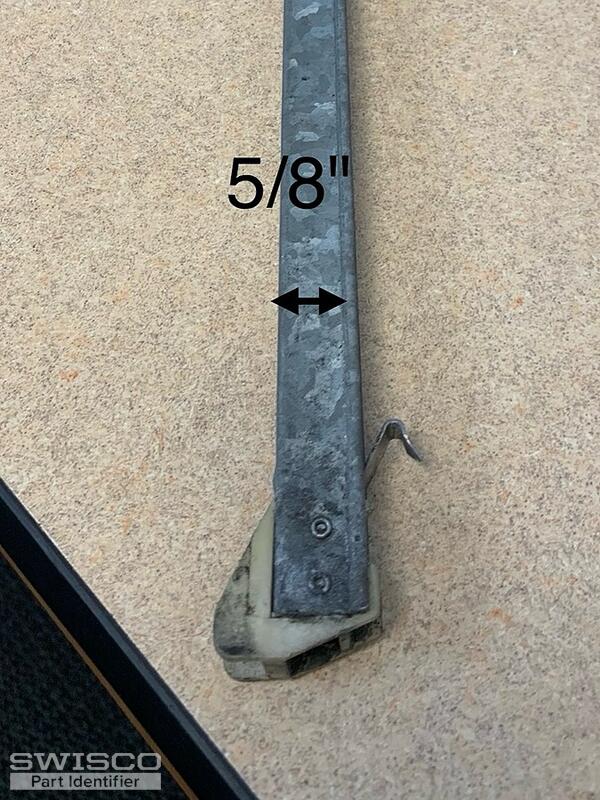

I need to get 4 block and tackle balances as well (pictures attached). We need 4 take out clips as well (link attached). The length measuring only the metal (not including plastic attachments) is 27". Let me know if there is any other measurements of information you may need.
Block and Tackle balances

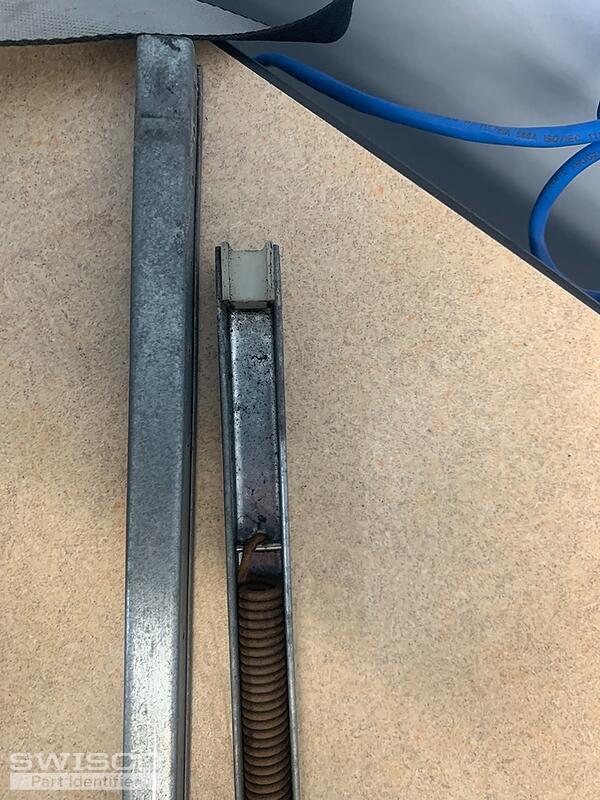

Hello there. I'm confident we can help, but we need to see the fitting on the other end of the metal channel. If you can show us both, we should be able to narrow this down. For take-out clips, see if our 16-002 match what you have.




Thanks! Looks like that top fitting is similar in design to our 19-011. We unfortunately don't sell a stock balance where this fitting is a feature, so if that is what you have then the balance assembly will have to be custom made. With that in mind, I highly recommend reviewing our dimensions below to verify that they all match up.

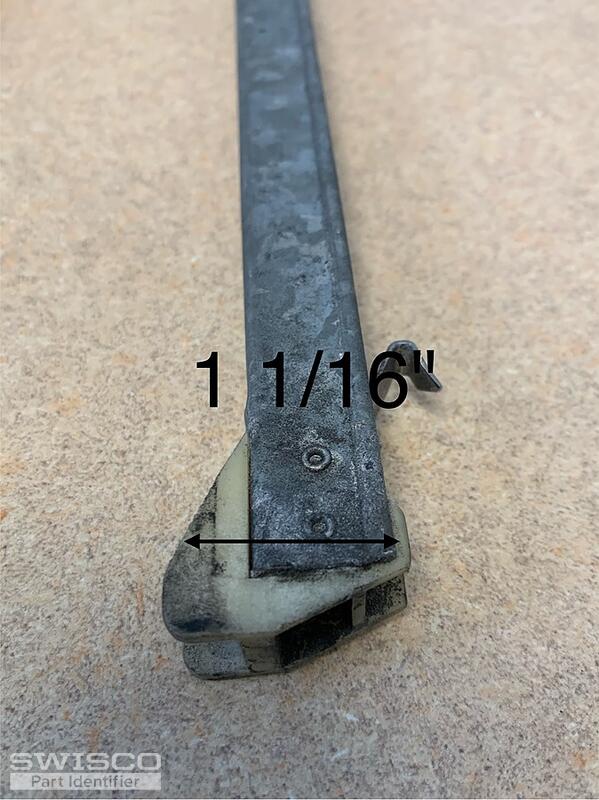

Another detail to consider is the bottom fitting. Your photo indicates that the depth is 1-1/16", but they don't make this style shoe in that size. More likely it was 1-1/8" and wore down over time from friction, which is common. That would make this our 15-001 bottom fitting.
So to summarize my plan, we would be making you 4 channel balances at 27" long with a 2640 stamp option, 19-011 top fitting, and 15-001 bottom fitting. If that sounds good to you, just let me know and I'll email you a purchase link and price quote that will let you add this custom assembly to your cart.
