Block and Tackle replacement Balances for Sash Window

Question

Our window won't stay open, and noticed the cords in one if the block and tackle balances had broken.

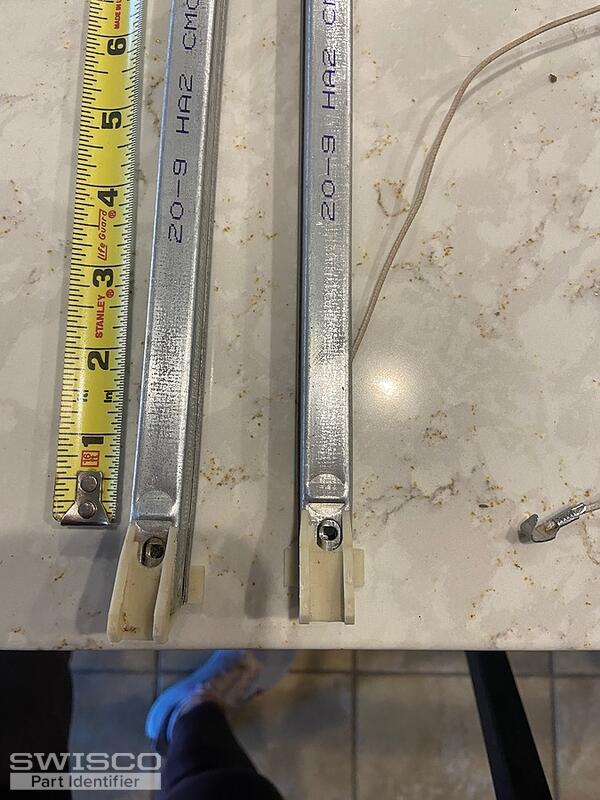

I removed the window and the part reads 20-9 HA2 CMC 5.

Looking at the pictures on your website it most closely resembles the S380 . However, I'm unsure about the weight, if I understand the 9 should relate to the sash weight which indicates I order the 1920. But the saw alone weighs 34 lbs, so if I assume each side of the balance takes 1/2 the load shouldn't I use the 1940 part?

I would appreciate help, I have pictures of the parts if it helps.

Minerva

Jasmine · Accepted Answer

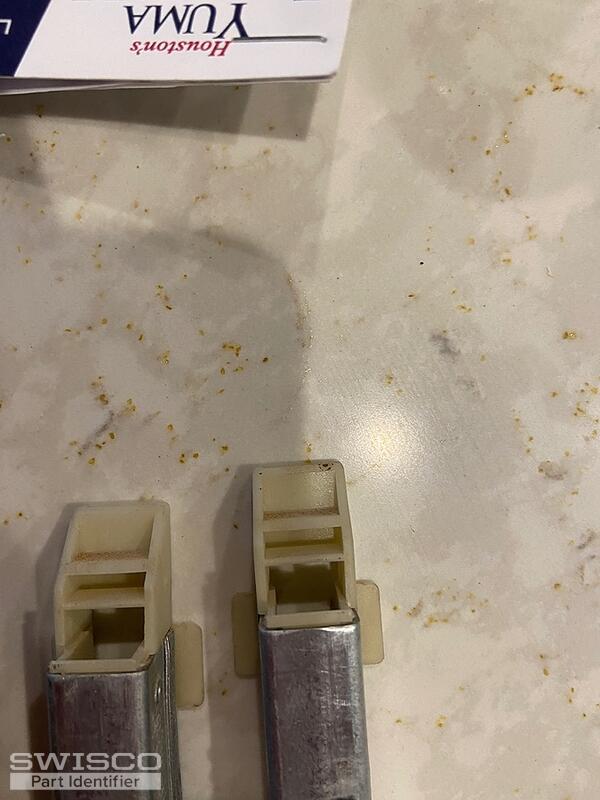

Thanks for writing in! It is likely that these balances will need to be a custom made assembly given the sash weight. Therefore to confirm the best possible replacement, I'll need to see a photo of the balance, removed from the window. I am specifically looking to see the top and bottom attachments.

Also, I would suggest double checking the length of the balance, from metal to metal only. The stamp you have indicates that this should be 21". Please also confirm the depth (front to back measurement) of the bottom shoe.

Once we have a better idea of the balance you need, we'll be able to guide you in the right direction for the stamp.
