Block and tackle rob balancer

Quick Learner from Statesboro, GA
Dec 14, 2023 10:52 am

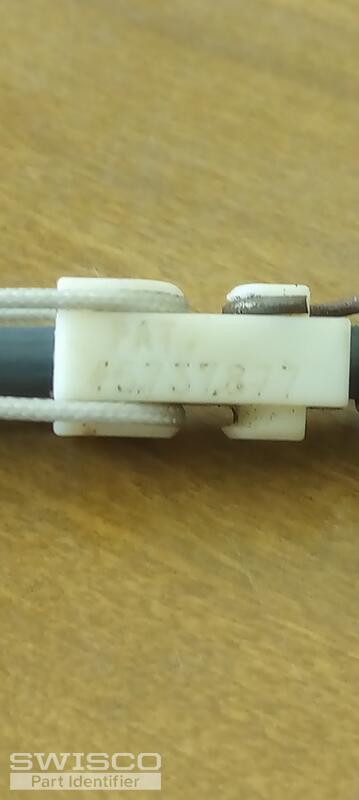

Attic windows with tilt capability. Only no. pat. 5737877.
Will need 12. Top and bottom.
17025688255175921922274794450495 17025688619085580322639782834914 17025689030303186666073430069151 17025689556805506874014459726814
4 user uploaded images
7 Replies
Emily
Emily from SWISCO
Dec 15, 2023 11:02 am
SWISCO
EXPERT

Hello!

Thank you for reaching out to us. This old-style balance isn't made anymore but we can still help. Is the spring diameter 1/2"? I recommend confirming to be safe. If it is, the video tutorial below will show you how to convert to our Series 795

Quick Learner from Statesboro, GA
Dec 15, 2023 11:27 am
The spring is 1/2", the shoe is 1 1/4", the sash weighs 18.2 lbs
Emily
Emily from SWISCO
Dec 18, 2023 9:50 am
SWISCO
EXPERT

You'll need the 15-195 shoe which comes attached with the Series 795 by default. You'll just need to measure an undamaged balance as shown in the video to determine the length. The pivot bar will also need to be removed from the sash to see if the 26-366 or 26-021 is the better match.

Quick Learner from Statesboro, GA
Dec 18, 2023 10:36 am
The tops are 22.5"
The bottoms are 24.5" .
We will need the new pivot rods.
Emily
Emily from SWISCO
Dec 18, 2023 3:30 pm
SWISCO
EXPERT

In that case, you'd want the S795-22 and S795-24 since we round down for the length. There's a chart under the product description that will tell you what stamp is best based on the weight of the window sash.

You can place an order for these balances and the pivot bars directly on our website at your convenience!

Quick Learner from Statesboro, GA
Dec 18, 2023 3:46 pm
Thanks for all your help.
Emily
Emily from SWISCO
Dec 19, 2023 7:41 am
SWISCO
EXPERT

No problem. Please let us know if you need anything else and good luck with the repair!
