Broken #10 coil spring and support pin

Home Owner from Maryland

Jan 23, 2021 12:23 pm

Hi,
I'm looking for a 1/2" #10 coil spring. Your 152 coil balance looks like a close match, but it doesn't go up to #10. Any suggestions?

I also found that one of the main support pins (pivot bar?) broke. Do you carry replacements?
Thanks.

3 user uploaded images

5 Replies

Casey from SWISCO

Jan 26, 2021 8:22 am

Hello,

I agree that your assembly looks like a match to our 15-177 pivot shoe and S152 coil springs. I would recommend using two of the S152-5 springs on each side of the window, which will support the same amount of weight as one 10 pound spring per side.

Also, we do carry a selection of pivot bars but we'd need to see an undamaged pivot bar removed from your window sash to research your replacement options. Thank you!

Home Owner from Maryland

Jan 27, 2021 9:35 pm

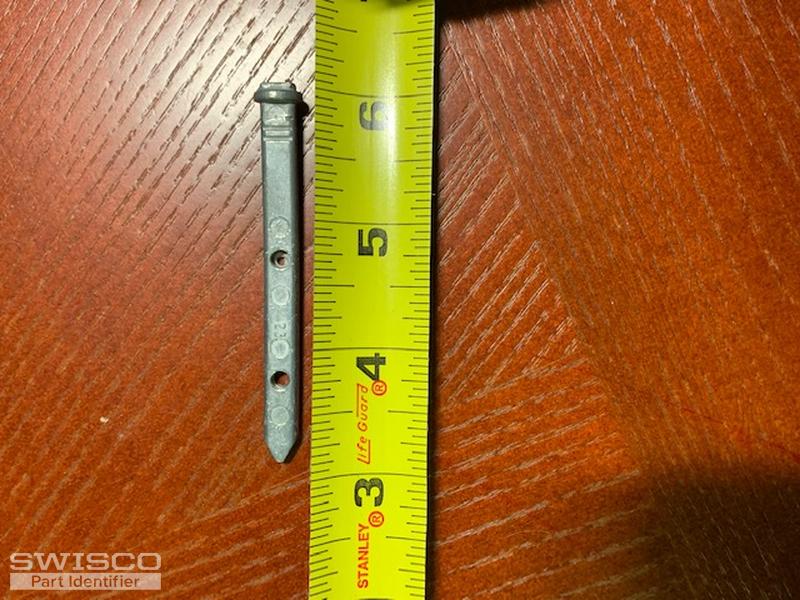

Hi Casey. I included a picture of an unbroken bar. It looks like your 26-226 product is a match.

For the coil springs, I'm a little confused. If I double up the springs on each side, do I need to get a different coil support, or a second one to mount above or below the current one? I can see how the pivot shoe could have two springs attached to it, but I wasn't sure how the other end of the spring (the support?) would be set up.
Thanks for your help on this!

1 user uploaded image

Casey from SWISCO

Jan 28, 2021 10:44 am

I agree that as long as the dimensions match up to ours, the 26-226 would be the way to go.

As for going from one coil to two, you'd just install one on top of the other using the 15-143 bushing, 15-144 cap, and 15-145 support barrel. You can get an idea of what that will look like in another customer's discussion here.

Home Owner from Maryland

Jan 29, 2021 9:19 am

Casey- Thank you so much for your help with this. Based on your clear explanations, I've ordered the parts and I'm confident I can make the needed repairs.
Have a great day!
Jeff
