Broken Balance

Question

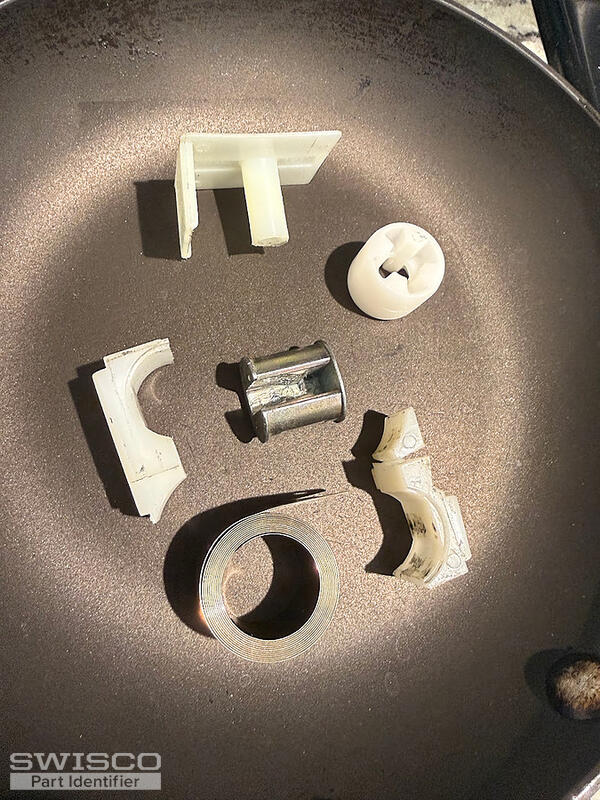

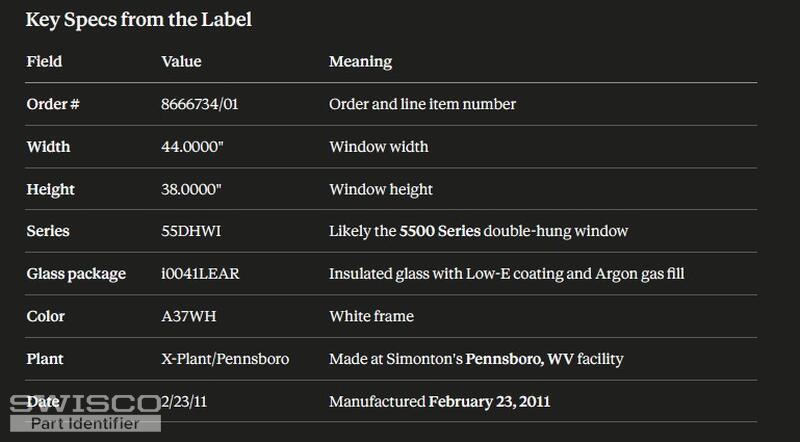

I have a window with a couple of broken balances. One on the upper pane and one on the lower. I'd like to order replacements to do both sides of both panes. Unfortunately, I can't seem to find any identification of the balance weight. I put the label into AI and it spit out the details attached, which are hopefully correct. Looking for help figuring out which parts I need. Again, I'd like to replace the balance on each side of both the upper and lower pane (for peace of mind). Looking forward to hearing back, thank you!

Jasmine · Accepted Answer

Thanks for reaching out! Your Simonton balance assembly is no longer made but we are quite confident the 15-259 and Series 159 Coil Balance will work to replace it. Your existing pivot bar will not be compatible with this shoe, so you'll also need to the 26-083. The specifications for the shoe and pivot bar can be found on the website.

Please see the tutorial below for instructions on completing this conversion. There is also a tutorial (tagged below this thread) with instructions on selecting the correct coil weigh option.
