Broken Balast and attachment parts

Friend from Cincinnati Ohio

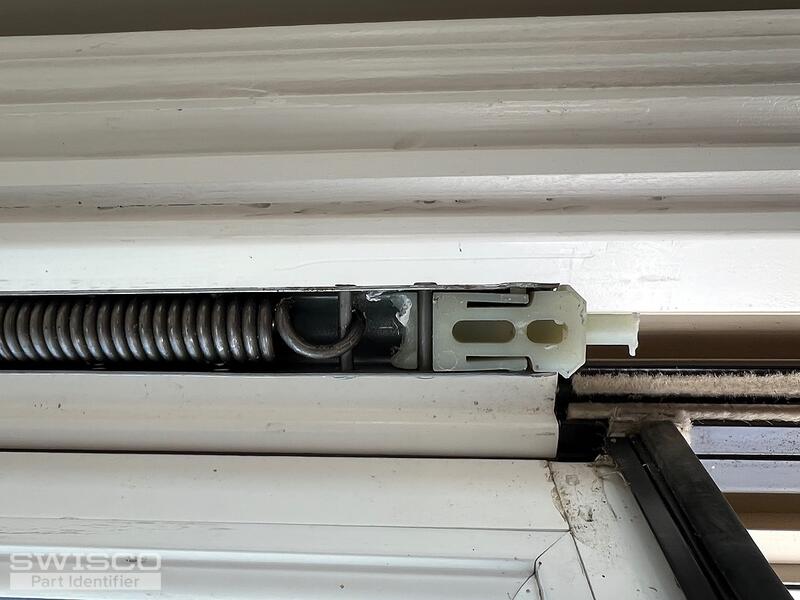

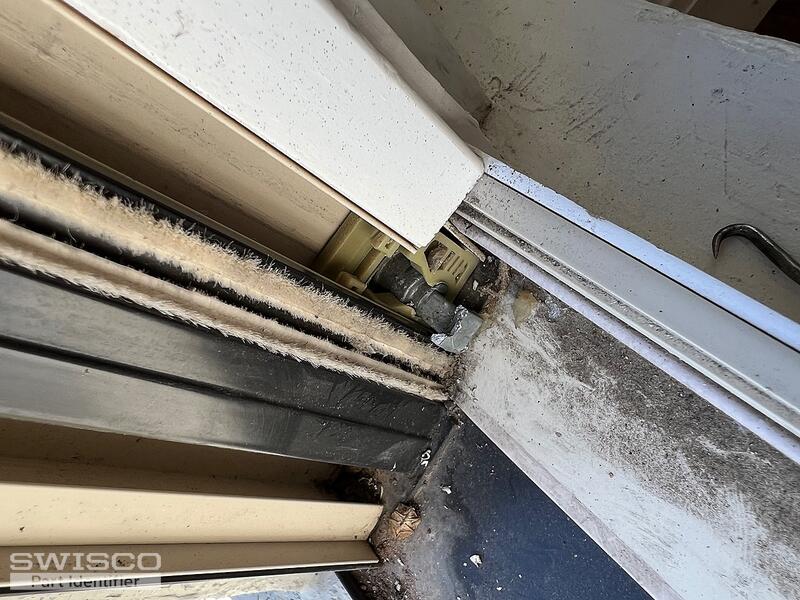

Replacement window parts. Broken plastic " Ball", which supports attaches toballast
5 user uploaded images
6 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

You can start by comparing the specifications of the 26-402 pivot bar to yours.

Alternate image for 26-402
Alternate image for 26-402

Alternate view of 26-402
Alternate view of 26-402

As for the balance hardware, it looks like you may use the 15-224 inverted link, which attaches to the 15-216 pivot shoe. We'll need to see how the top of your balance attaches to the window jamb and confirm the numbers stamped on the balances channel to confirm the correct replacements. Thank you!

Dimensions for 15-224
Dimensions for 15-224

Alternate image for 15-216
Alternate image for 15-216

Friend from Cincinnati Ohio
Yes. It looks like the replacement. Do you have these parts and block and tackle 34 D?
Casey
Casey from SWISCO
SWISCO
Expert

Thanks for getting back to us. The 34D stamp tells us the strength of the spring but we'll still need to see how the top of the metal channel connects to the window jamb, as well as confirm the length of the balance, not including the inverter link.

Friend from Cincinnati Ohio

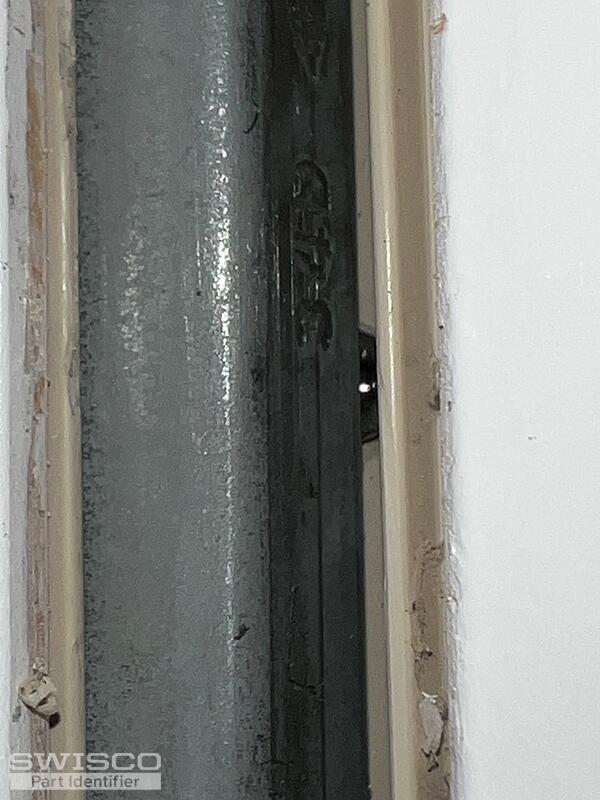

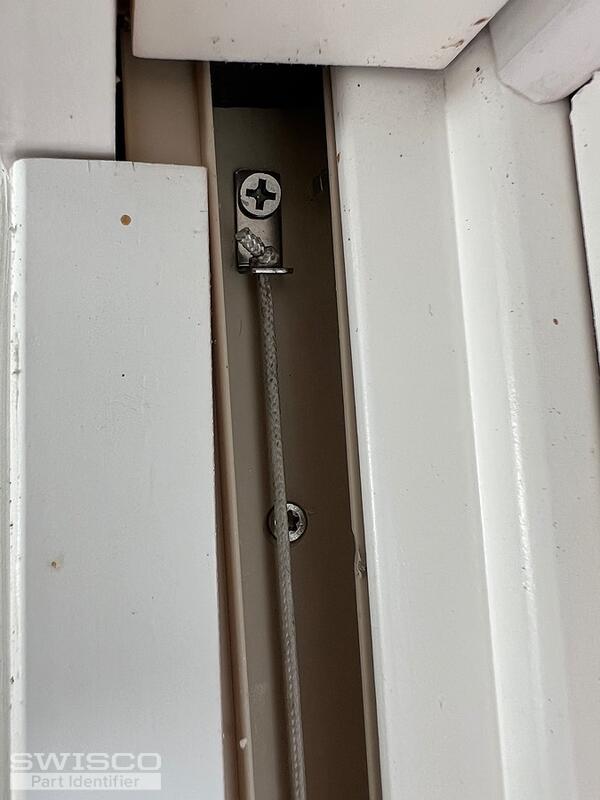

This is the channel. 34" long. Ready to order replacement parts if this is all that is needed.
FB
2 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Great. Take a look at the S795-34 (34D) channel balance. You'll need to follow the video below to swap out the T-lock shoe with the 15-224 inverted link. Just let us know if you need anything else.
