Broken Latch : SWISCO.com

Home Owner from South Glastonbury, CT

Dec 28, 2017 9:53 am

Believe to be 38-138 or 38-139.

As both hole centers are same, how would I determine which part is correct and matching others?

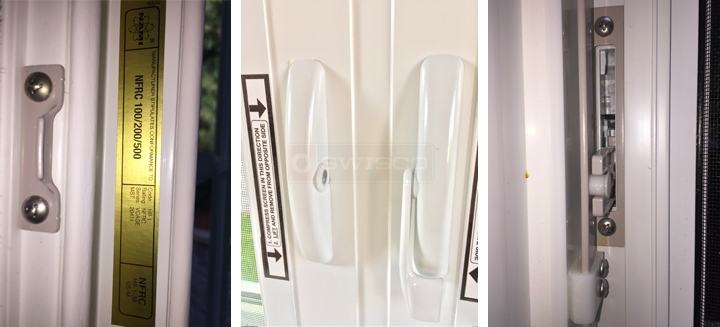

User submitted photos of window hardware.

4 Replies

Tom from SWISCO

Jan 8, 2018 11:33 am

In order to confirm if our 39-138 or 39-139 are right, you will need to remove your old lock and compare the size of the locking fork to determine which is the better match.

Quick Learner from CT

Feb 23, 2018 4:18 pm

Tom,

Assumption knowing what the locking fork is, what is it that I am measuring?

I am just getting back around to this again. Should have bookmarked the webpage. Email went to spam. Ugh.

Best,
Jeffrey

Tom from SWISCO

Feb 26, 2018 8:46 am

Not a problem at all! The most important dimension is the projection of the fork, but really you want to make sure every measurement we show on the 39-138 and 39-139 store pages match up. I will post them here for your convenience.

Alternate view of 38-138

Alternate view of 38-139
