Product Code: 39-138

Single Arm Crank Operator, 9-1/2"

Name: Single Arm Crank Operator, 9-1/2"
SKU: 39-138
Price: 33.35 USD
Availability: InStock

$33.35

Quantity	Price
1-9	$33.35/ea
10-24	$31.68/ea
25-49	$30.02/ea
50-99	$28.35/ea
100+	$27.35/ea

Please Note: Bulk pricing applies only to purchases of the same option

white dark bronze aluminum black

Quantity

Add to Wishlist

Product Description

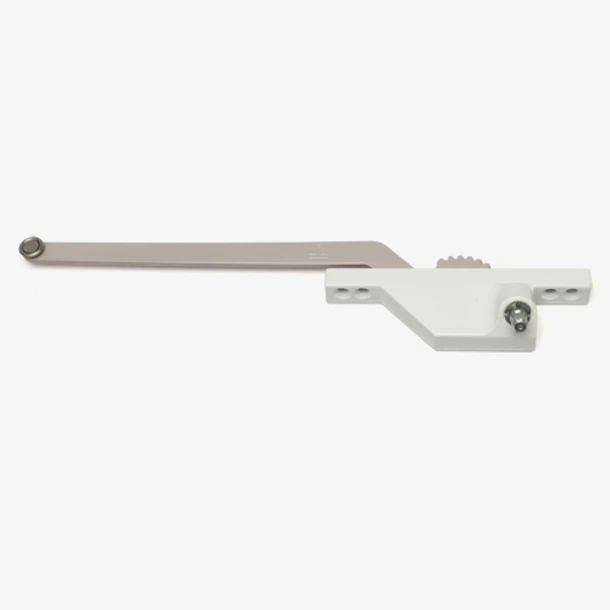

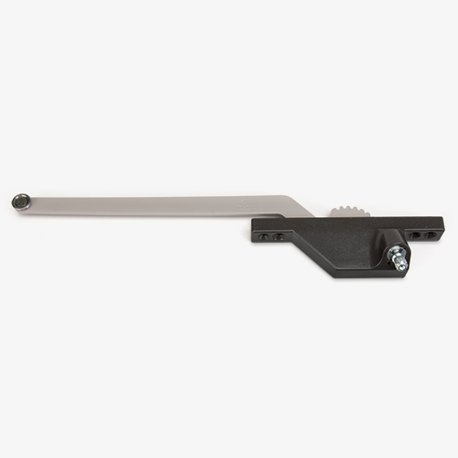

This is a genuine Truth Hardware front mount, single arm casement operator.

See SWISCO product 39-139 for the opposite handed version.
Will provide a full 90 degree window opening.

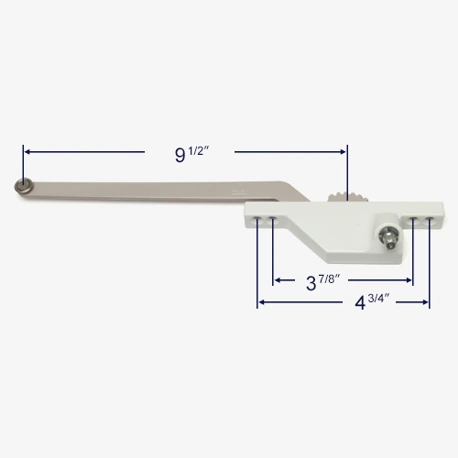

9-1/2" long arm, measured from wheel center to gear center.
11/32" spline; handle sold separately.
Case is manufactured of high-pressure die-cast zinc; hardened steel drive worm and gear arm with a stainless steel roller.
Finish is electrostatically applied, durable coatings that provide excellent resistance to chipping, scratching and corrosion while maintaining color stability for years in direct sunlight.

ID operator TRUTH 40065

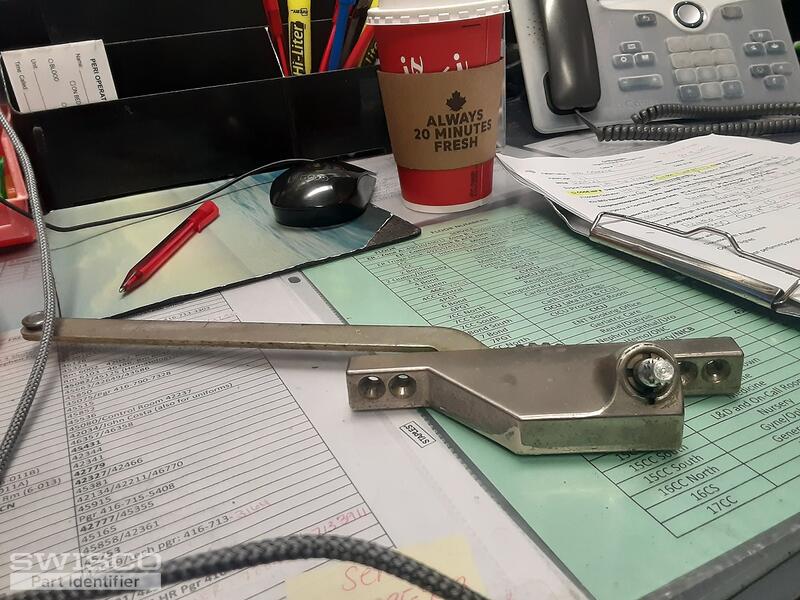

I have (7) commercial aluminum windows with most having disfunctional operators. The windows are from 1988. Seeking to replace all operators and need assistance in ID'ing. I had ordered a 39-028E, 39-533 and 39-114L. Obviously the 39-028E is the wrong style. Regards, Tom

Casement operators and cranks

I need 3 left hand and one right hand

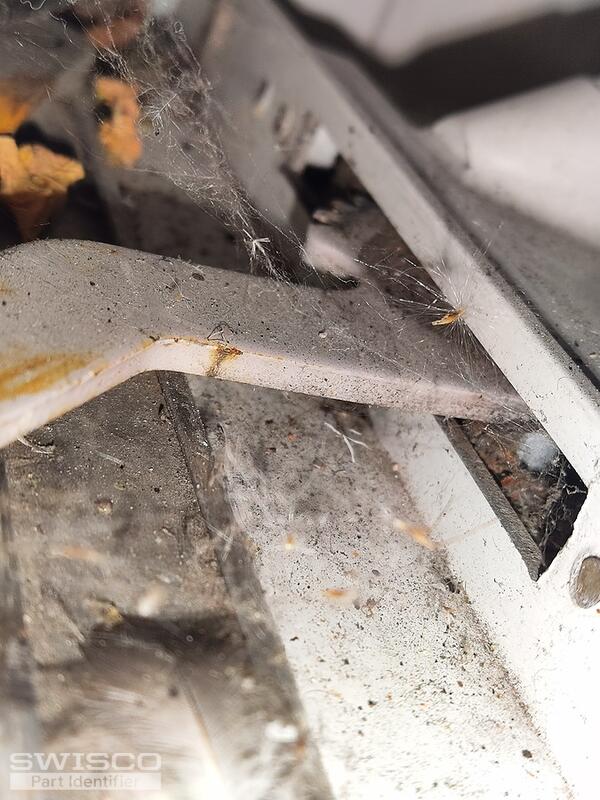

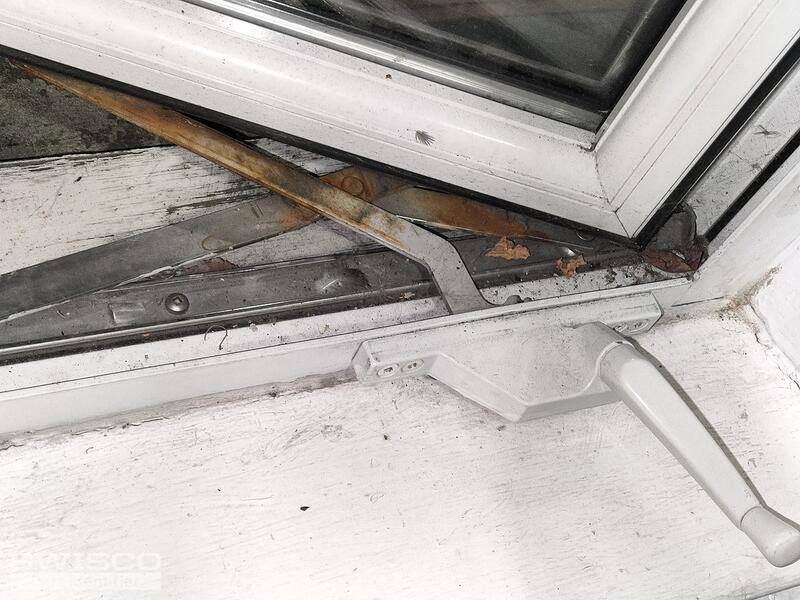

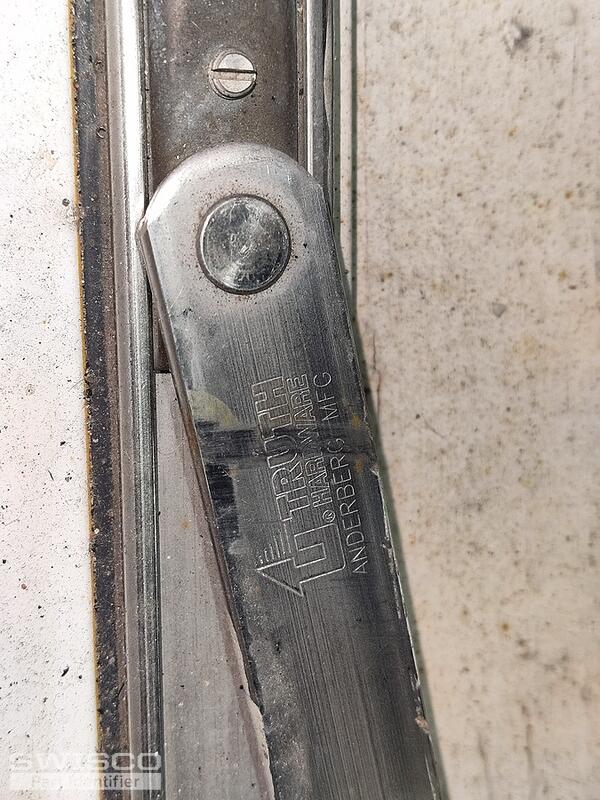

Right and left hand casement crank mechanisms identified as manufactured by Truth.

The right hand mechanism has a rusted swing arm. I would like to replace both of them,

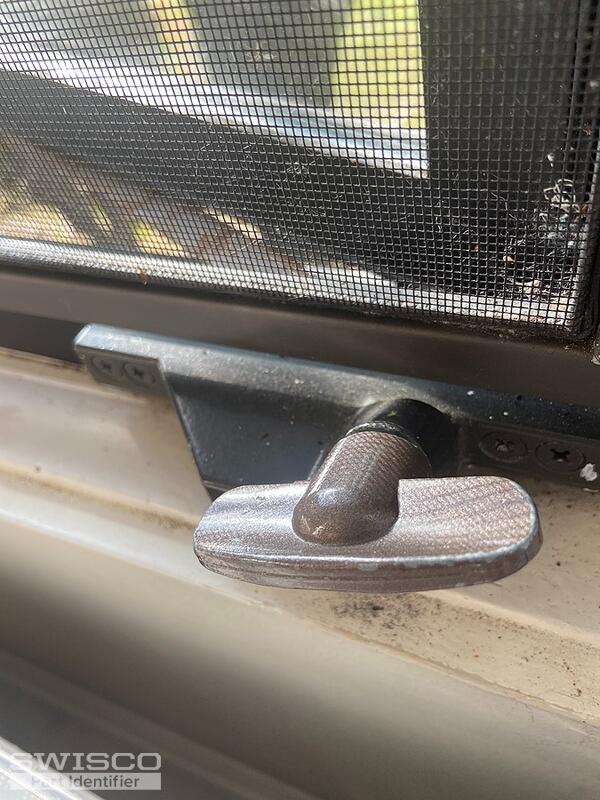

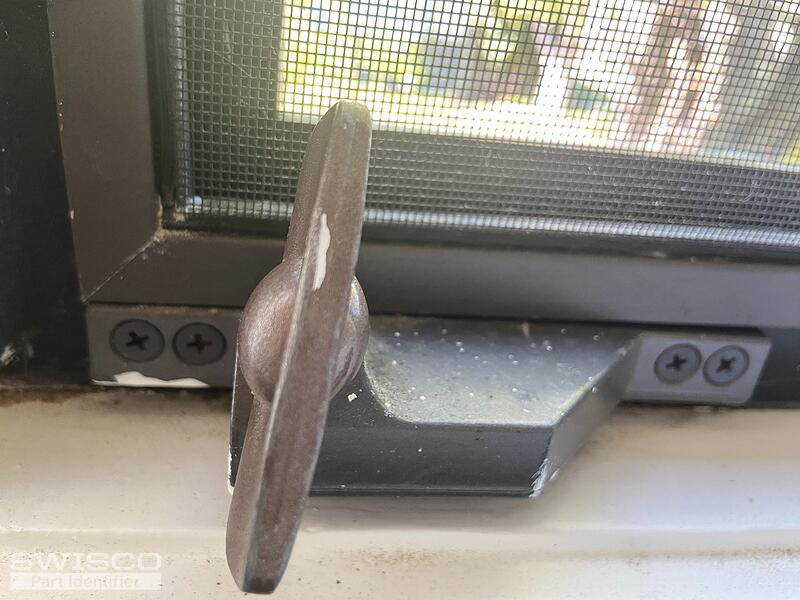

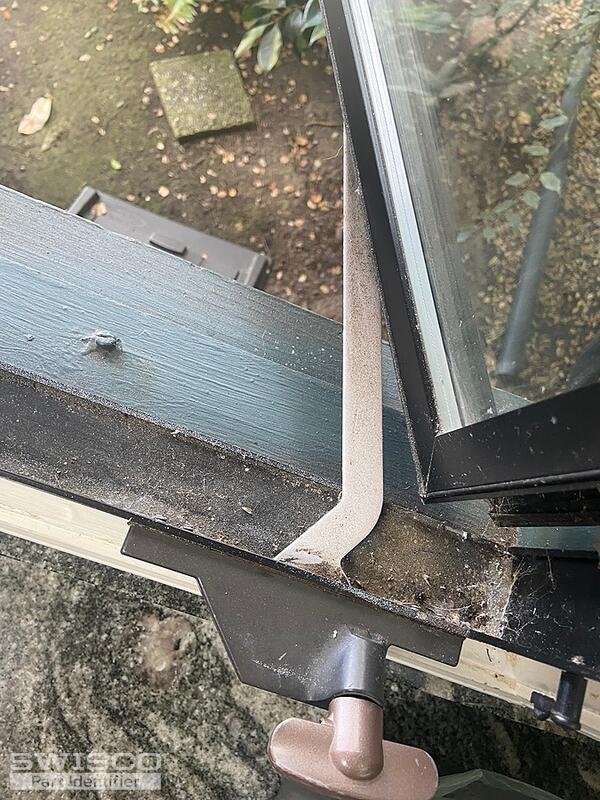

Handle hits granite that was installed on window sill.

Do you have a replacement handle and extension that will fit this window crank assembly? The current handle sits too close to the granite. Thanks

Window operator and Latch

Please help locate part numbers for this window operator and latch. I work for Greystar Property Managent and I am having issues finding this parts for our windows. Thank you for any guidance you may provide.
