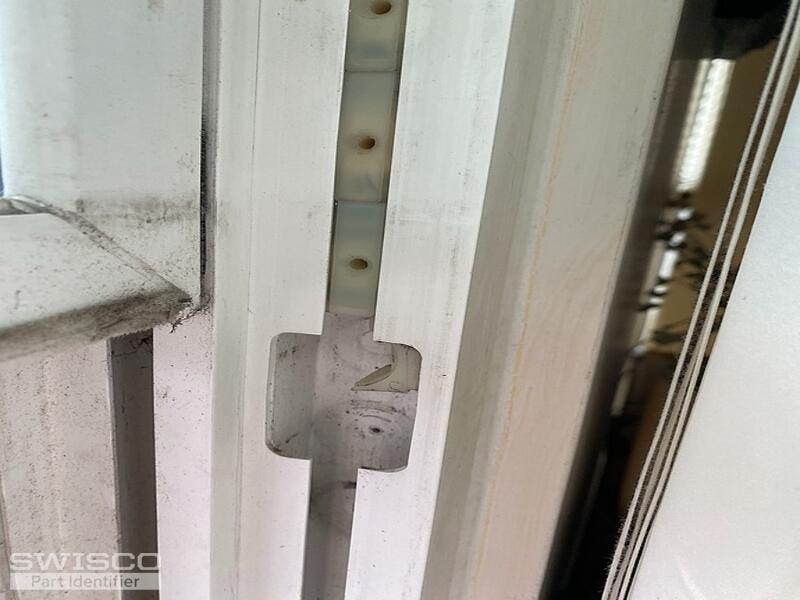

Pivot shoe lock broken
1 1/4" wide by 1 3/8" high x 5/8" thick

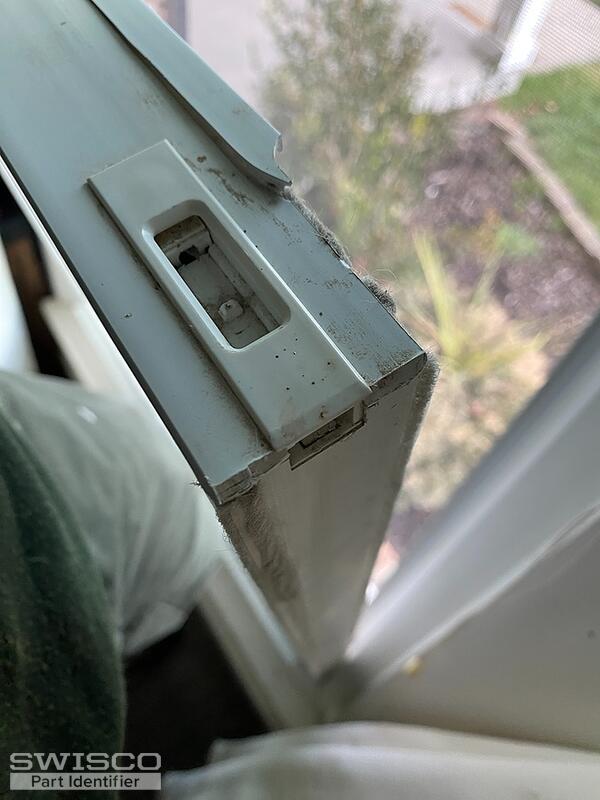

Tilt latch broken (Right hand)
3/8" tall x 5/8" wide x 2 5/8" long
Pivot Bar Broken (WRS DIE CAST SIMONTON PIVOT BAR 3 holes)
Broken Parts
Handy Person from West Lafayette IN
Dec 3, 2022 8:17 am
5 user uploaded images
2 Replies
Emily from SWISCO
Dec 5, 2022 2:59 pm
Hello there!
If this is a Simonton brand window, my recommendation would be the 15-259 pivot shoe and Series 159 coil springs. The video below will detail the replacement process.
As for the tilt latches, see if the specifications of our 26-243 and 26-244 match up to the originals.
