Broken Parts not Window won't slide up and down the track properly

A quick learner from Ohio says:
May 21, 2023
Broken Guide Bolts from inside the window itself that prevent the window from coming out of the frame broke, and the part inside the frame that the bolts rest into are broke. These are double hung windows, I don't know who manufactured them, however I included a picture of the warranty that was located in the top of the window frame but I can't relate it to anyone.

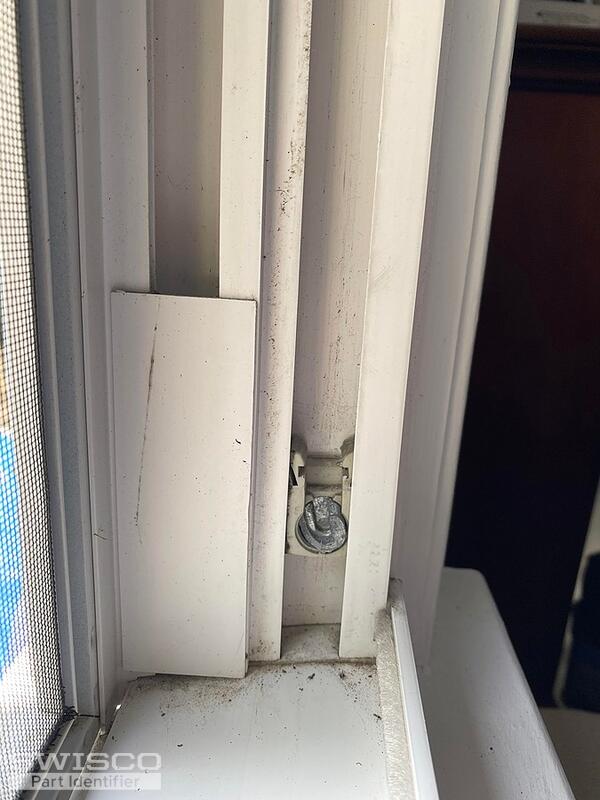

Thumbnail of the uploaded file named Window Broken Part.jpg

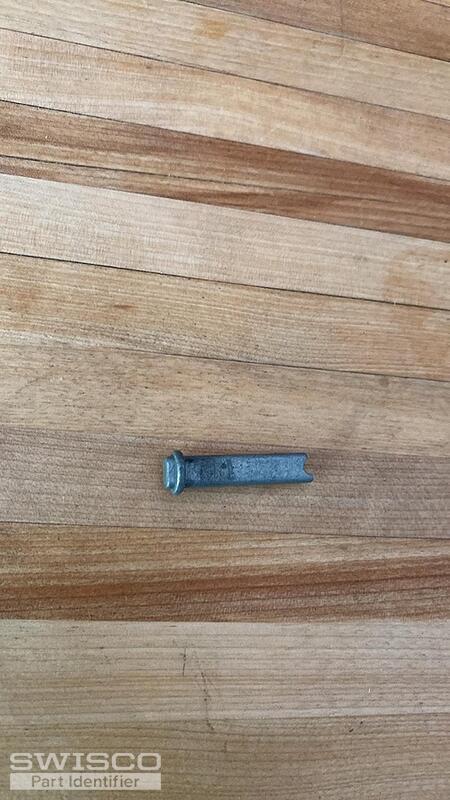

Thumbnail of the uploaded file named Broken Guide Bolt.jpg

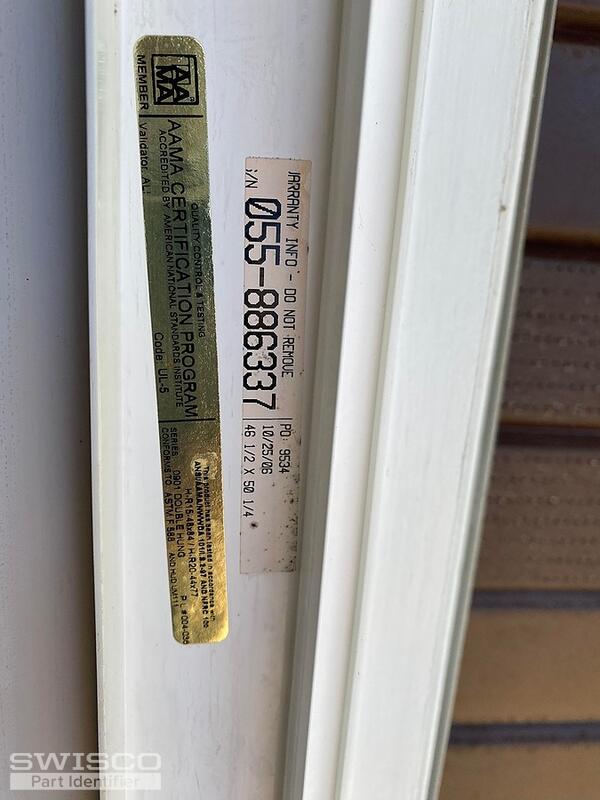

Thumbnail of the uploaded file named Window Warranty.jpg
Profile picture of Emily
Emily from SWISCO responded:
May 23, 2023

Hello there!

Thank you for reaching out to us. I suspect you may have the 15-177 pivot shoe which is designed to use the S152 coil springs. This part measures 1-1/4" wide and 9/16" thick so I recommend you remove your old pivot shoe from the window track to confirm the specifications align.

I can't be certain since your pivot bar is broken but our 26-226 comes to mind. Take a look and see how the dimensions compare with an undamaged version.

Alternate image for 15-177
Alternate image for 15-177

End view of the 26-226 pivot bar
End view of the 26-226 pivot bar
Coil Balance Shoe, Slate Blue
Coil Balance Shoe, Slate Blue
15-177
$3.47
Pivot Bar, 3-1/16"
Pivot Bar, 3-1/16"
26-226
$2.55
How to remove window pivot shoes
How to remove window pivot shoes
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
How to replace a window pivot bar
How to replace a window pivot bar
VIDEO
WATCH >
Removing Rusted Pivot Bars
Removing Rusted Pivot Bars
VIDEO
WATCH >
