Broken Sash Balance Spring Shoe, 5704165

A contractor from Bethlehem, PA. says:
May 6, 2021
Hello Swisco,
I need two of these one Left & one Right. Please help ID if you can. Not sure of the manufacturer, maybe Curtain Teed. Fairly old windows. I hope the pictures help!

Thanks!!

Jerry
Thumbnail of the uploaded file named IMG_1404.JPG
Thumbnail of the uploaded file named IMG_1405.JPG
Thumbnail of the uploaded file named IMG_1406.JPG

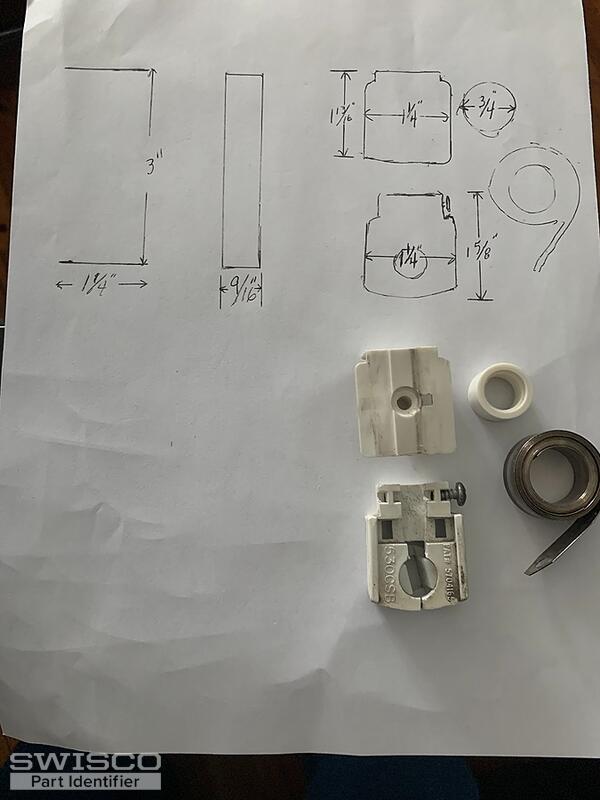

Thumbnail of the uploaded file named IMG_1408.JPG
Profile picture of Tom
Tom from SWISCO responded:
May 10, 2021

Hello, Jerry. I've seen this shoe a few times before, but not that often. You weren't kidding when you said these were old.

We unfortunately don't have an exact match. I don't think these have been made in a long time, honestly. I think you should consider a new pivot shoe assembly like our Series 140. I can't be 100% sure this will work for you but I do think it's our best bet.

If you decide to try it out, you will need to weigh your sash to confirm which Series 140 strength option to go with. You will also need either a new 26-398 or 26-405 pivot bar, since these are the two sizes compatible with this new style balance.

I'm sorry that we couldn't get you a closer match.
Round End Pivot Bar, 2-1/2"
Round End Pivot Bar, 2-1/2"
26-398
$1.70
Rounded End Pivot Bar, 2-7/8"
Rounded End Pivot Bar, 2-7/8"
26-405
$1.72
