Broken Window Sash

Home Owner from Harvest, Alabama

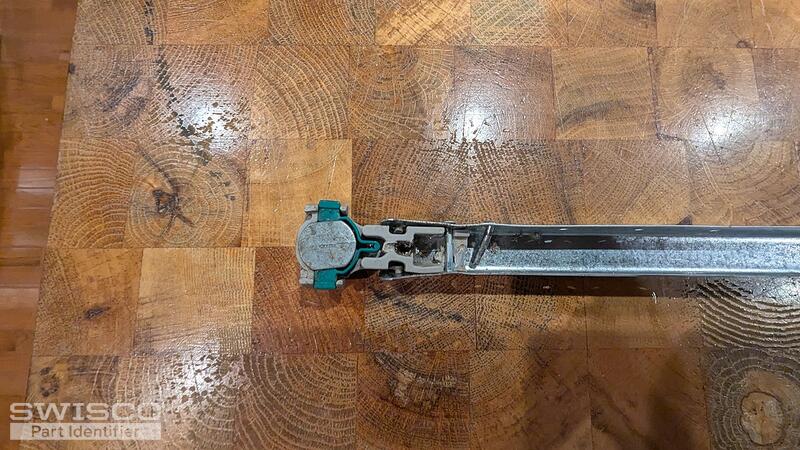

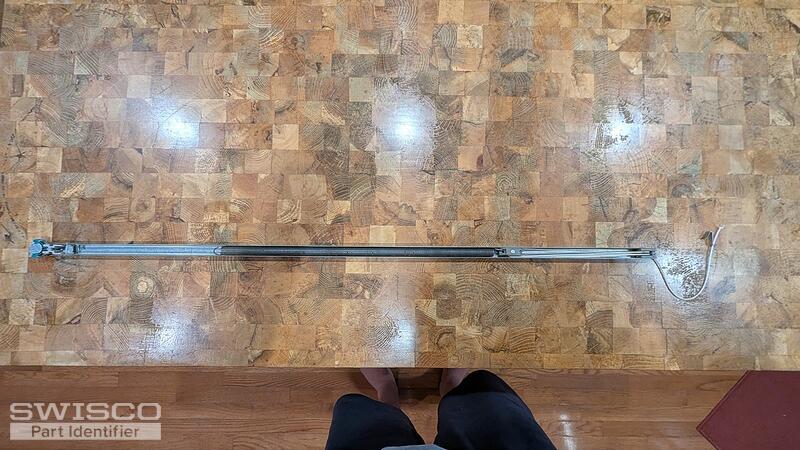

 Hello, I have a broken window sash.  The pin/rivet holding the spring at the base has sheared off.  It is stamped with 32B BSI.  It looks to be very similiar to your S795-32,  except that the top of the string has a metal hook that hooks in the window frame.  Can you advise what part I would need to replace?
5 user uploaded images
5 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Thanks for reaching out to us! We can supply a balance with this configuration, but it will have to be a custom order. Basically, we would use our S795-32 but with the top clip replaced with the 15-198. It looks like you also need the 1" wide 15-194 shoe, but that's not made available with the balance; you will need to purchase it separately and then swap them out on receipt.

Before we go any further, can you first tell me how many you need? Once I know that, I'll email you a purchase link and price quote that you can use to place an order on our site.

Home Owner from Harvest, Alabama
Hello,
I just need one of these.
Home Owner from Harvest, Alabama
I only need one.
Tom
Tom from SWISCO
SWISCO
Expert

Thanks for verifying. We can only supply two of these at minimum, as it's a custom order. I hope that's okay. You never want to mix old and new balances anyway, since that only leads to the new balance wearing out after only a few years of use.

I'll email you that order link now.
