Broken Window Tilt Mechanisms

A home owner from Monroe, NC says:
February 1, 2021
See photos...hoping you can assist in identifying the correct replacement Tilt Window Mechanism for these Simonton Windows. We have several in need of replacement. Thank you
Thumbnail of the uploaded file named IMG_9248.JPG
Thumbnail of the uploaded file named IMG_9249.JPG
Thumbnail of the uploaded file named IMG_9250.JPG

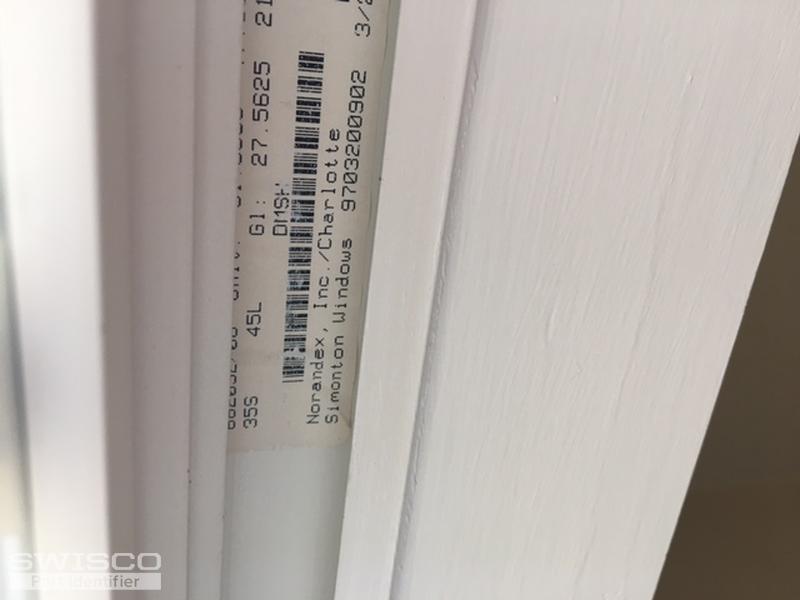

Thumbnail of the uploaded file named IMG_9251.JPG

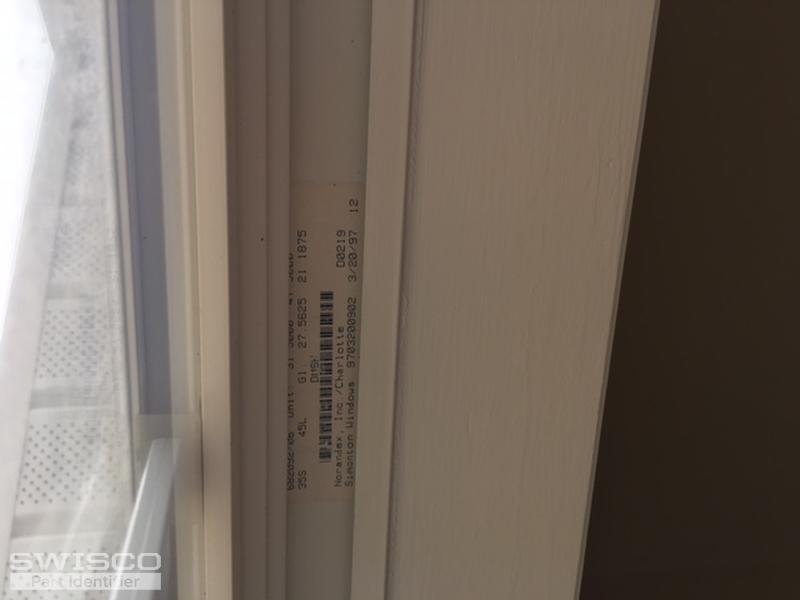

Thumbnail of the uploaded file named IMG_9252.JPG
Profile picture of Casey
Casey from SWISCO responded:
February 3, 2021

Hello,

We'd be happy to help but we would need to see your coils and pivot shoe removed from the window. We've related a video to assist you. Thank you!
A home owner from Monroe, NC says:
February 3, 2021
here are some more photo's of two that are broken. I'm hoping you can define by these photos without me having to take apart a good working window. I've also included a photo of one of the latches (right side). i'll need some left and right of those as well. Thank you for your assistance and I look forward to hearing back from you.

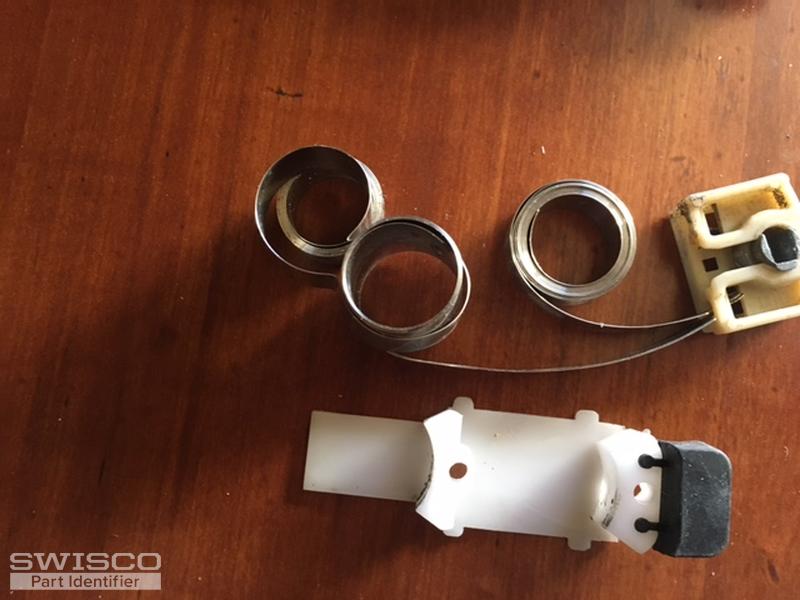

Thumbnail of the uploaded file named Left IMG_9255.JPG

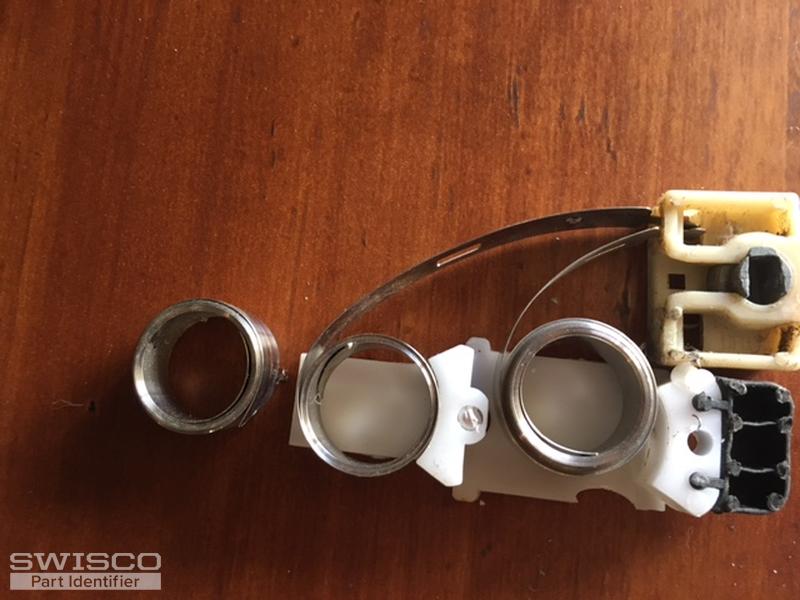

Thumbnail of the uploaded file named Right IMG_9257.JPG

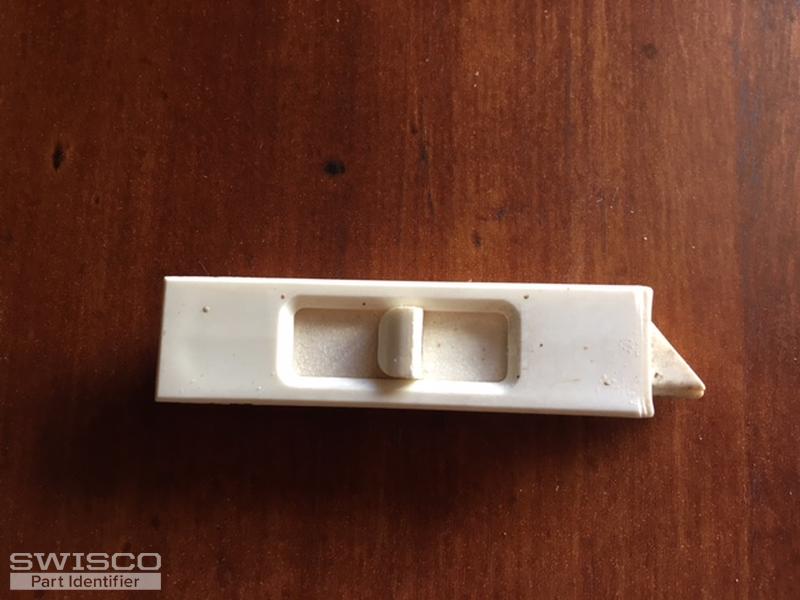

Thumbnail of the uploaded file named Right IMG_9258.JPG

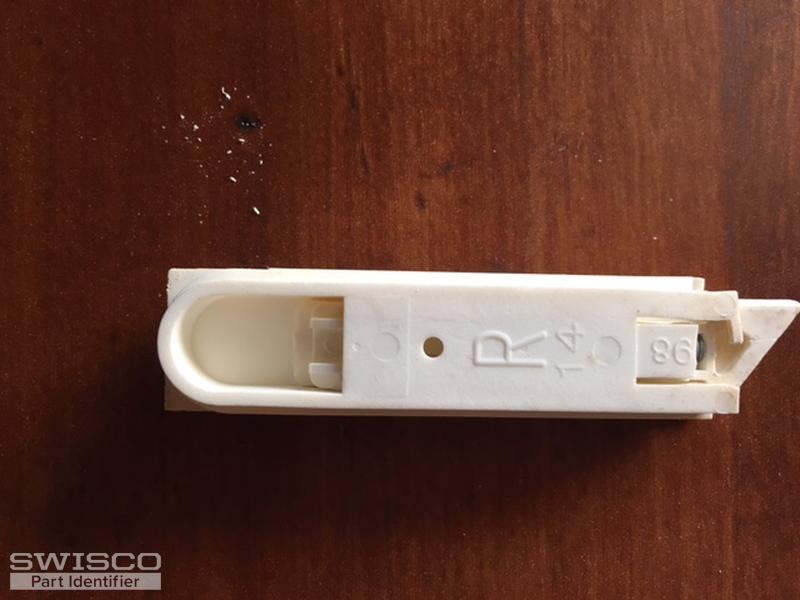

Thumbnail of the uploaded file named Right IMG_9259.JPG

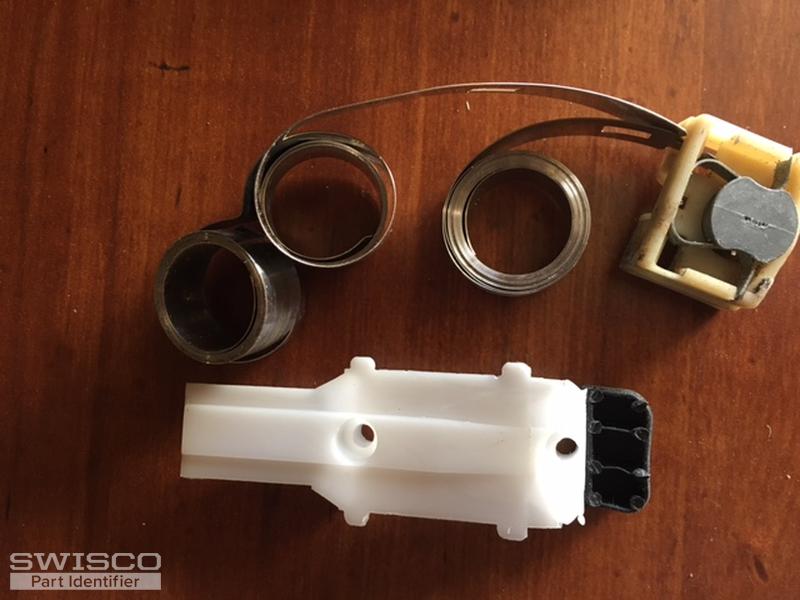

Thumbnail of the uploaded file named Left IMG_9254.JPG
Profile picture of Casey
Casey from SWISCO responded:
February 4, 2021

Great, take a look and compare our 15-111 pivot shoe that uses the Series 160 coils to your original hardware.

Also, you may be looking for tilt latches like our 2-5/8" long 26-419 and 26-420 or 26-243 and 26-244 but you'll need to compare all of the dimensions on both product pages to see which latch pair will work for you. Thank you!
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-111
$2.44
Tilt Window Latch, Left Hand
Tilt Window Latch, Left Hand
26-419
$2.73
Tilt Window Latch, Right Hand
Tilt Window Latch, Right Hand
26-420
$2.73
Tilt Window Latch, Left Hand
Tilt Window Latch, Left Hand
26-243
$2.70
Tilt Window Latch, Right Hand
Tilt Window Latch, Right Hand
26-244
$2.70
3.5 lbs Series 160 Coil Balance
3.5 lbs Series 160 Coil Balance
S160-03
$4.50
