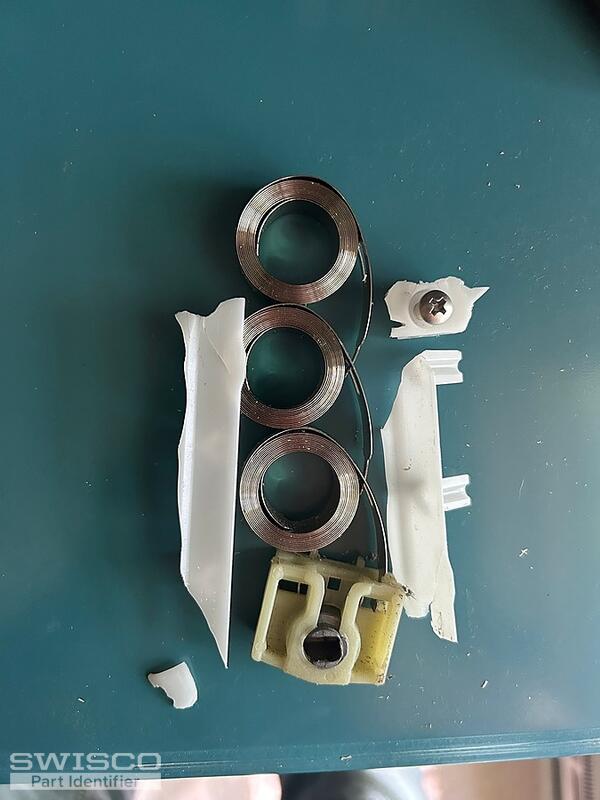

Broken balance assembly
Hey there,
Thanks for writing in! Your balance assembly appears to use the 15-111 Pivot Shoe. I am confident this is the replacement you'll need but be sure to carefully review and compare the dimensions to confirm.
This shoe is compatible with the 1/2" Thick Series 160 Coil Balance. Based on the patent numbers you've provided, I believe you need (2) of the S160-05 and (1) of the S160-06 but you may want to double check that the sash weighs 32lbs.
The compatible support is the 15-150T Coil Triple Support.
And I'd need supports, shoes, and coils for both sides of the window...so would this mean I'd need need (4) of the S160-05 and (2) of the S160-06? By my math that comes in right around 35lbs. Is the aim to get the coil weight as close as possible to the sash weight?
Finally - I noticed this heavy duty shoe (15-191). When is that recommended?
Hello,
Yes, you will want to get the weight as close as possible within a pound range. I apologize for the math typo above.
The coils that you have mentioned will work based on the weight of the sash. (2) S160-05 and (1) S160-06 on each side of the window along with the 15-150T coil support.
The 15-111 pivot shoe should work fine for your window since that is what was originally used. This shoe is interchangeable with the 15-191 heavy duty version. We usually recommend using what was original used in the window, but it would not hurt to change to the heavy duty version if needed.
Let us know if you have any additional questions.
