Broken balance spring

Home Owner from New Providence, NJ

Aug 30, 2020 2:20 pm

I have one spring broken. I can see no markings. Please help me identify the replacement - the spring alone or assembly.

4 user uploaded images

4 Replies

Tom from SWISCO

Sep 2, 2020 3:38 pm

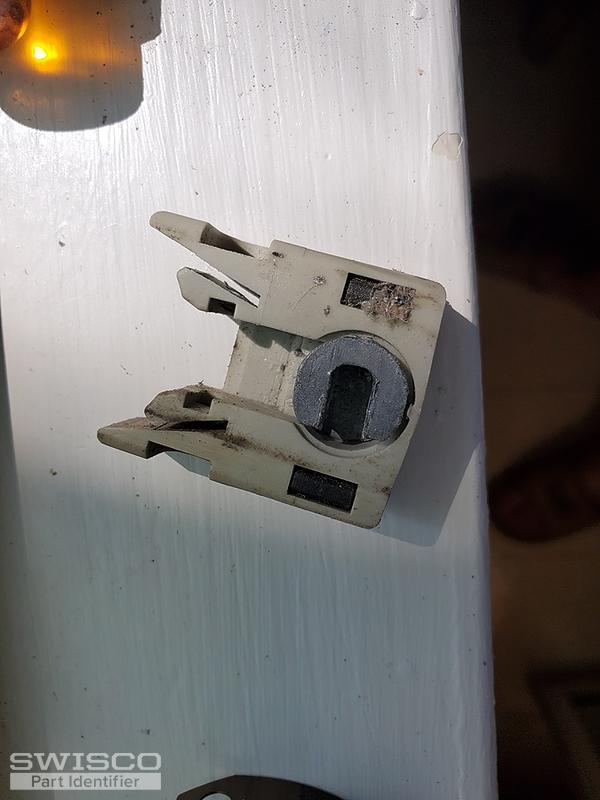

Your pivot shoe looks like a match for our 15-177, which is compatible with the Series 152 coil spring. Look this part over and let me know if you had any questions.

Home Owner from New Providence, NJ

Sep 2, 2020 6:28 pm

How do I determine what spring number/strength I need? 8 lb or 9 lb? Do I weigh the sash and divide by 2?

Tom from SWISCO

Sep 3, 2020 8:57 am

If there is no stamp on the old spring, then you will need to weigh your sash on a scale and divide that by the number of springs used to support it, yes.
