Broken balancer shoe

Question

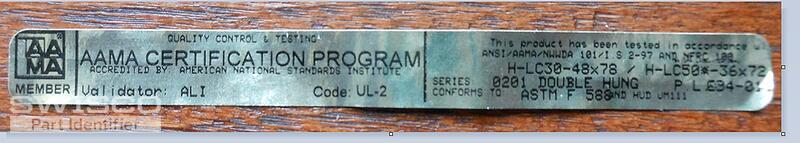

I have a broken balancer shoe on the bottom pane of double tilt windows.  It's a coil type balancer like shown in the video.  I would need to complete sets to redo both sides of the bottom window so they would match.  I do not know who makes the windows but I included a picture of the label attached to one of the windows.  They were all installed together by the same company and are all the same windows.

Jasmine · Accepted Answer

Your balance shoe appears to be a match for the 15-177 Coil Balance Shoe. I'm quite confident this is the correct replacement but be sure to review and compare the specifications.

Alternate image for 15-177

The springs compatible with this shoe are the Series 152 Coil Balances. They are attached using the 33-072 screw. To determine the correct coil weight option, you'll need to look for a stamp/marking on the metal.

If you can reuse the covers, that would be suggested. Your exact covers aren't available any longer but the 15-143 Coil Bushing, 15-144 Coil Bushing Cap, and 15-145 Coil Support Barrel will work, in the event that you cannot reuse them.
