Broken block and tackle

Question

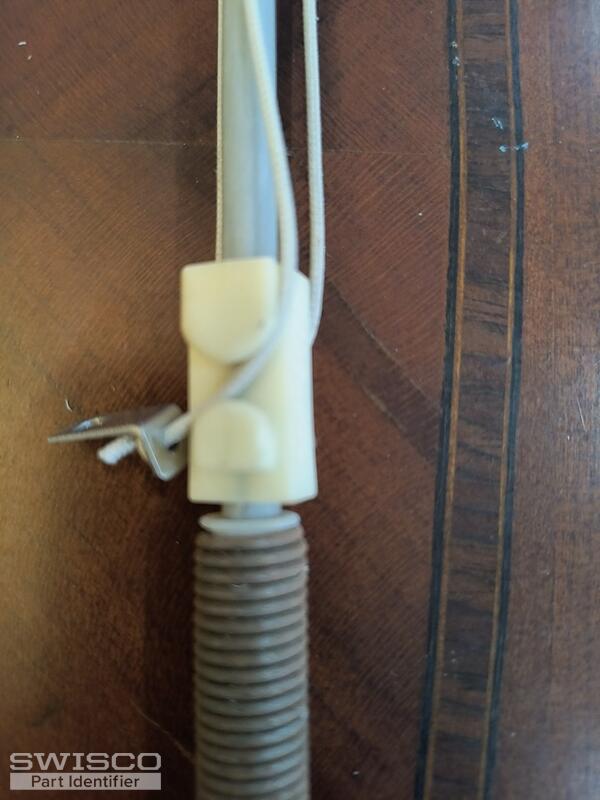

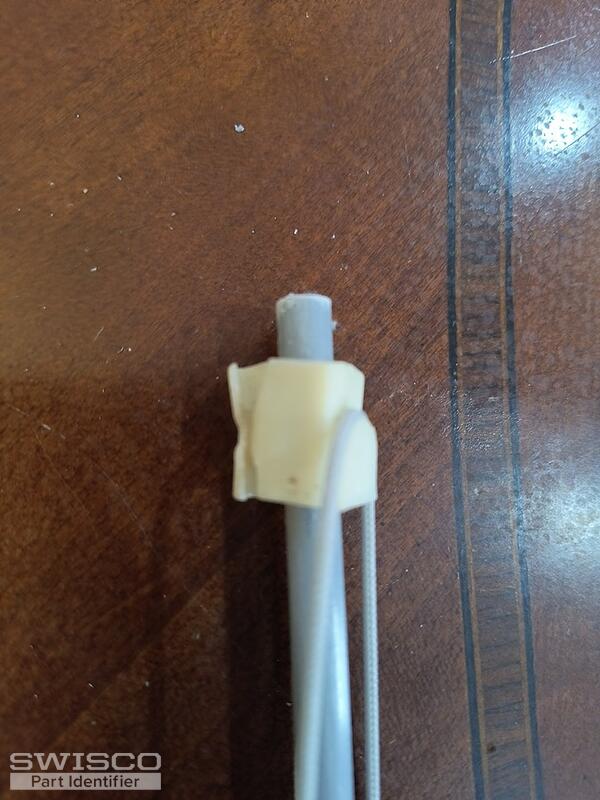

I have several broken balances that I need to replace.
The window weighs about 18lbs and the assembly is about 27 1/4 inch long. The black anchor for the bottom of the window is 1 1/2 inch long. The pin in the window is 3 inches

I think the channel replacement is s795, can you confirm?

Casey · Accepted Answer

Hello,

You are correct that we recommend the S795 to replace the old-style crossbow balance shown in your photos as long as your spring has a diameter of 1/2". Take a look at the video below that will walk you through the conversion process. Thanks for posting!
