Broken cams?

A quick learner from Cleveland, ohio says:

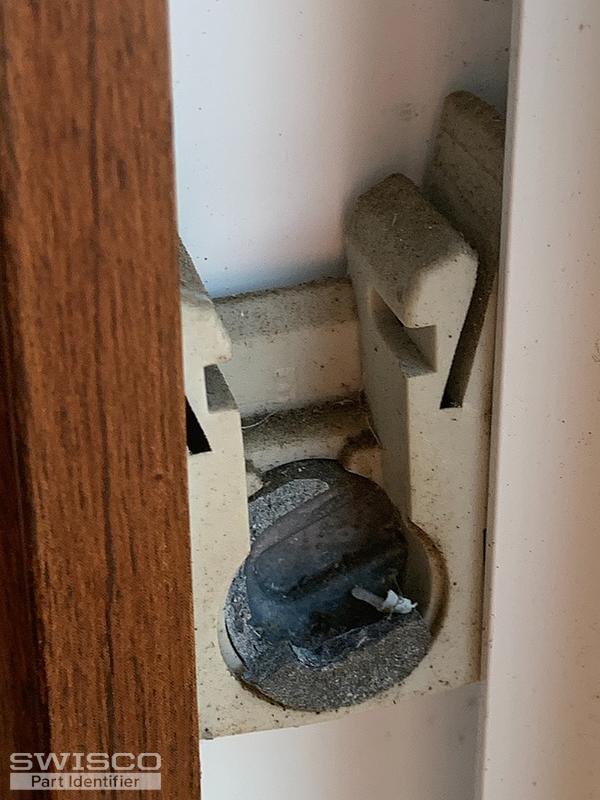

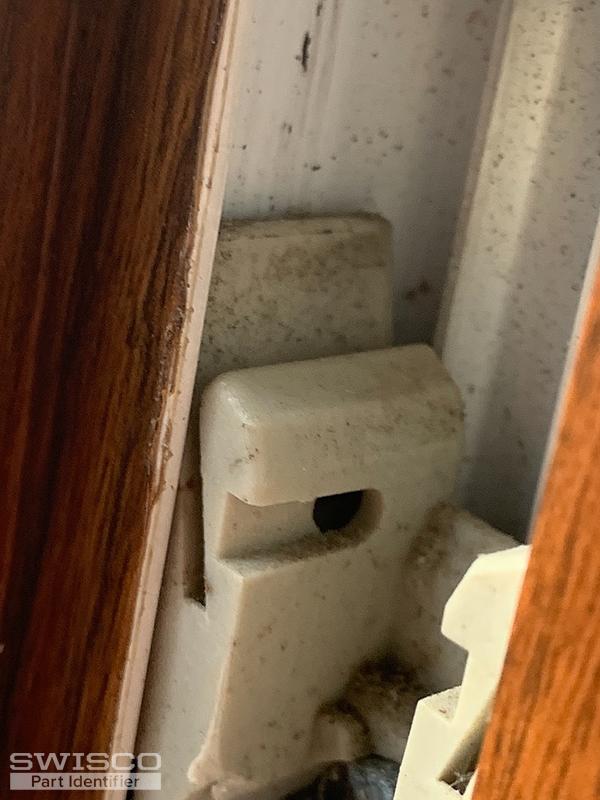

Windows are 12+ years old and went to remove lower sash. When they came out, I had metal pieces on the ground. I don't know who the manufacture is. Thanks for any help you can provide.

Dave
Thumbnail of the uploaded file named 2EFA4FFD-6668-4AED-8E0F-1A4CD9CCB55F.jpeg
Thumbnail of the uploaded file named 86697C8C-A7EB-4F37-B025-9D037BAFD9E1.jpeg
Thumbnail of the uploaded file named 75A13359-D220-4F52-A204-CD4FFAC84937.jpeg
Thumbnail of the uploaded file named E3F854FC-EAD6-4A2F-A8CE-FFE13C5256F2.jpeg
Thumbnail of the uploaded file named 92DB61EA-D1E1-45D3-8D89-9F8AC01BB6F8.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Looks like you just need a new pivot shoe. Check out our 15-177, I think this is just what you were looking for.

A quick learner from Cleveland, ohio says:
Thank you. Just placed an order for 12 of them. Will they come with remove/replace instructions?

Thanks Again.

Dave
Profile picture of Tom
Tom from SWISCO responded:

These shoes do not come with instructions, no, but we have video instructions on our site. I recommend watching them if you aren't familiar with this kind of project.

A quick learner from Cleveland, ohio says:
Worked perfectly and I'm back in business. Video's were helpful in the remove / replace process

Thanks again!
Profile picture of Tom
Tom from SWISCO responded:

Glad to hear it! If you ever need anything in the future, you know where to find us.
