Broken coil balance and pivot shoe
Quick Learner from Forestville, Ny
May 18, 2022 4:43 pm
I would like some help finding these parts. I have a window that won't stay up at all with a double coil system. Half of system is still attached to the pivot shoe. Please see pics. Also I have a broken shoe on another window that I removed with double coil, pic attached for that also. The coil width is 1/2". I couldn't find any markings on the coil to identify it. Please help and what other info do you need?
3 user uploaded images
3 Replies
Quick Learner from Forestville , NY
May 18, 2022 5:10 pm

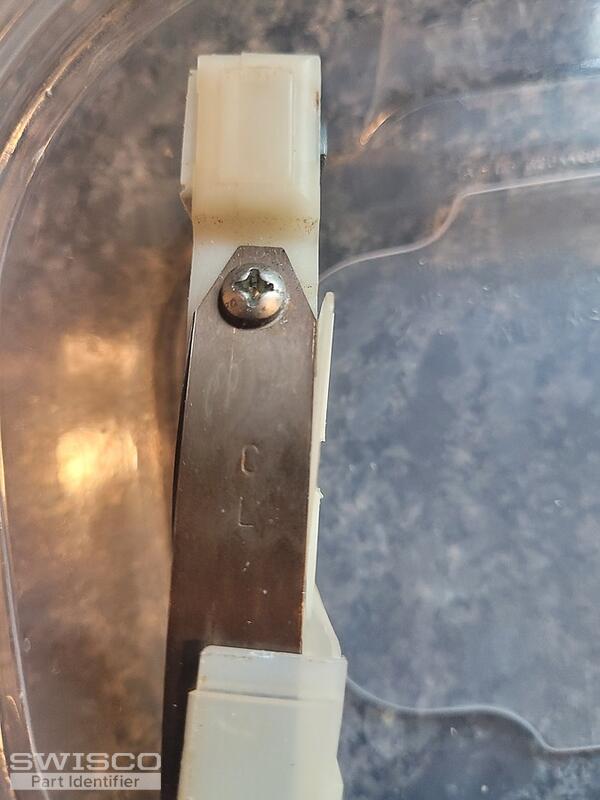

Wanted to add the 1 1/4" measurement of the pivot shoe and the weight of windows is 17 lbs. It looks like the S140 series would work. I could not find any weight marks or codes. The double coil system I removed has a CL stamped on it
1 user uploaded image
Emily from SWISCO
May 20, 2022 3:18 pm
Hello!
This isn't the S140, you actually have our 15-175 which uses the Series 152 coil springs. Since your sash weighs 17 pounds, you can use two S152-4 4 pound coil springs on both sides of the window. This will total 16 pounds of overall support. So long as the spring weights are within a pound of your sash's actual weight, this setup should work for you.
