Broken cover to spring mechanism on right hand side?.

Quick Learner from Maine
Sep 25, 2022 10:58 am

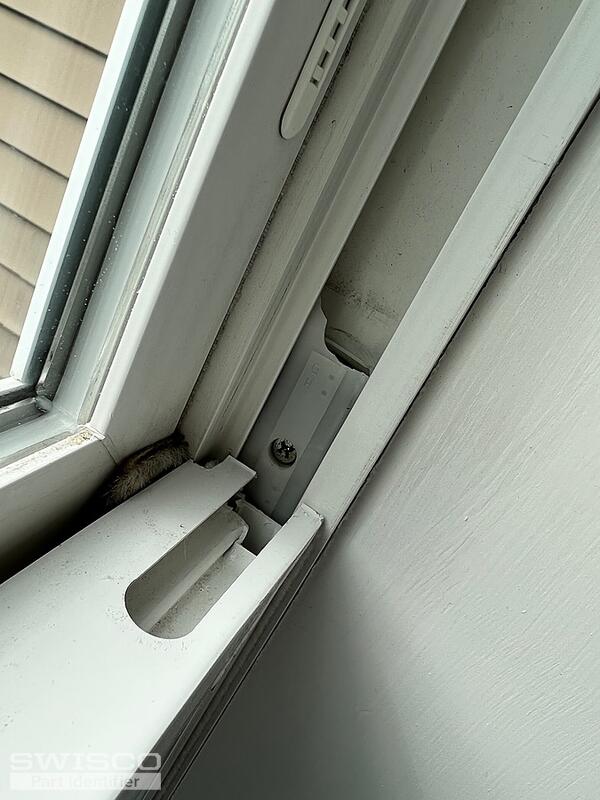

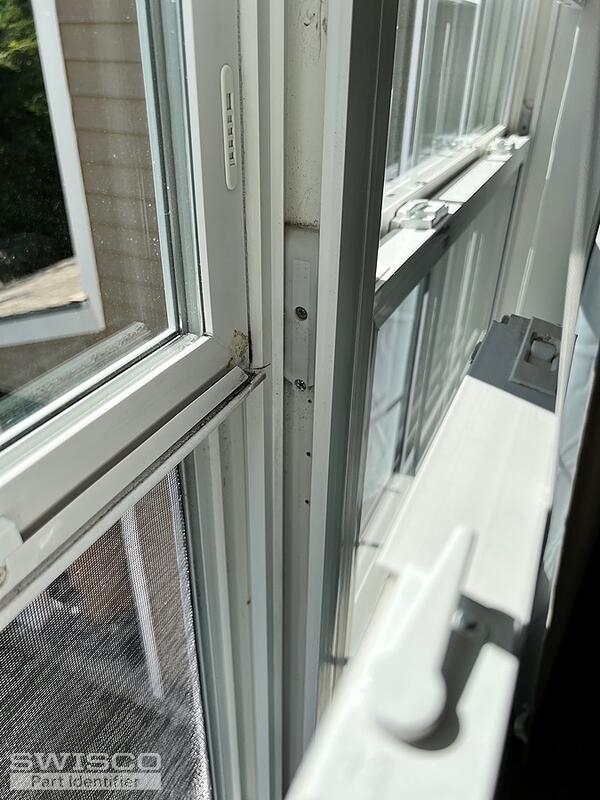

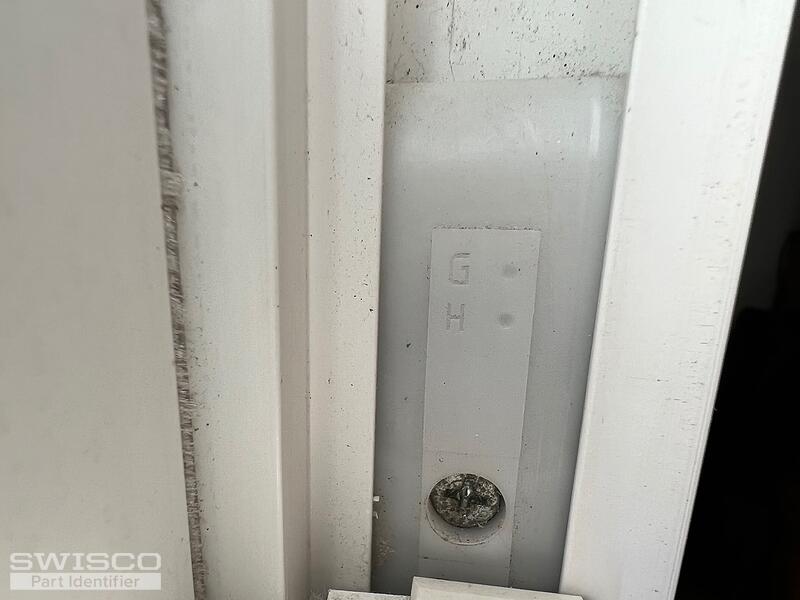

I replaced the right tilt window latch but failed to notice the cover of the spring mechanism preventing the window from closing was broken. The clip ended up broken, since the case is designed to gradually move the clip in as it goes over the spring mechanism. When trying to remove it, it slid down the side of the window, due to the spring. One picture that I uploaded is an undamaged part, the second, the damaged one before I took the screws out. The only letters that I can see are G and H, which can be seen in 3rd picture.
6E82FD8E-8C1D-47EB-8966-65D422D351F3 09C7C1C9-DFD2-4DB6-81C0-041CF7E295ED B5CBE15E-40EC-4501-A925-7DA42F8D2C36
3 user uploaded images
1 Replies
Tom
Tom from SWISCO
Sep 28, 2022 11:16 am
SWISCO
EXPERT

Hello! I'm sorry to hear you're having trouble with this project. The cover in your photos looks very similar to our 15-204, which is designed to be used with 3/8" springs like our Series 165. You should check to ensure that your spring is the right size, though, just to be safe. If you have any doubts, I'd be happy to look it over for you. Seeing a clear photo of the pivot shoe would allow me to confirm if the 15-204 is worth using or if we have a better option.
