Broken lock

Start a new Discussion

Home Owner from

Sep 7, 2024 12:54 pm

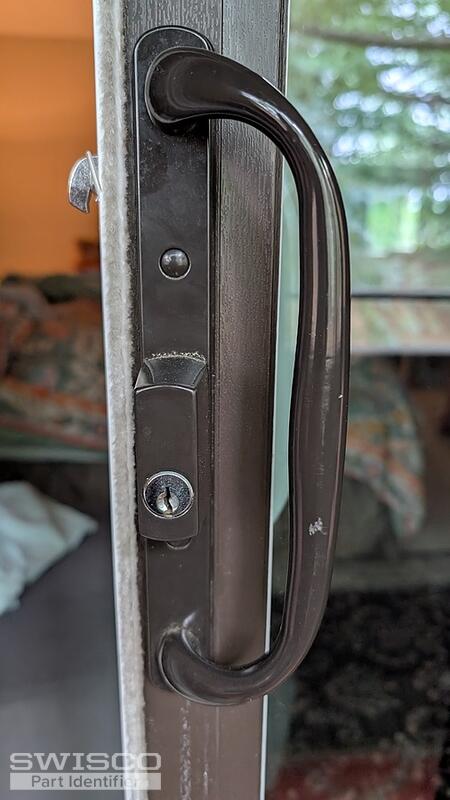

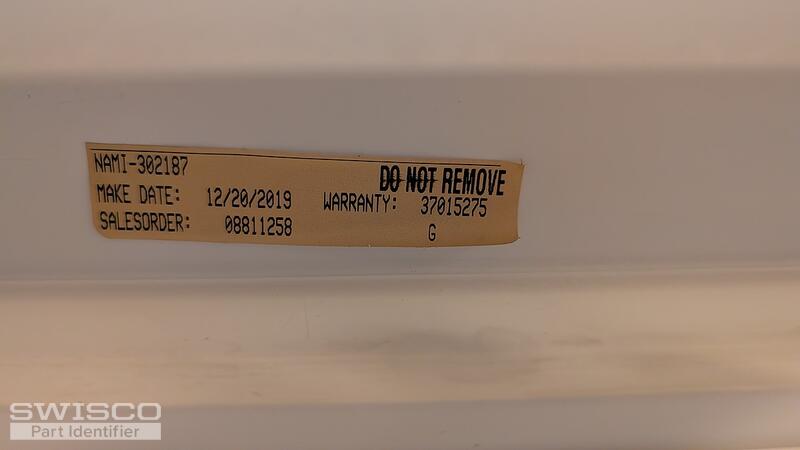

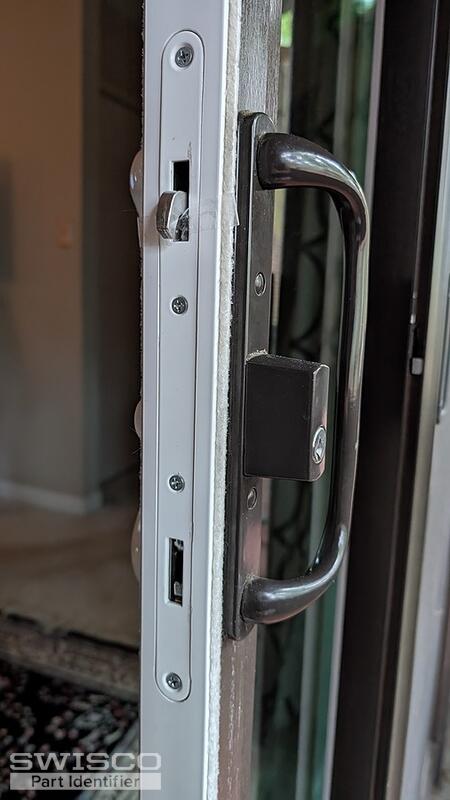

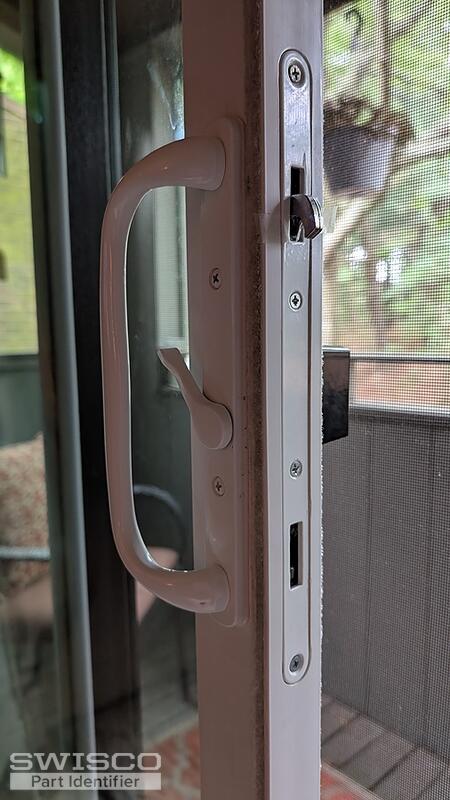

Hello I need to fix/replace this lock and I'm not sure which part to order. Thank you so much

4 user uploaded images

8 Replies

Bob from SWISCO

Sep 7, 2024 4:20 pm

Hello there. This looks like the 82-265 Mortise Lock, which works with the 82-249 Keeper. For the handle set, see the 82-086 or 82-087. Let me know if you have any questions.

Home Owner from

Sep 9, 2024 5:36 pm

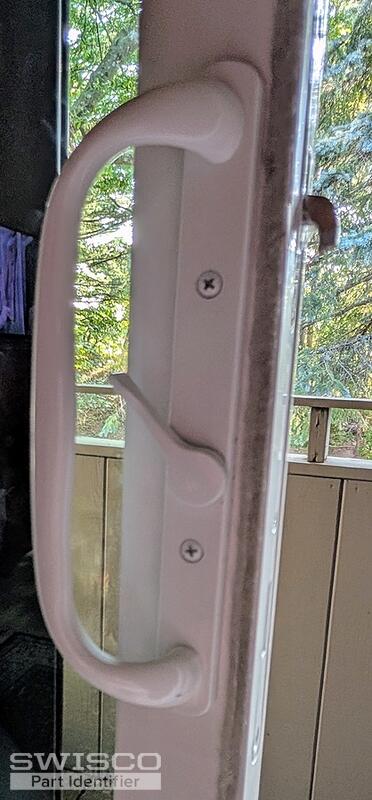

Thank you! My handle is slightly longer ..
9 1/2 top to bottom and four inches between the two screws with different style handle.

Can you offer another suggestion?

1 user uploaded image

Bob from SWISCO

Sep 11, 2024 9:27 am

I'm sorry to say that we don't sell anything in that precise size. Overall length doesn't really matter, to tell the truth, but hole spacing is essential and I can't find anything at 4".

Can you verify that? That's a very uncommon size. Make sure that you're only measuring between the center of each hole, not their edges.

Home Owner from

Sep 11, 2024 5:01 pm

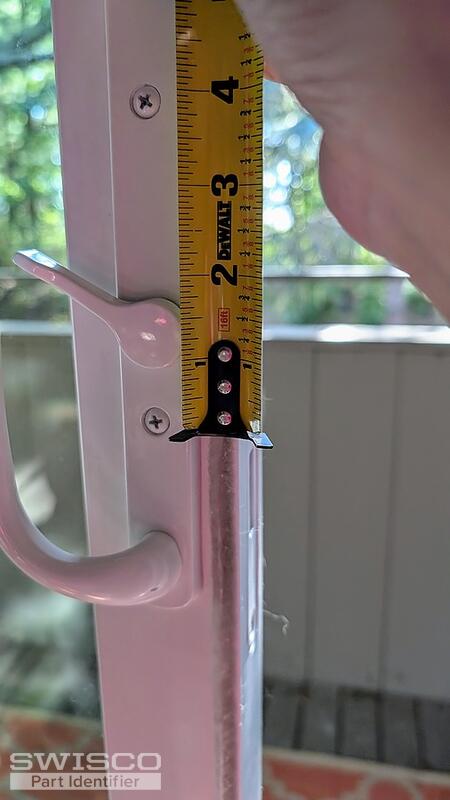

Thank you. I've attached a photo and unless I've completely lost my mind (not saying I haven't!) this looks like 4 inches to me.

Let me know what you think - thank you!

1 user uploaded image

Bob from SWISCO

Sep 12, 2024 9:59 am

It's very difficult to gauge this kind of size from a photo of a tape measure, however looking at your photo the center to center spacing does look under 4".

The final decision will have to be yours. What I can tell you with confidence is that there is no handle set in this style that I'm aware of that has a 4" hole center spacing, however 3-15/16" is fairly common. The hardware I've recommended remains our top suggestion.

Home Owner from

Sep 12, 2024 10:45 am

Thanks so much Bob appreciate your patience with my questions. Take care

Bob from SWISCO

Sep 12, 2024 11:35 am

Anytime, best of luck with the rest of the project and please don't hesitate to reach out if you had any questions.
