Broken lock set

Contractor from Washington MI.

Jul 24, 2020 10:46 am

Unable to lock my sliding doors the flat shaft on the keyed cylinder is broken on 2 of my 3 doors, the slot that the shaft goes into on the knob side is also broken and the engaging pin on the other lockset does not spring forward the engage into the metal latch cleats on the jamb side. Dennis thanks

2 user uploaded images

4 Replies

Casey from SWISCO

Jul 27, 2020 3:44 pm

Hello,

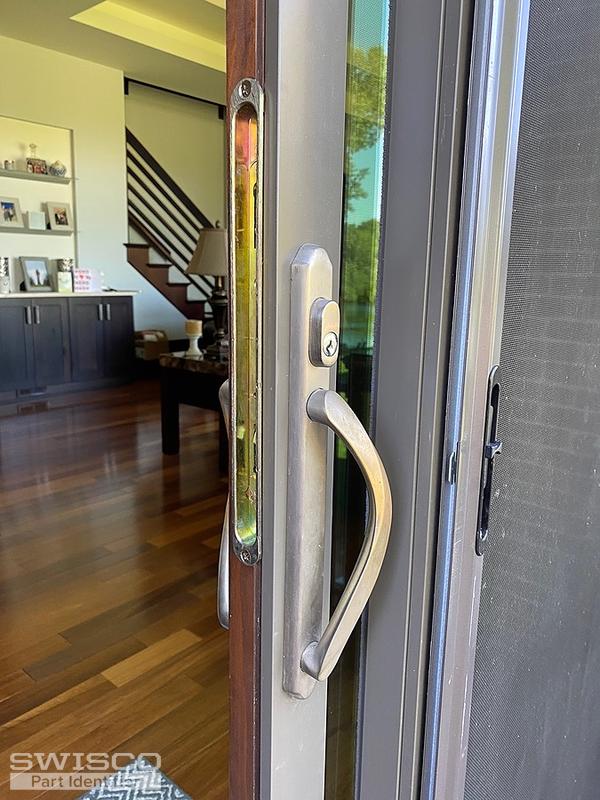

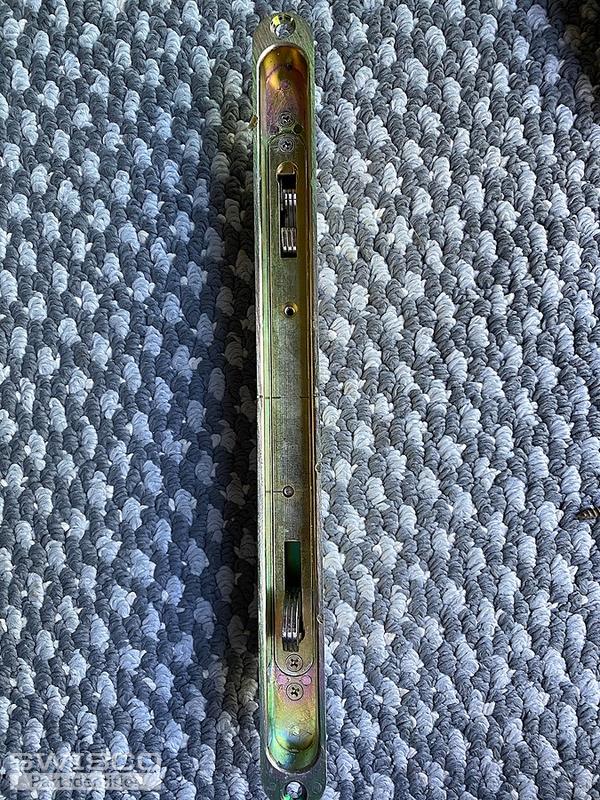

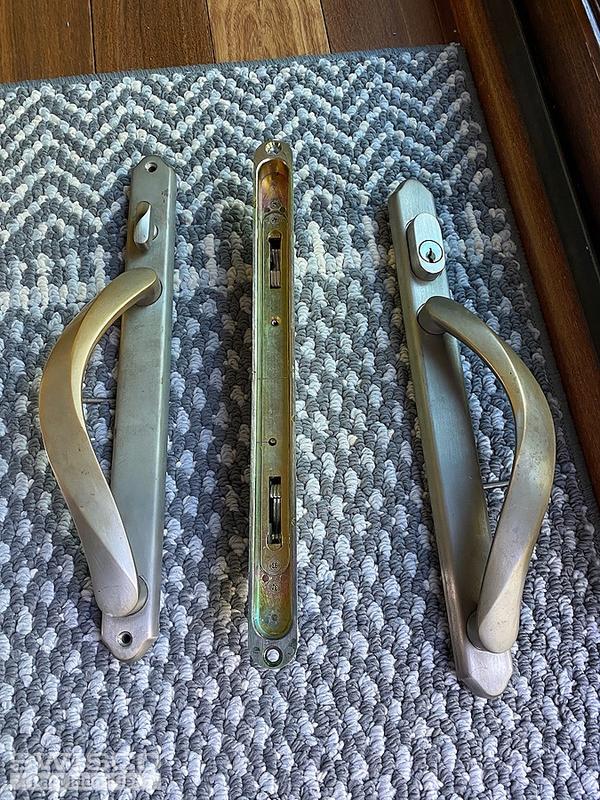

Can you show us the full handle set that your key lock connects to, as well as the front of your mortise lock where the hooks that lock the door extend from? That information and dimensions will help us narrow down your replacement options. Thank you!

Contractor from Washington MI.

Aug 17, 2020 4:14 pm

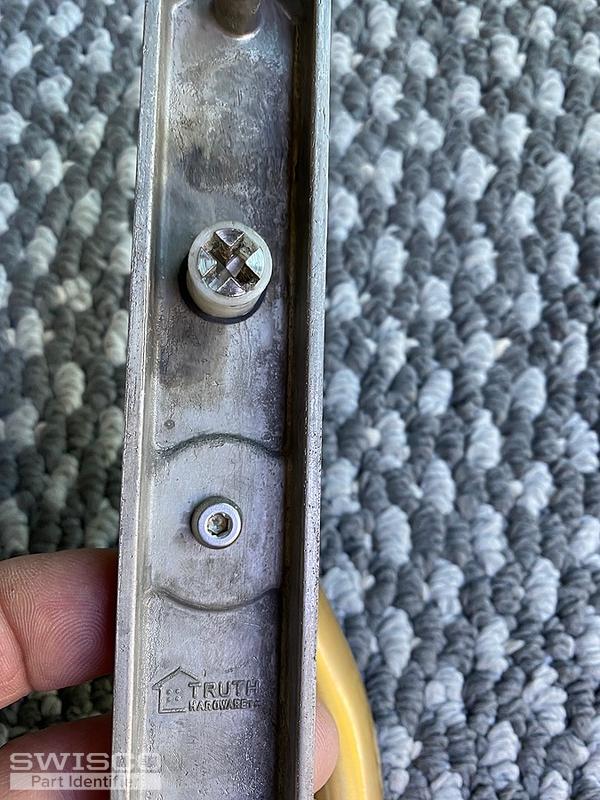

image 0195 the picture I sent the cross receiver where the shaft would seat into is broken

the shaft from the keyed cylinder is also broken that is the picture sent originally. the total length of the face of the mortice lockset is 12 1/2", the spacing from where the latches come out is 6 1/2" center to center. To recap. I need to replace 2 shafts, 1 shaft receiver, and a way to make the engaging pin work.

Thanks

Dennis

5 user uploaded images

Casey from SWISCO

Aug 18, 2020 9:53 am

Thank you for the additional photos. Your mortise lock appears to be a match to our 82-260 lock, which is compatible with our 82-249 keeper. This mortise lock is also compatible with our 82-310 key lock but I'm not positive it will fit in your existing handle set, which we do not carry a replacement for. Take a look and see if you could use these parts for your repair. Thank you!
