Broken parts

Handy Person from Woonsocket r.i.

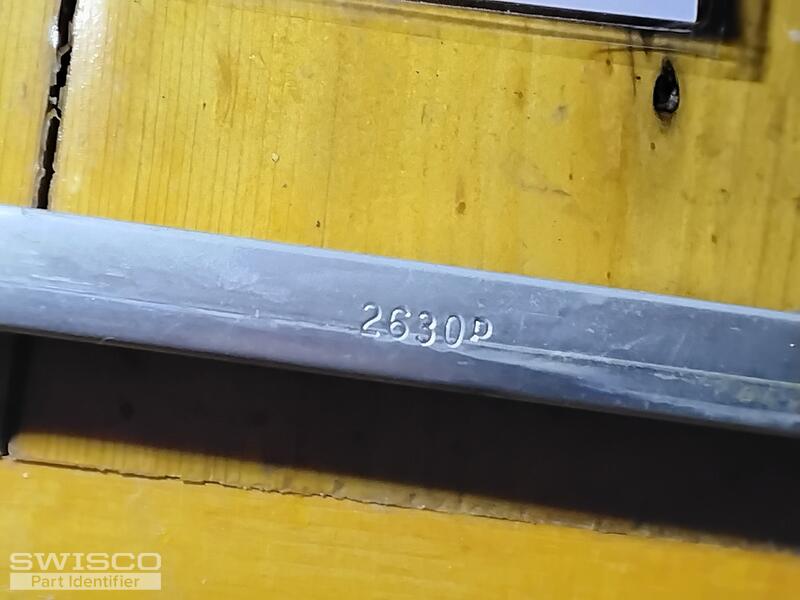

2630 is stamped on part
1 user uploaded image
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for your post! There is a chance we may be able to provide you with the replacement balances you need but I cannot use the stamp to identify them. This is used to determine the weight range the balances can support but it does not tells us the series, unfortunately.

Please provide clear photos of the top and bottom attachments on the balance as well as any that could possibly be left behind in the window channel.

Feel free to reach out with any questions you might have.

Handy Person from Woonsocket r.i.

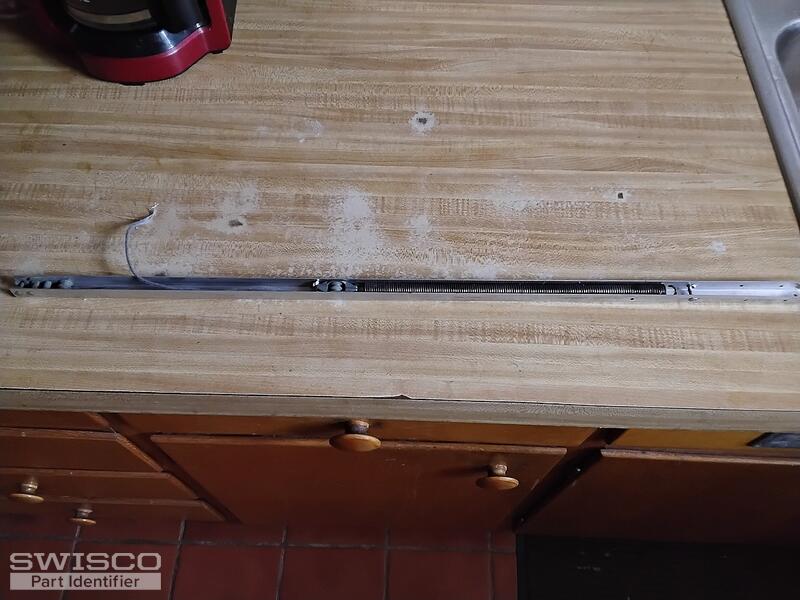

Here are pictures of the broken parts. 27 inch
4 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for the additional photos. Your balance is a custom assembly with a 62-105 Heavy Duty Point Hook attached to the bottom of it. I'm happy to provide you with an order link for the replacements but I'll need to know the exact sash weight to confirm the correct stamp. Yours does not match the stamps we have on our balances.

I'll also need to know the number of balances you would like to purchase; the quantity minimum is (2) for custom assemblies.

Alternate image for 62-105
Alternate image for 62-105

The pivot shoe used with your balance appears to be the 15-105. The plastic piece providing support to the hook is the 15-056 Pivot Retainer. Compare the dimensions from the shoe to confirm that it is the right replacement.

Open position 15-105
Open position 15-105

View of 15-105 in the Closed Position
View of 15-105 in the Closed Position

Alternate view of 15-105
Alternate view of 15-105
