Broken tilt window piece

Home Owner from Kernersville, NC

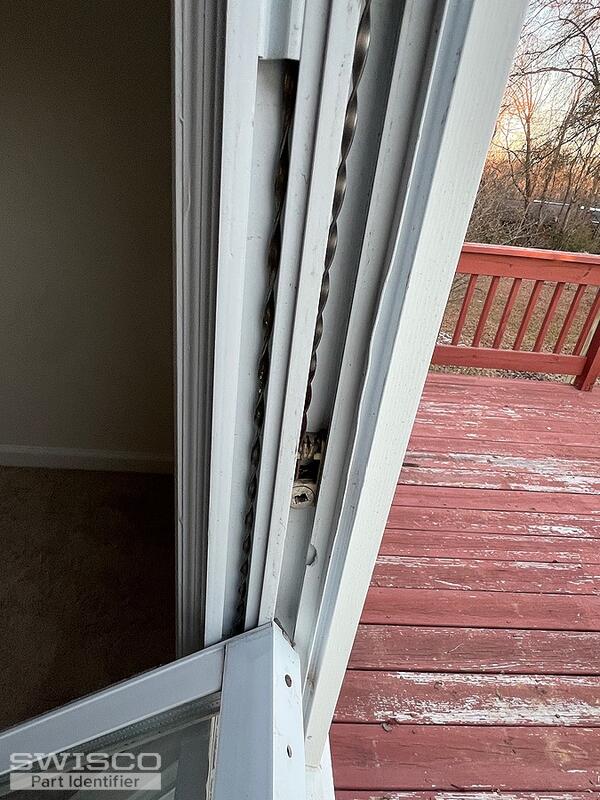

Hello, the window does not have any identifying markings anywhere on it. The plastic piece in the photo is broken, I took a picture of the other side to show you one that is not broken. Would you be able to help me identify this piece?
4 user uploaded images
2 Replies
Paul
Paul from SWISCO
SWISCO
Expert

Hello,

We can't be sure with the hardware still installed but the 15-046 pivot shoe would be a good place to start. You'll need to remove your shoe to confirm if the 1-1/4" width and 1/2" depth match your measurements. Your red tip spiral balance resembles the 5/8" diameter Series 500. Review the related guides to help you through the replacement process. Thanks for posting.

Alternate image for 15-046
Alternate image for 15-046
