Broken pivot bars and pivot shoes : SWISCO.com

Contractor from Deforest, WI

Aug 15, 2025 9:55 am

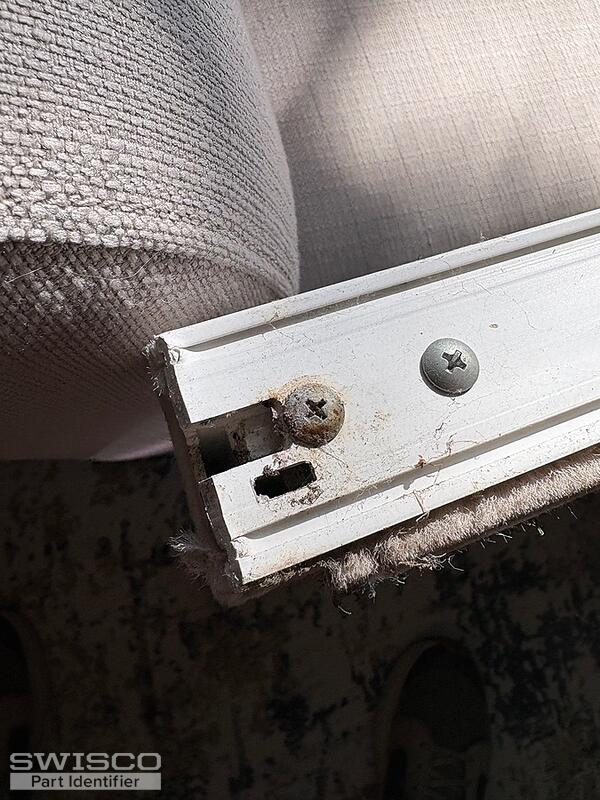

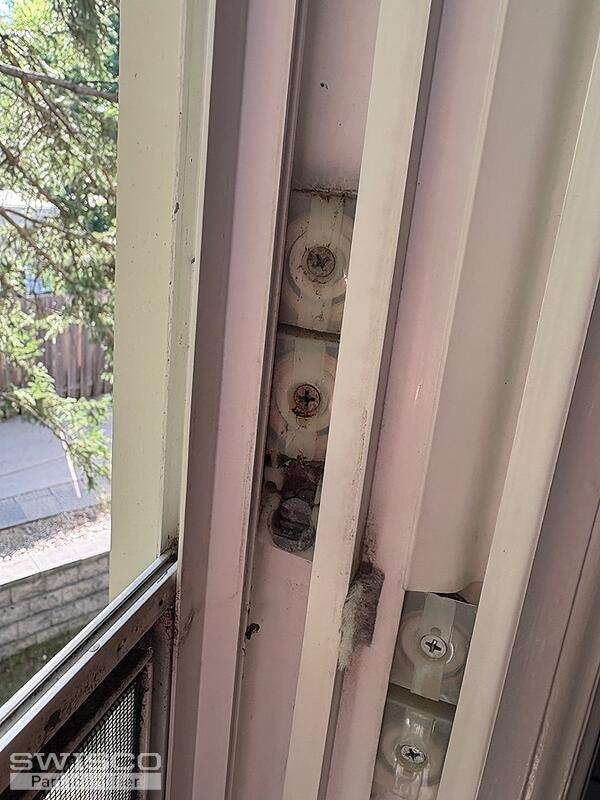

I have 8 of these pivot bars and shoe coils that broke. I think I found the right replacements but I want to be sure.

5 user uploaded images

4 Replies

Emily from SWISCO

Aug 20, 2025 12:42 pm

Thank you for reaching out to us. Your old pivot shoe is no longer available, but the 15-177 can work for you. The Series 152 coil springs are sold separately.

We can't be certain of the pivot bar since it's damaged, but take a look at the 26-226. Review the specifications and see if they match your repair needs.

End view of the 26-226 pivot bar

Contractor from Deforest, WI

Aug 20, 2025 7:11 pm

Thank you so much. I think the pivot bar is correct. Can I replace just the shoes or do I have to replace the coils as well?

Emily from SWISCO

Aug 21, 2025 8:09 am

You can replace just the pivot shoe if that's all that's broken. Your old coil springs will be compatible with our pivot shoe as well.
