Broken pivot shoe

Handy Person from Fairport New York

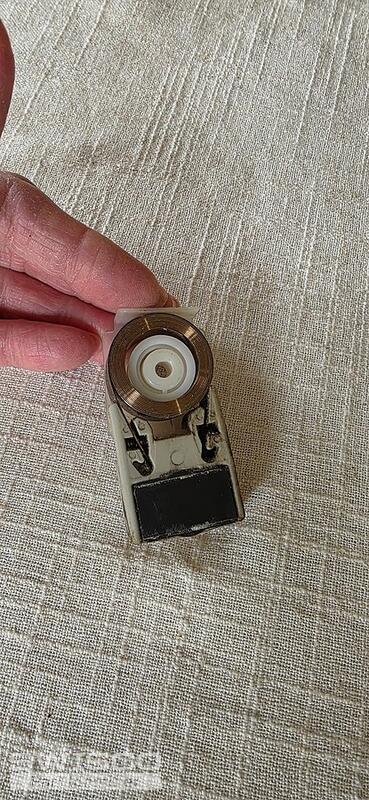

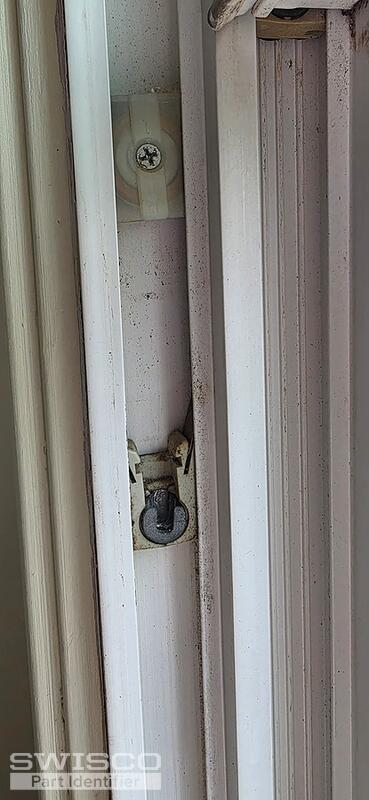

Hi - I'm hoping you can help us determine which pivot shoe we need.  We have Alside Excalibur windows which were installed in 2005.  Pivot shoe depth is 9/16" and it is 1 1/4" wide.  There are no markings or numbers on our part.  We would also like to know which coil works with our pivot shoe.  Thank you for your help.

Bill

5 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

Your pivot shoe resembles the 15-177 below, which uses the S152 coil springs. For the coil spring covers, see the 15-143, 15-144, 15-145. Thanks for posting!

Alternate image for 15-177
Alternate image for 15-177

Handy Person from Fairport New York
Thank you very much Casey! We ordered them today from you!
Casey
Casey from SWISCO
SWISCO
Expert

Great! We'll be here if you need anything else.
