Broken plastic clips on window balance

A handy person from Cleveland, GA says:

February 21, 2021

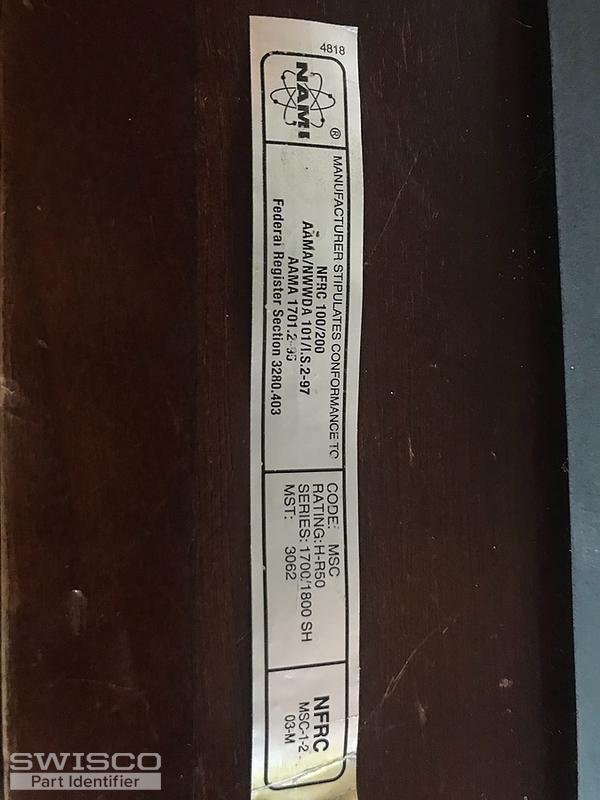

Numbers on spring cover is 28C BSI TH and on the busted clips D467490

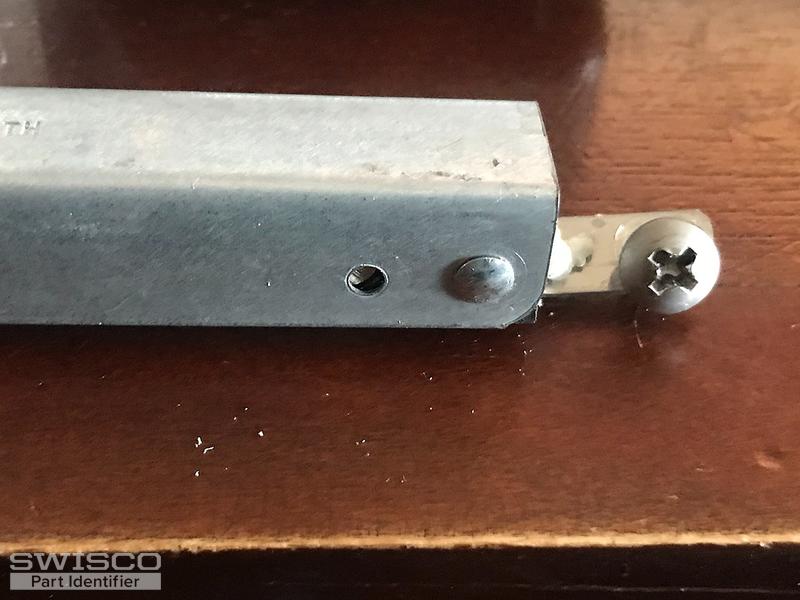

The plastic clips that connect to the metal spring broke off due to East to West sun exposure. Do I need a whole new kit or can I just replace the busted plastic part.

Thumbnail of the uploaded file named IMG_6785.JPG

Thumbnail of the uploaded file named IMG_6790.JPG

Thumbnail of the uploaded file named IMG_6791.JPG

Thumbnail of the uploaded file named IMG_6793.JPG

Thumbnail of the uploaded file named IMG_6792.JPG

Casey from SWISCO responded:

February 23, 2021

Hello,

Your balance looks like our S795 channel balance that comes with our 15-195 shoe but if the t-lock shoe in your photo has an open metal cam and measures 1-1/4" wide, you should be able to replace it with our 15-195B. Thank you!

28" Series 795 Channel Balance

S795-28

$13.61

1-1/4" T-Lock Balance Shoe, Closed Cam

15-195

$1.92

1-1/4" T-Lock Balance Shoe, Open Cam

15-195B

$1.97
