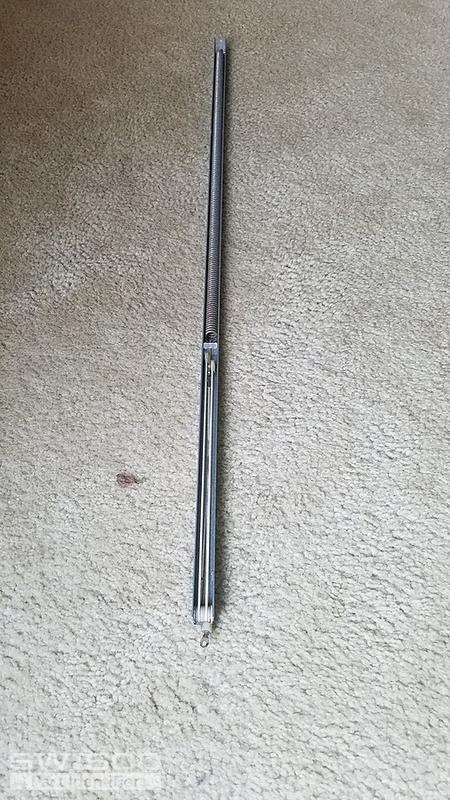

No idea on who manufacture these. Wonder if you guys can help. The channel balancers themselves look ok but bot bottom feet were destroyed.

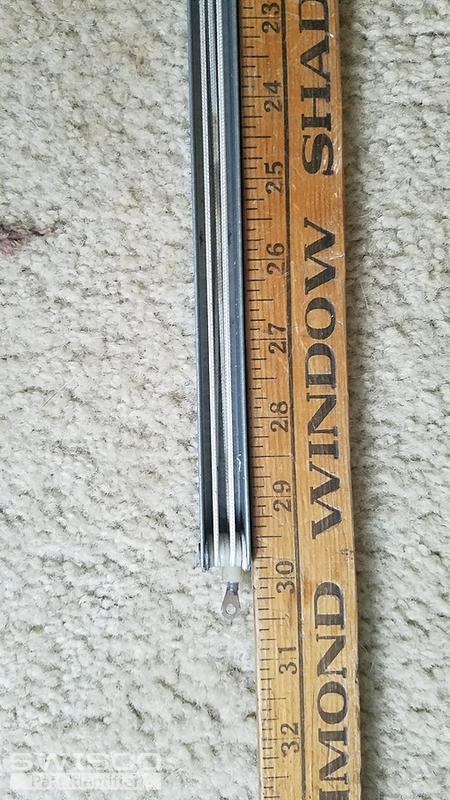

Balancers are marked-29. 5. E07S CMC
|
Tom from SWISCO responded:
June 13, 2019
We can definitely help with this hardware. Starting with your balance, which I recognize right away, I'd look at our S765-30. I think you'll agree that the configuration is very similar to yours but look it over an d let me know if you agree. This balance is meant to work with the 15-046 pivot shoe, though I'm not sure if this is what you have. Look over our dimensions and see if they match yours. If not, I'll need you to get an undamaged pivot shoe, show me a photo of that, and tell me how its dimensions compare to our 15-046. That will help us find a better match. I cannot identify the pivot bar from your second photo since it looks like it was installed backwards. I'm not sure how they expected that to fit in the pivot shoe that way! If you can remove it from the window, I'm confident that I can get a good match. Finally, for the tilt latch in your first photo, start by looking at our 26-243 and 26-244. Carefully review our dimensions to confirm that everything matches up. |
