Broken shoe and pivot bar

Question

Hello,

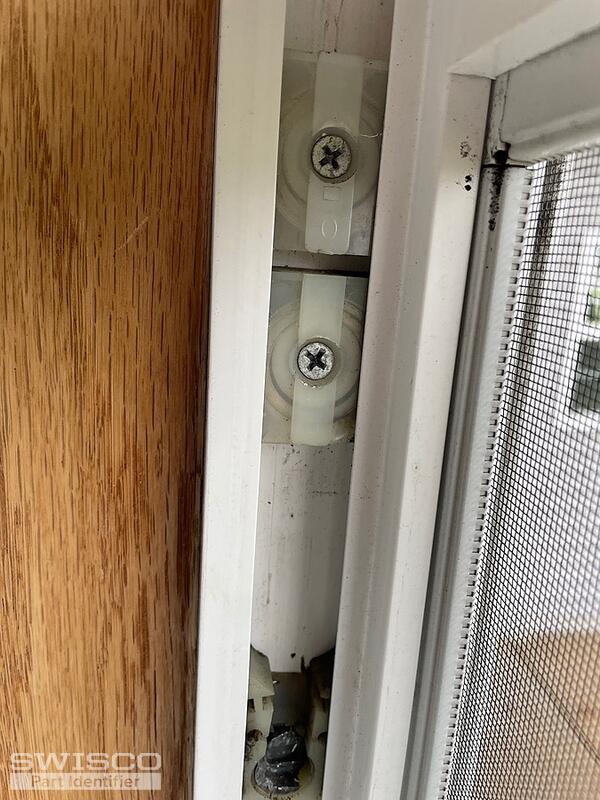

I have a few parts I'm looking for an Alside brand window. My windows are about 20 years. Would you happen to be to identify the parts in the pictures I included as well as have recommended replacements?
Thanks,
Russ

Lauren · Accepted Answer

Hello, thank you for posting,

Your original pivot shoe has been discontinued, but we recommend reviewing the 15-177 as a replacement option. Compare the dimensions below to confirm a good fit! If your original springs are in good shape, they will be compatible with the new shoe.

Alternate image for 15-177

If you need new springs, please review the Series 152 style. There should be a number stamped on each spring that will indicate the weight rating needed to support the window sash, but if no markings are present, please provide the weight of the sash to move forward.

Also see the 15-143 coil bushing, 15-144 bushing cap and 15-145 support barrel.

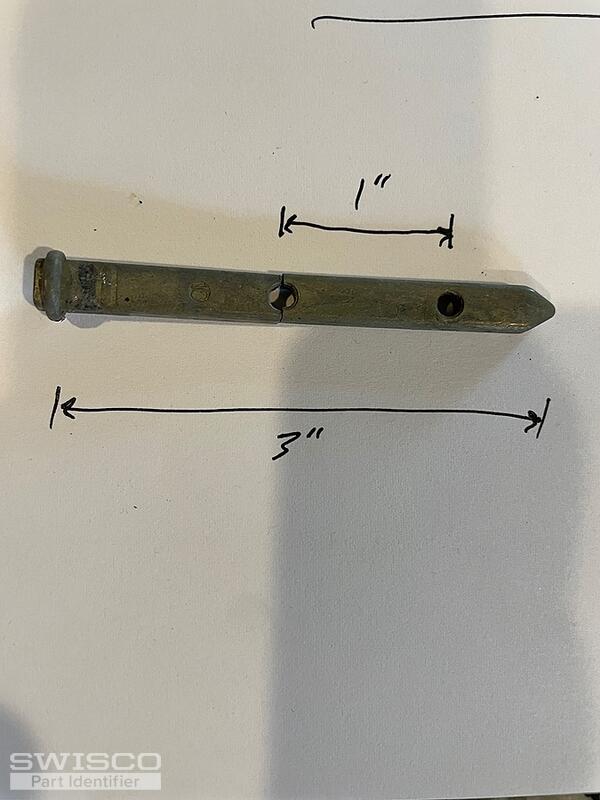

For the pivot bar, please review and compare the dimensions of the 26-226 style to confirm a good match. Take a look and let us know if you have any questions!

End view of the 26-226 pivot bar
