Broken window spring replacement part

Landlord from Troy, IL

Mar 16, 2018 9:57 am

The window that this part number belongs to will not stay up/open. Also, the window falls out of the track when being used. Any information about this part would be more then helpful.

6 Replies

Tom from SWISCO

Mar 19, 2018 3:21 pm

It sounds like a problem with the window balance. These are spring mechanisms on either side of the window. We can help, but we will need a picture of your original hardware in order to find a good match.

Landlord from Illinois

Mar 20, 2018 9:45 am

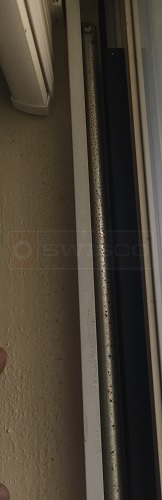

attached is a photo of the window track/springs. thank you again.

Tom from SWISCO

Mar 20, 2018 12:34 pm

Well, we're one step closer. It looks like you have a spiral balance, I'm just not sure which. I recommend looking at our Spiral Balance Homepage here and follow the steps shown to determine what replacement part you need.

Landlord from Illinois

Mar 21, 2018 10:11 am

5/8" Diameter
32" long tube
S200 Series?

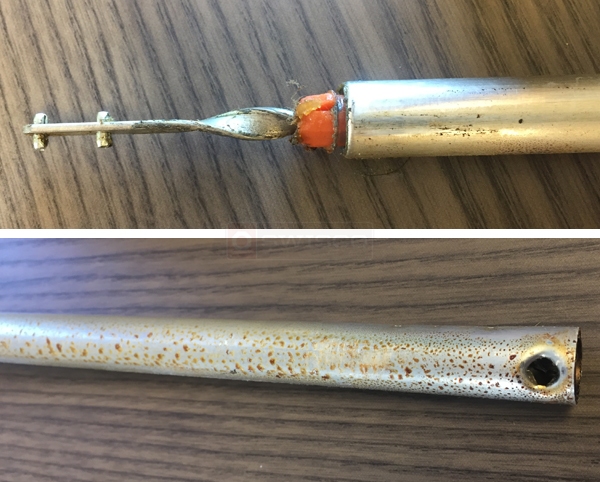

User submitted photos of a window balance.

Tom from SWISCO

Mar 23, 2018 11:36 am

Based on the photo, I would recommend our S600-32 with a red tip. If you don't have a charging tool, I would also recommend purchasing 75-006 charging tool.

Let me know what you think!
