CHANNEL BALANCE

Question

I  LOOKING  FOR  A  REPLACEMENT  CHANNEL  BALANCE

Casey · Accepted Answer

Hello,

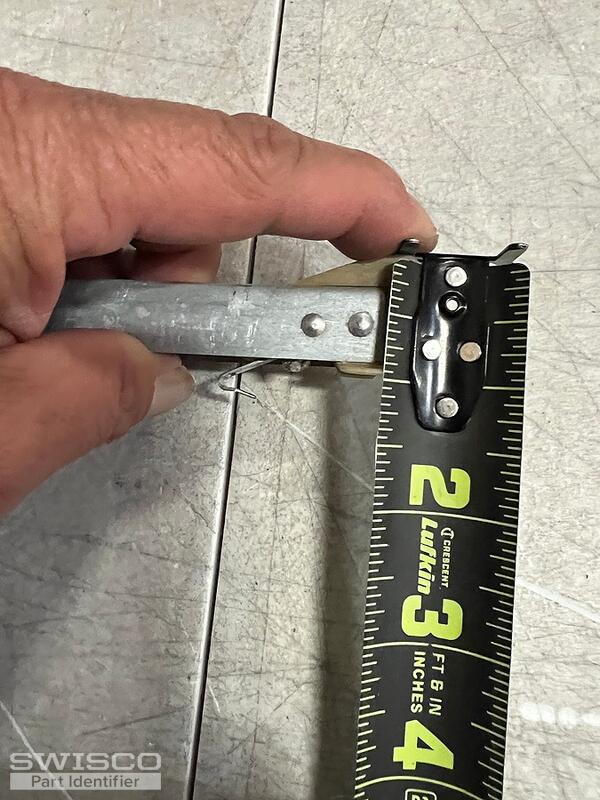

As long as both end fittings are winged, you could have either the S380-28 or S385-28 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. If the bottom shoe is non-winged, see the S395-28.

You'll also need 2750 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
