Cabell Window

2830 JL stamped on side
BSI
Sash weight ~24 lbs



Hello,
I believe that we can help but this would need to be a custom order due to the configuration of your balances. You have what appears to be our S770-29 with the bottom clip swapped out for a hook. We would use our 62-105 for your replacement balances. We'd also opt for the 29D stamp option, which carries 23 through 28 pounds.
Before we get started, we would also like to confirm how your balance attaches to the top of the window. It looks like yours uses two rivets, which presumably use an S-hook like our 19-029. Once we confirm this detail, as well as the number of balances you need, we'll be happy to send over an order link and price quote. Thank you!

A bracket just clamps down on top to hold it in place. The eyelet at the top will not affect it.
I weighed the windows and they are 20lbs not 24, so whatever you recommend.

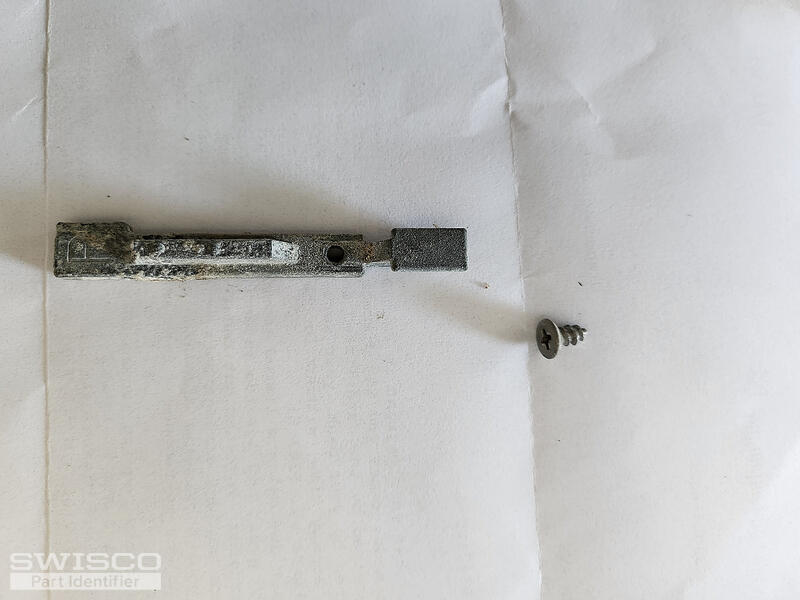

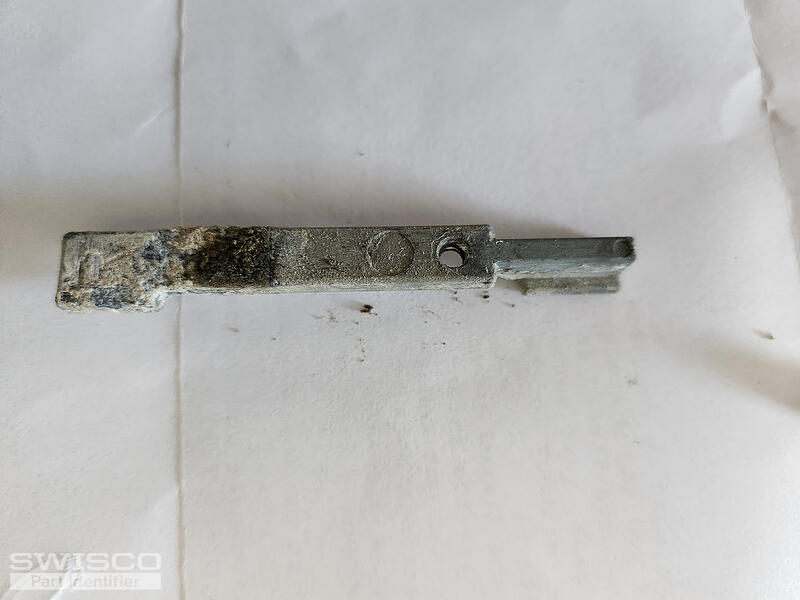

I also need some of these 3" pivot bars if you have them.
Thanks

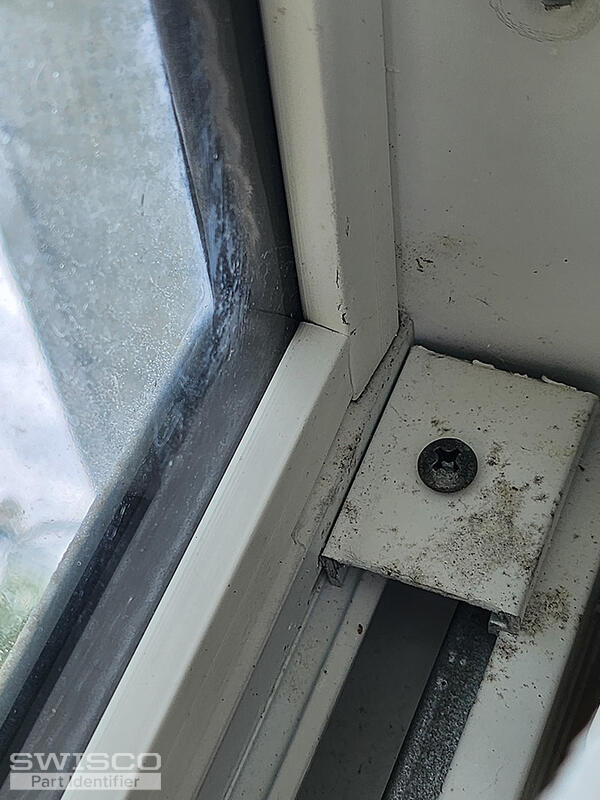

It sounds like you may be referring to the sash stop shown in the last photo from your original post. That wouldn't generally be used to install the balance. Since your balance has a rivet at the top. it should use an s-clip like the 19-029 or 19-030. In any case, we can make replacement balances with the same rivet at the top as shown in your photos but we will need to confirm the number of balances you'd like to purchase to get started. Also please note that your balances would require 29C strength options to support a 20-pound sash.
As for your pivot bar, I'm afraid we don't have an exact replacement. However, take a look at our 26-056 and see if this might work for your application.
