Caldwell 25-5 CS Winged Balance

Start a new Discussion

Home Owner from Kelso, WA

Apr 8, 2024 8:54 pm

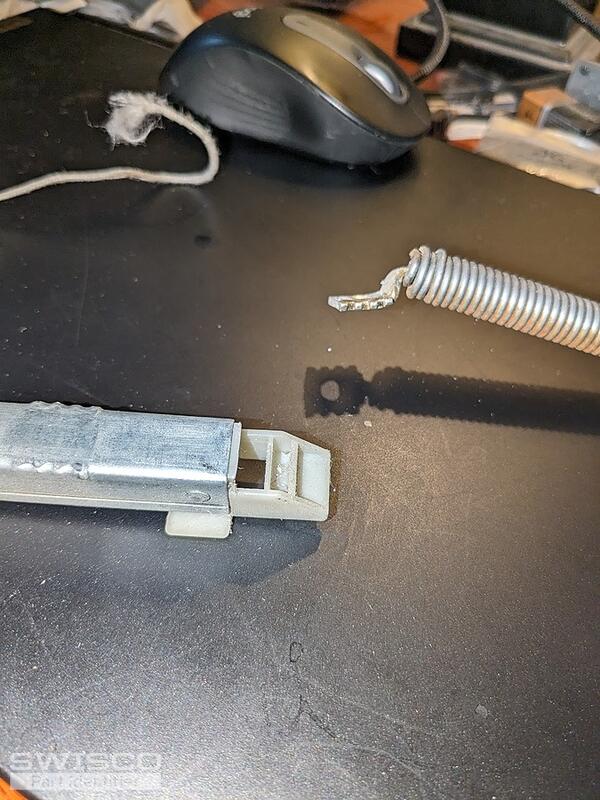

26" length, 1/2" width, winged.
Stamped: "25 5 CS Caldwell"

Thank you!

4 user uploaded images

4 Replies

Jasmine from SWISCO

Apr 9, 2024 12:40 pm

Thanks for posting! Your channel balance reminds me of either the S380-26 with a 1" shoe or the S385-26 with a 1-3/32" shoe. To determine which series you have, you'll need to confirm the depth of your bottom shoe.

Since your balance has a 25 5 stamp, you can select the 2550 stamp option.

Comparison of the S378, S380 and S385 balance shoes.

Home Owner from Kelso, WA

Apr 11, 2024 6:47 pm

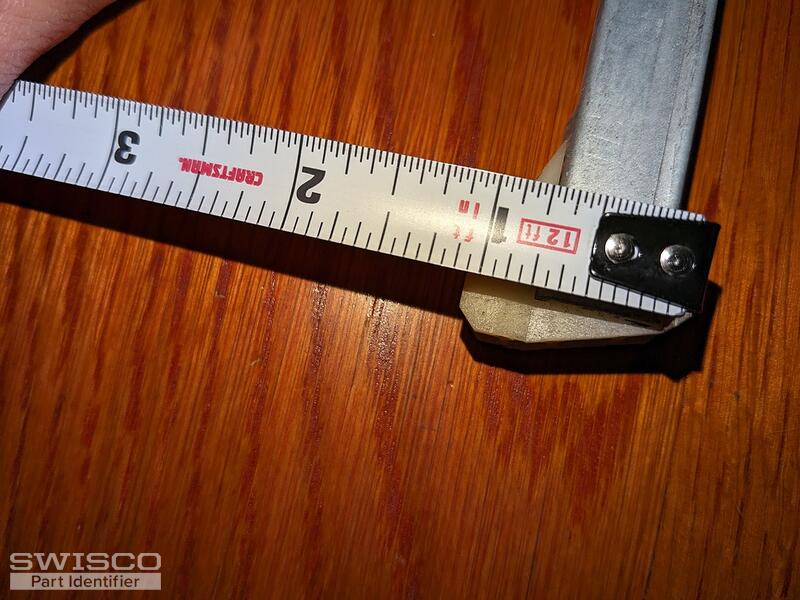

Looks like 1-3/32. I'll order a couple of the S385-26 w/2550 stamp and see how it fits. If it works, I'll order replacements for the rest of my windows.

Thanks for your expertise!

-Randy

1 user uploaded image

Jasmine from SWISCO

Apr 12, 2024 9:25 am

Hi Randy,

It was my pleasure to assist. Please don't hesitate to reach out with any other hardware repair questions.

Have a great weekend!
