Home Owner from Burlingame, California

Mar 26, 2025 6:47 pm

Marking 20 4 JJ CALDWELLOne side broke so I'm looking to replace both sides.

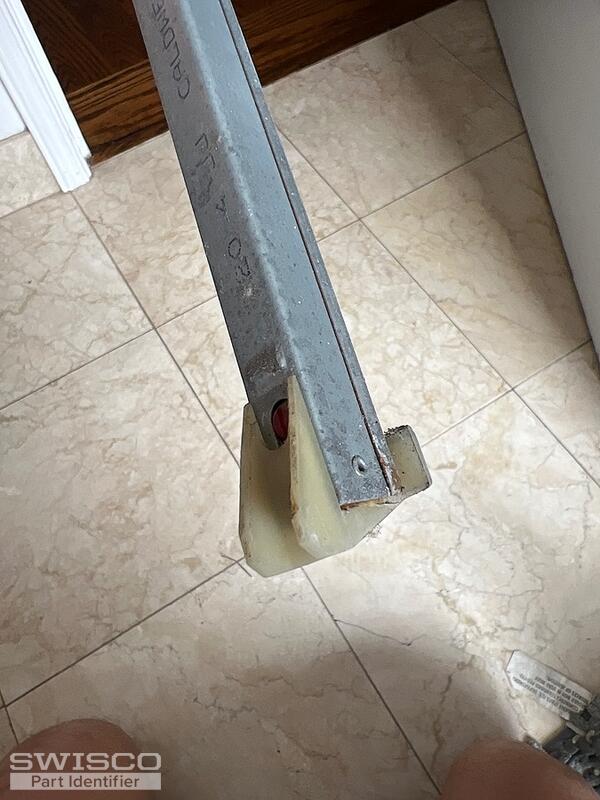

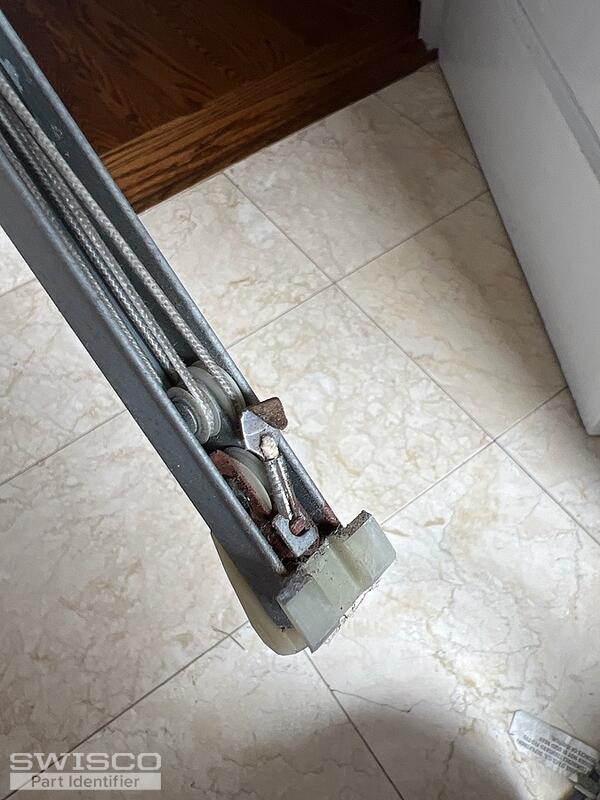

Pictures provided is the side that is not broken.

thanks,

Alan

5 user uploaded images

6 Replies

Emily from SWISCO

Mar 31, 2025 9:35 am

Hi there Alan.

Thanks for reaching out to us. We can help with this. We would just like to see an image of the inside of the balance’s metal channel, where the innerspring connects to the pulley mechanism; this connection is located in the middle of the channel.

Home Owner from Burlingame, California

Mar 31, 2025 9:45 am

Hi Emily,
I will be back home on Thursday to provide the picture.

thanks,

Alan

Emily from SWISCO

Mar 31, 2025 11:54 am

Sounds good! While you're at it, we'd also like you to measure and write out the depth of the bottom shoe as shown below.

Profile view of a winged balance attachment

Home Owner from Burlingame, California

Apr 4, 2025 12:16 am

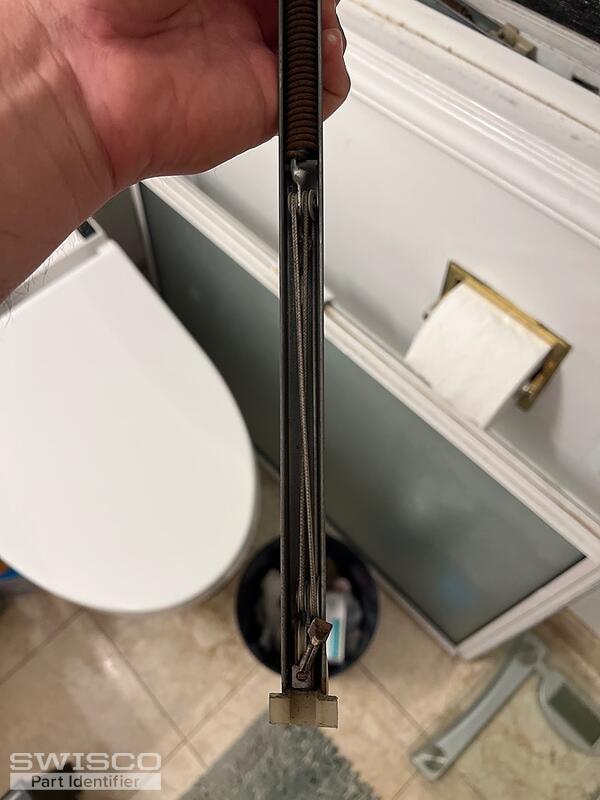

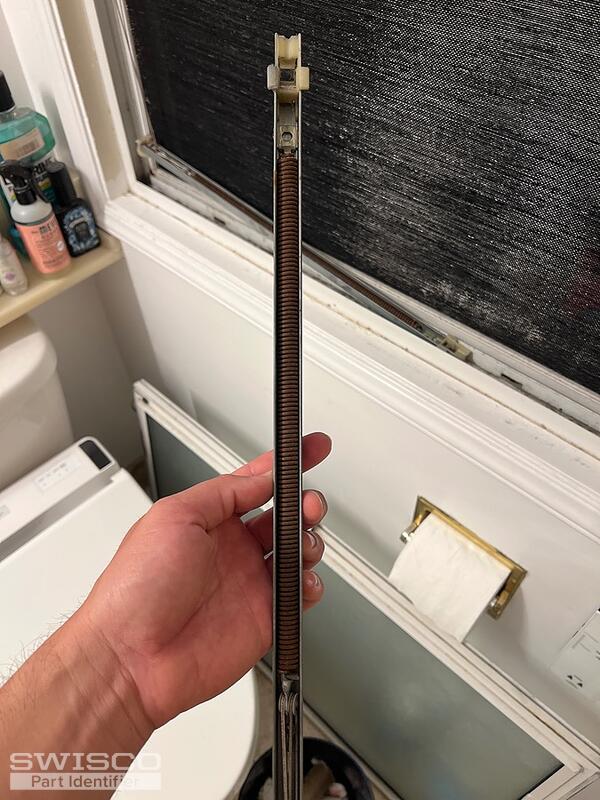

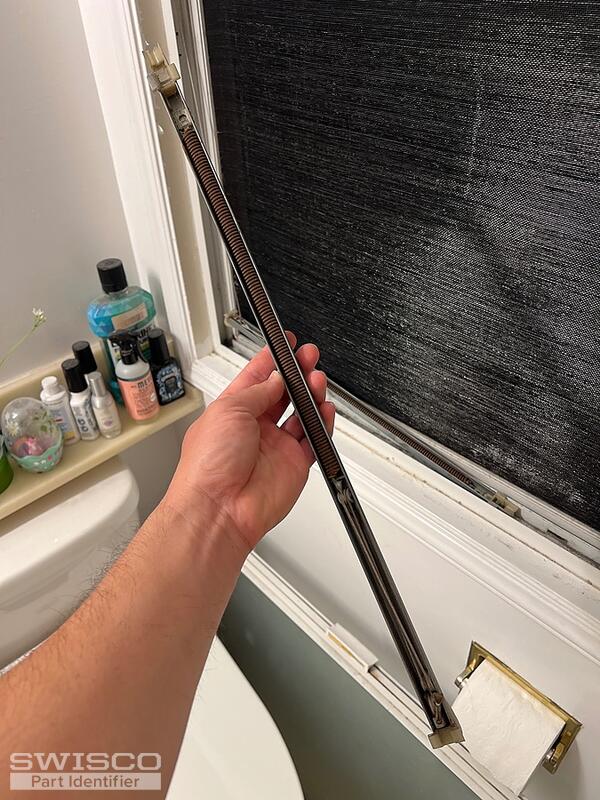

See Photos attached.

depth is 1 inch

3 user uploaded images

Emily from SWISCO

Apr 4, 2025 7:46 am

Prefect thank you!

With a 1" shoe depth, please see the S380-21 channel balance. The length of the metal channel excluding the nylon attachments should measure 21 inches long and you will need a 2040 stamp option. Let us know if you have any additional questions!
