Caldwell block & tackle balance replacement

Quick Learner from Kent, WA

Apr 15, 2018 10:19 pm

I need to replace the Caldwell window balances on 5 windows. Two windows are '20 3 DK Caldwell', another two windows are '20 3 FK Caldwell' and I cannot read the numbers on the 3rd, but the channel measures 18" long (window is 20" H x 16" W) and has the same top and bottom as the 2 balances above. What are the replacement balances I need?

6 Replies

Casey from SWISCO

Apr 16, 2018 10:06 am

Hello,

We'd be happy to help you find a good replacement balance. We'll need a picture of your balance, including both end attachments and stamp number, to get started. Thank you!

Quick Learner

Apr 16, 2018 8:33 pm

They all have the 'winged' top and bottoms, some of those wings are broken in the picture.

2 user uploaded images

Tom from SWISCO

Apr 19, 2018 1:24 pm

Perfect, thank you! I would wager you have either our S385-21 or S380-21, depending on the depth of the bottom shoe. You will need to measure the depth of your shoe to confirm the better match.

Quick Learner from Minnesota

Jun 2, 2021 1:28 pm

I have a couple of broken balance springs. What do I need to order to replace these?

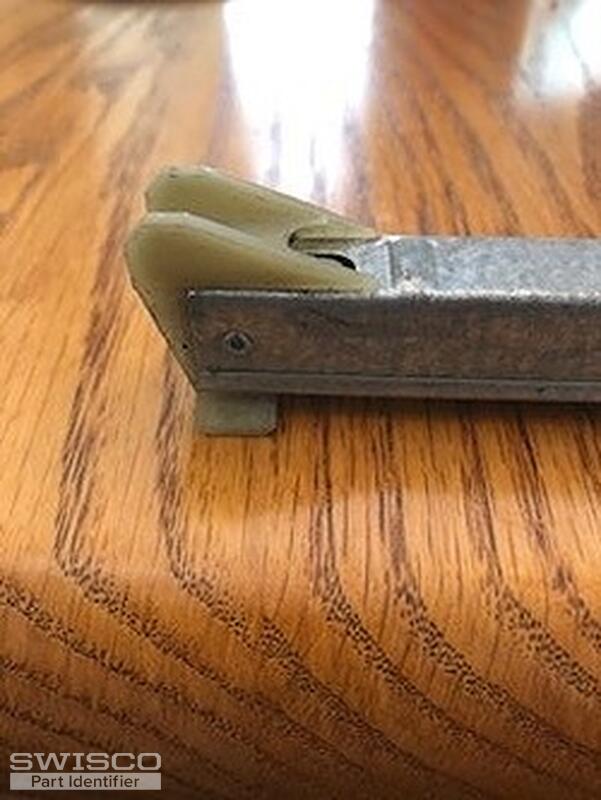

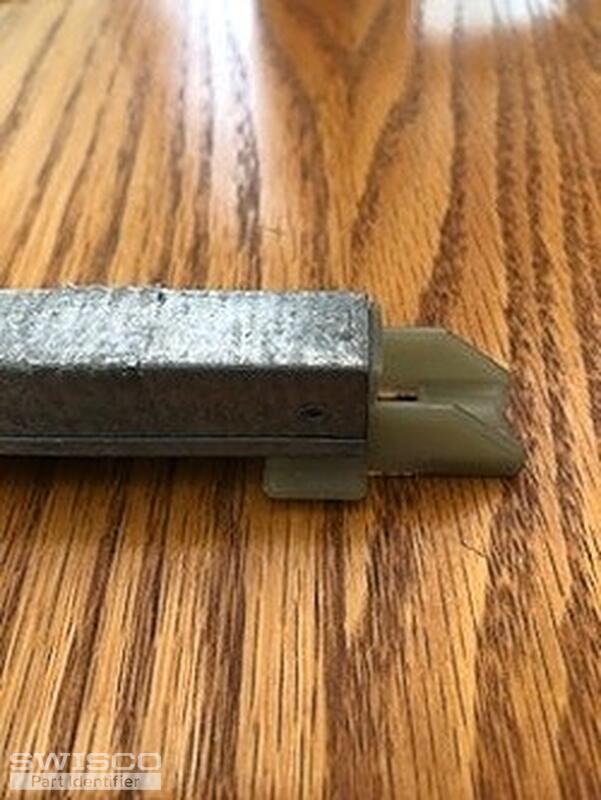

3 user uploaded images

Paul from SWISCO

Jun 8, 2021 9:36 am

From your photos, I surmise that the metal balance channel is 26" long from the marking (25-5) on the channel. The bottom nylon balance shoe looks to be 1-3/32" in-depth, so you can use the S385-26. The spring weight will be 2550 for a sash weighing between 25-28 lbs. Thanks for posting!
