Caldwell channel balance 28 5 DQ

A quick learner from Santa Ana, CA says:
September 14, 2022
Help to replace.
29" long
5/8 wide
5/8" tall
Wings 1" wide
Top wing 1 1/16" tall
Thumbnail of the uploaded file named A4F0F467-D4D1-4E43-A030-84C44B3C42FC.jpeg
Thumbnail of the uploaded file named DE243424-6FAD-4B58-AFE8-C07201CDC825.jpeg
Thumbnail of the uploaded file named C4ECE367-E735-4EF2-AAB4-A49C39EA6F95.jpeg

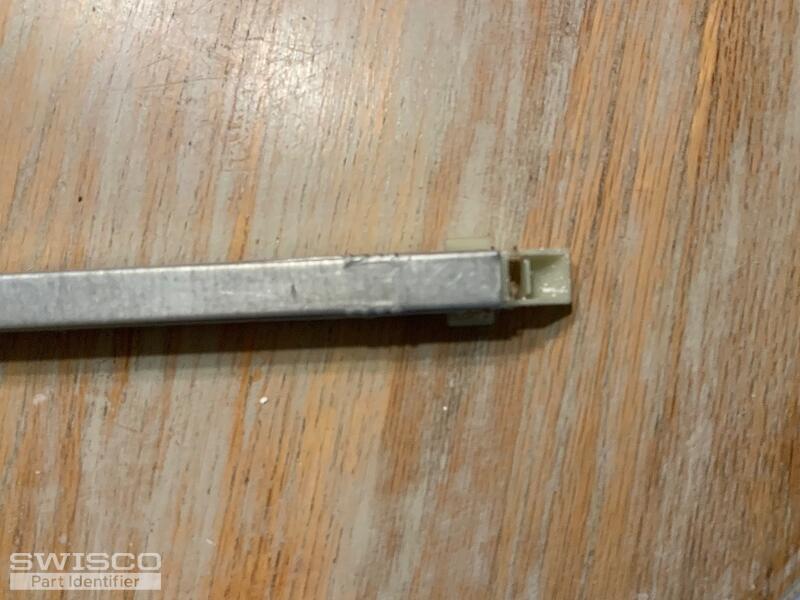

Thumbnail of the uploaded file named D3AE2984-DEFC-42F9-B478-8C29A27B35A3.jpeg
A quick learner says:
September 14, 2022
More pictures from prior post

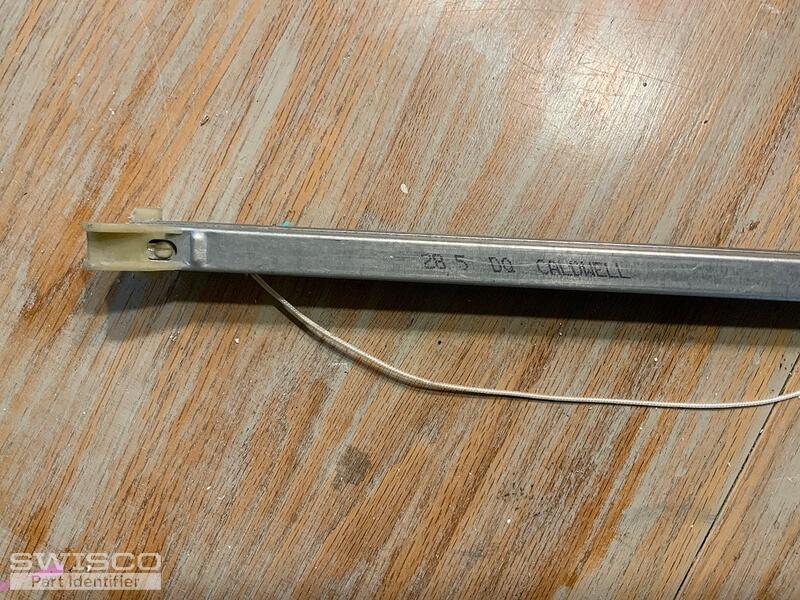

Thumbnail of the uploaded file named 5EEB1AAC-A0C5-4F35-B938-6821D05C91BB.jpeg

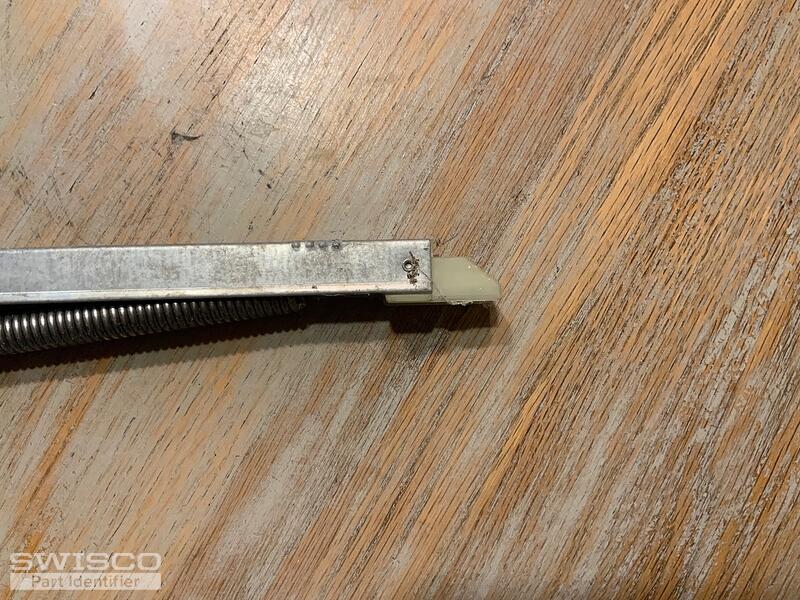

Thumbnail of the uploaded file named D5128E12-1325-4EEA-94C3-9B6E9C16384E.jpeg

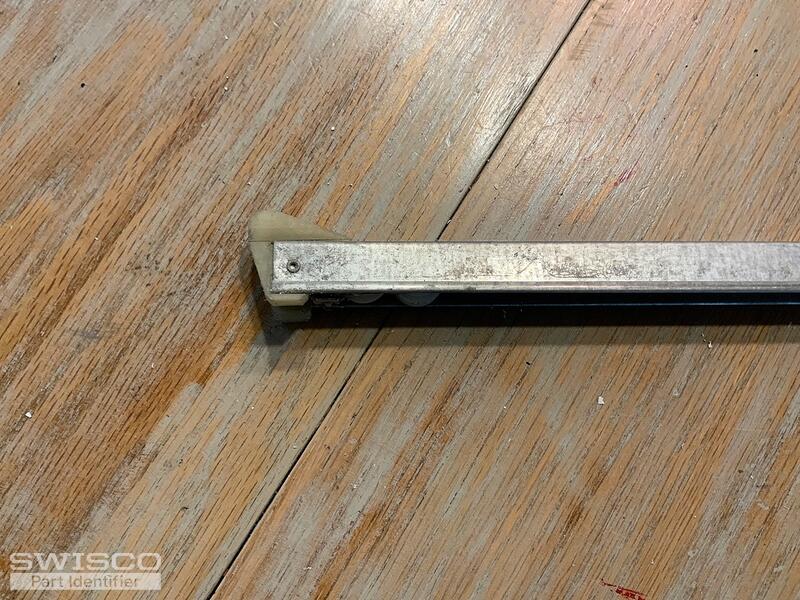

Thumbnail of the uploaded file named 2C14FD7E-4388-40C2-935F-D431382B8C6A.jpeg
Profile picture of Casey
Casey from SWISCO responded:
September 16, 2022

Hello,

With this combination of attachments, you could have either an S380-29 or S385-29 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2850 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
29" Series 380 Channel Balance
29" Series 380 Channel Balance
S380-29
$11.10
29" Series 385 Channel Balance
29" Series 385 Channel Balance
S385-29
$11.10
