Caldwell sash balance

A home owner from Alameda, CA says:
April 12, 2021
I am looking for a replacement for a sash balance. This is coming out of a single hung vinyl window manufactured around 1995. The metal portion is 26" long. Please let me know if you need any other information.
Thumbnail of the uploaded file named 20210412_170501.jpg
Thumbnail of the uploaded file named 20210412_170521.jpg
Thumbnail of the uploaded file named 20210412_170538.jpg

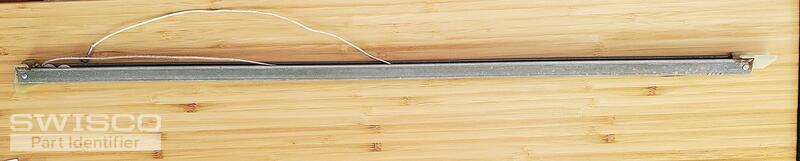

Thumbnail of the uploaded file named 20210412_170556.jpg

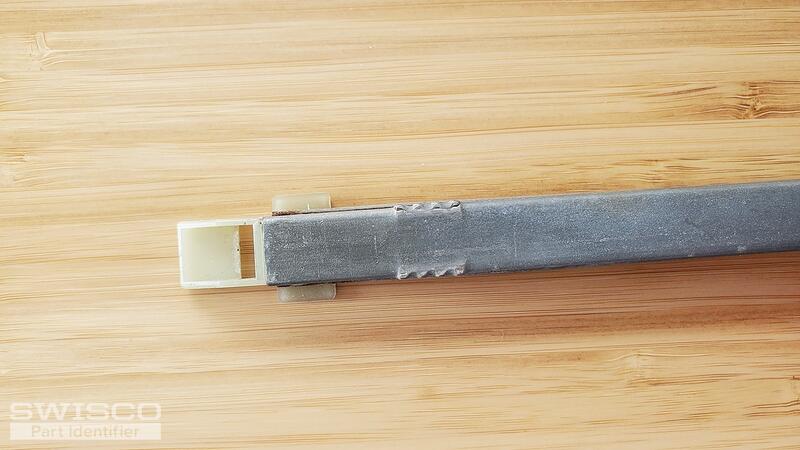

Thumbnail of the uploaded file named 20210412_170304.jpg
Profile picture of Casey
Casey from SWISCO responded:
April 16, 2021

Hello,

With this combination of attachments, you could have either an S380-26 or S385-26 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2530 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.



Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
26" Series 380 Channel Balance
26" Series 380 Channel Balance
S380-26
$10.55
26" Series 385 Channel Balance
26" Series 385 Channel Balance
S385-26
$10.55
