Caldwell window balance 28" stamped 27 5 CT Caldwell

A home owner from Santa Rosa, CA says:
October 22, 2022
Hi,

Im trying to figure out which balance I need. The house was built in 2002 and the metal portion of the balance is 28". It is stamped 27 5 CT Caldwell. As you can see from photos the top and bottom tips are winged.

Thanks, Tom

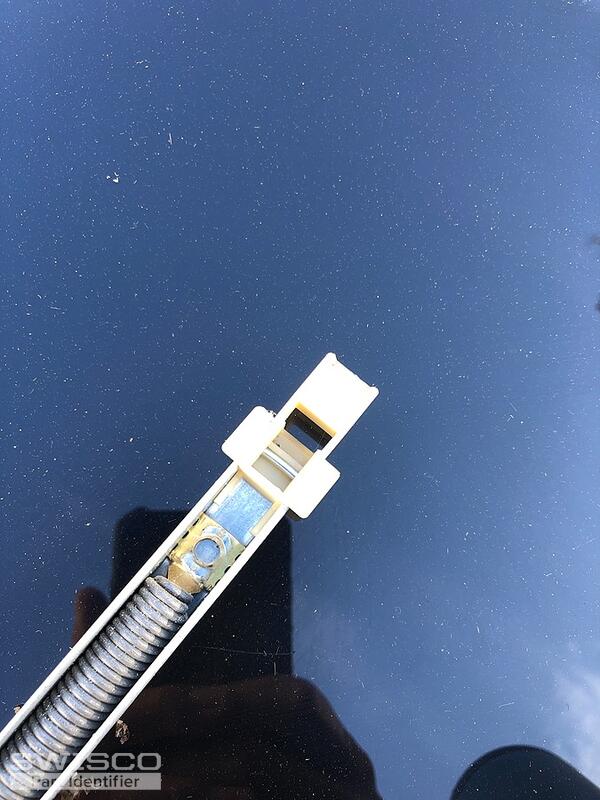

Thumbnail of the uploaded file named image.jpg

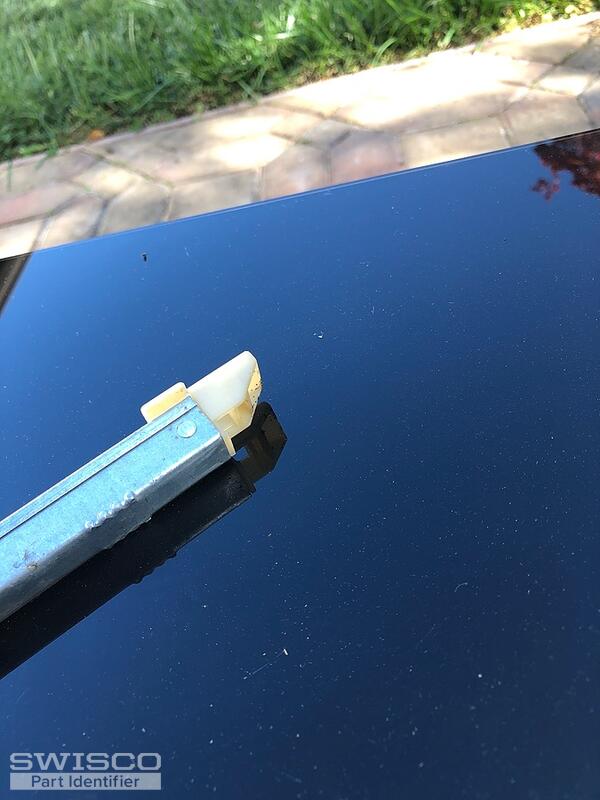

Thumbnail of the uploaded file named image.jpg

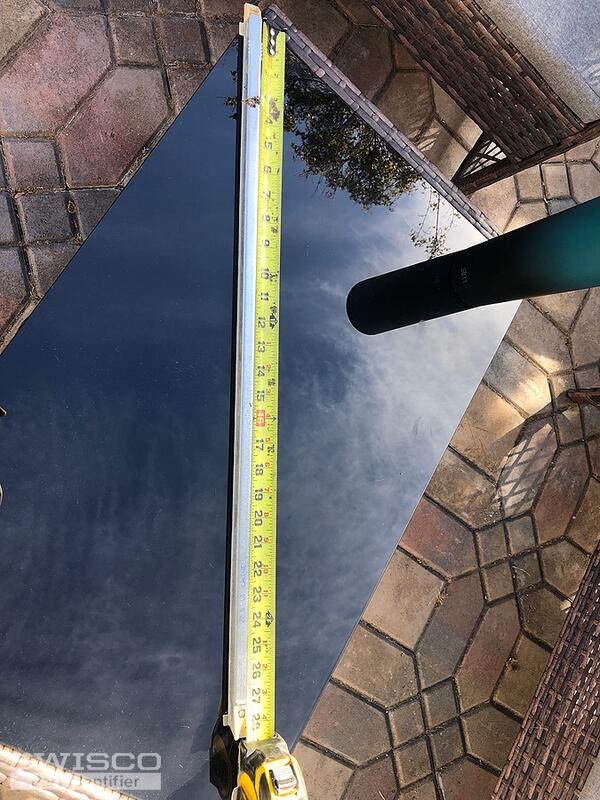

Thumbnail of the uploaded file named image.jpg

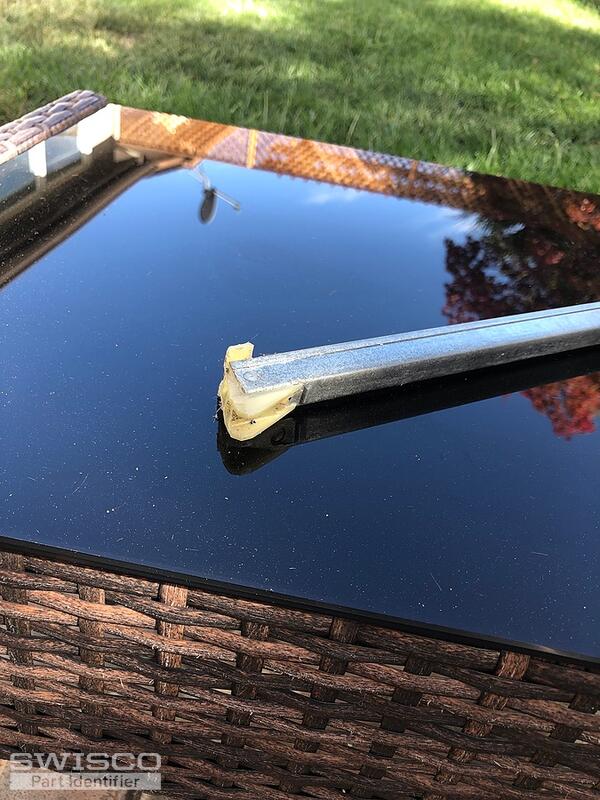

Thumbnail of the uploaded file named image.jpg

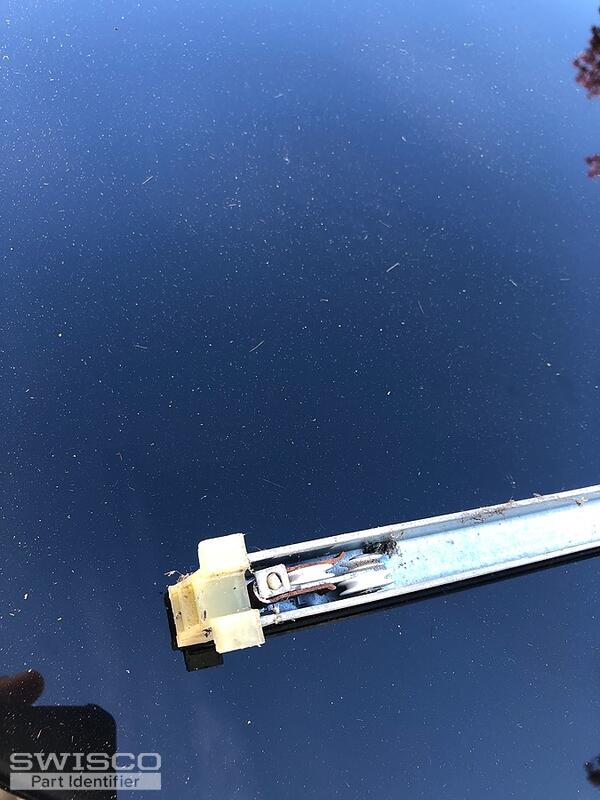

Thumbnail of the uploaded file named image.jpg
Profile picture of Emily
Emily from SWISCO responded:
October 26, 2022

Hi, Tom.

It looks like your balance matches either the S380-28 or S385-28 channel balance, depending on the depth of the bottom shoe. Our Series 380 comes attached with a 1" deep shoe and the Series 385 comes attached with a 1-3/32" deep shoe. Measure as shown in the image below to determine the best match. You will also need to select the 2750 spring strength option.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
28" Series 380 Channel Balance
28" Series 380 Channel Balance
S380-28
$10.97
28" Series 385 Channel Balance
28" Series 385 Channel Balance
S385-28
$10.97
