Caldwell window balance

Home Owner from Washington
25 3 EO CALDWELL
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

I am afraid that stamp only tells us the strength of the spring inside the balance. To know what kind or Series it is, we need to see pictures of the nylon fittings on either end. From there we should be able to help.

Home Owner from Washington

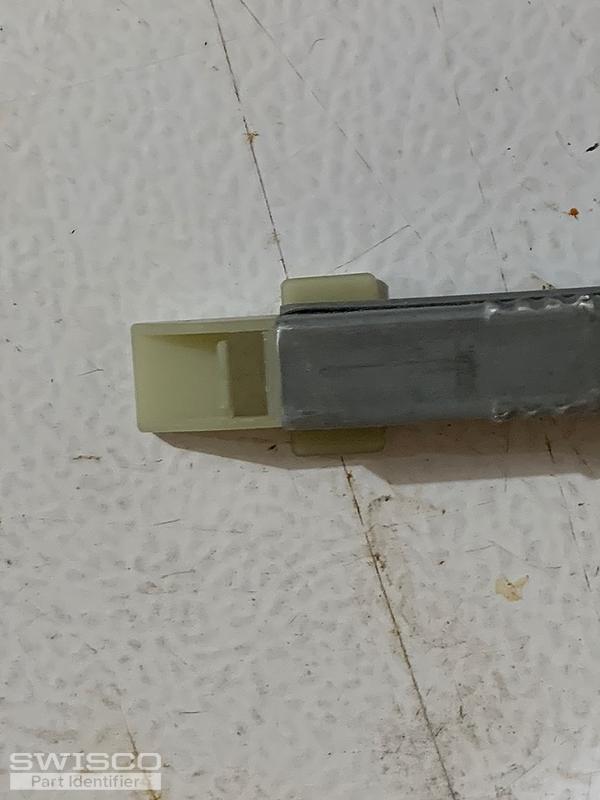

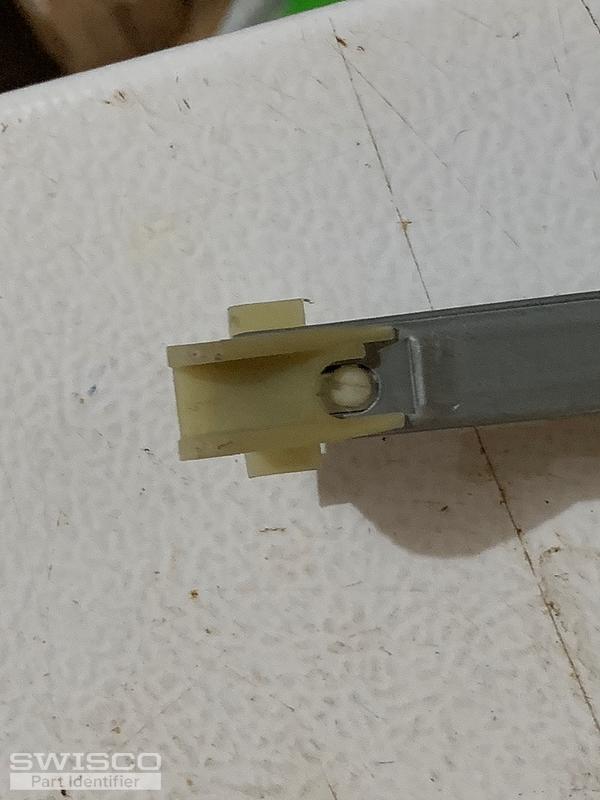

Thank you for your help. I have added 5 pictures. If you need more please let me know.
5 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

See our S380-26 or S385-26. The only difference between these two balances is the depth, or 'heel-to-toe' measurement, of the bottom nylon shoe, so compare both with your old hardware to see what matches up. You'll need a stamp option of 2530.
