Window Balance 20 4 DS Caldwell

Quick Learner from Los Angeles
Hi there. I need a replacement for a 22

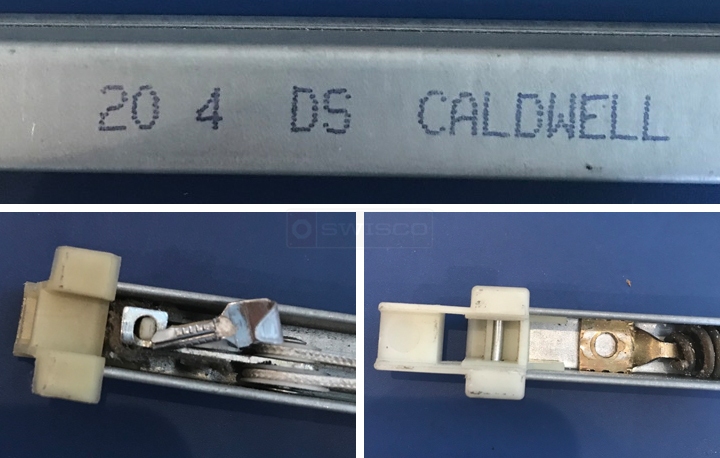

User submitted photos of a window balance.
3 Replies
Tom
Tom from SWISCO
SWISCO
Expert
I am willing to bet that your balance only measures 22" if you include the plastic. Measure the metal by itself, and I suspect you'll come up with 21". Double-check. If so, this is S385-21 or S380-21. You'll want to consider the 2040 stamp option for windows between 15 and 23 pounds, and measure your bottom shoe like the photo below to determine which Series. Series 380 has the 1" shoe, and Series 385 has the 1-3/32" shoe.
Comparison of 15-004 and 15-005
Comparison of 15-004 and 15-005
Quick Learner from Los Angeles
Great! Thanks so much
