Hi there.

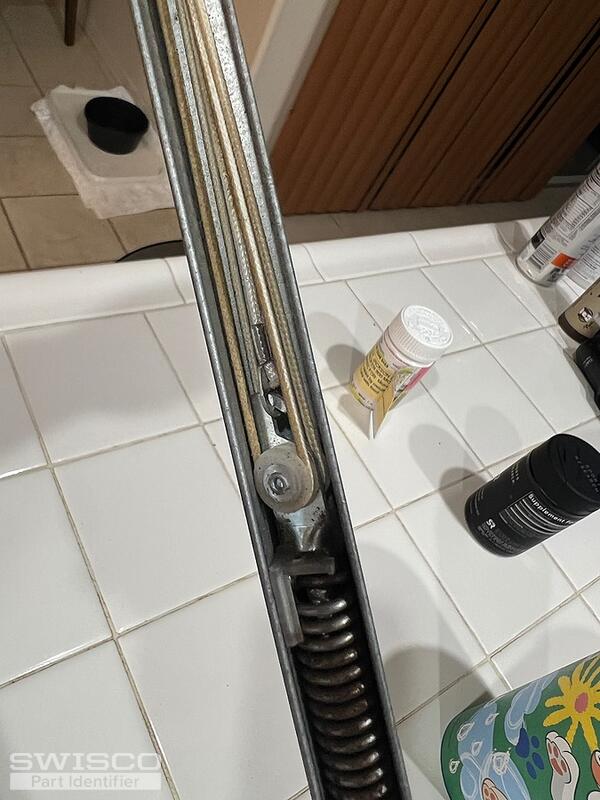

My balance is 28" in length (metal only). 9/16 wide - (1/2" wide inside the channel with the spring).
Stamp on the balance states "27 4 C5 CALDWELL"
Thank you!
Caldwell window balance identification
Quick Learner from San Diego California
Oct 17, 2024 11:31 pm
5 user uploaded images
4 Replies
Casey from SWISCO
Oct 21, 2024 4:08 pm
Hello,

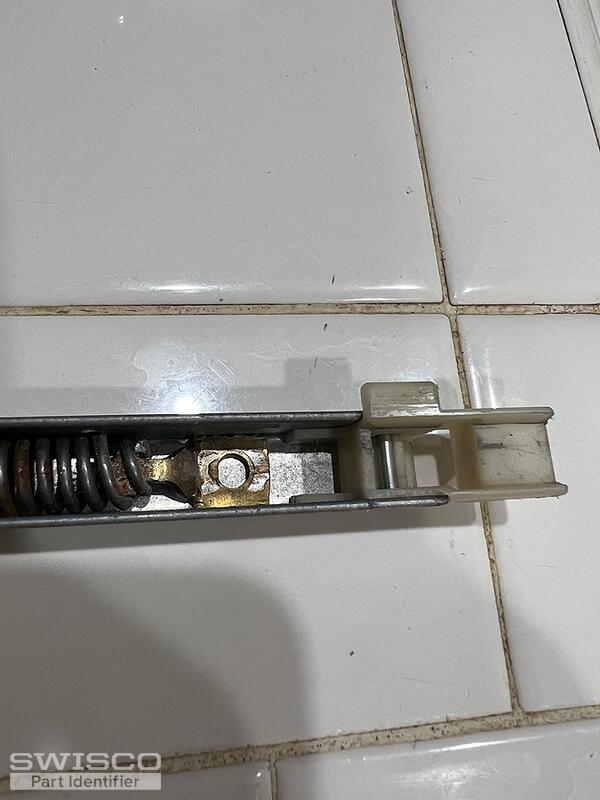

It looks like your balance shoe may have had wings that broke off. If so, you could have either the S380-28 or S385-28 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.
You'll also need 2740 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.
Comparison of the S378, S380 and S385 balance shoes.
Quick Learner from San Diego California
Oct 21, 2024 4:45 pm
Hi. The balance shoe is 1-3/32 wide. There is not stamp on the balance. The window weights 24.3 pounds on a bathroom scale.
Thank you for your time
Tony
1 user uploaded image
Casey from SWISCO
Oct 22, 2024 8:37 am
In that case, you would need the S385-28 channel balances. The 27 4 stamp shown in your original post would correspond to 2740 strength options to support a sash between 19-26 lbs.
