Cam locks from double hung sashes

A home owner from Manistee MI says:
August 29, 2018

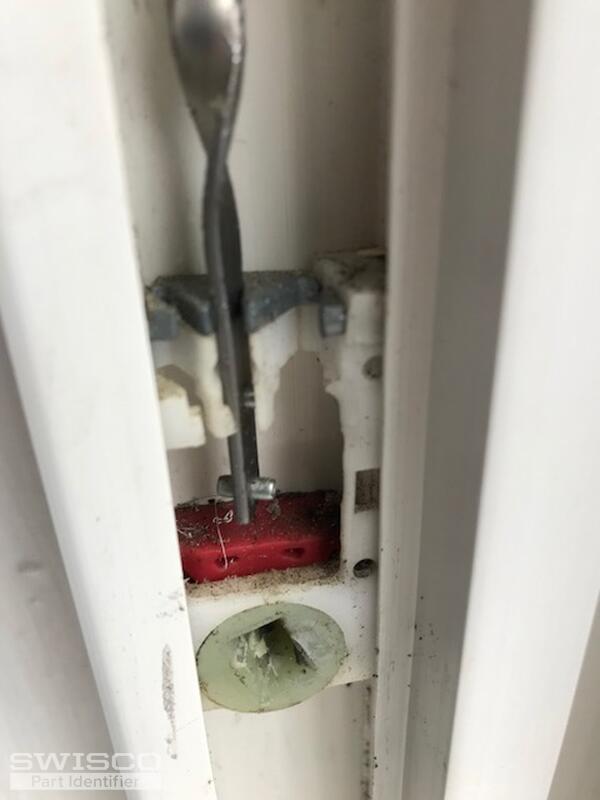

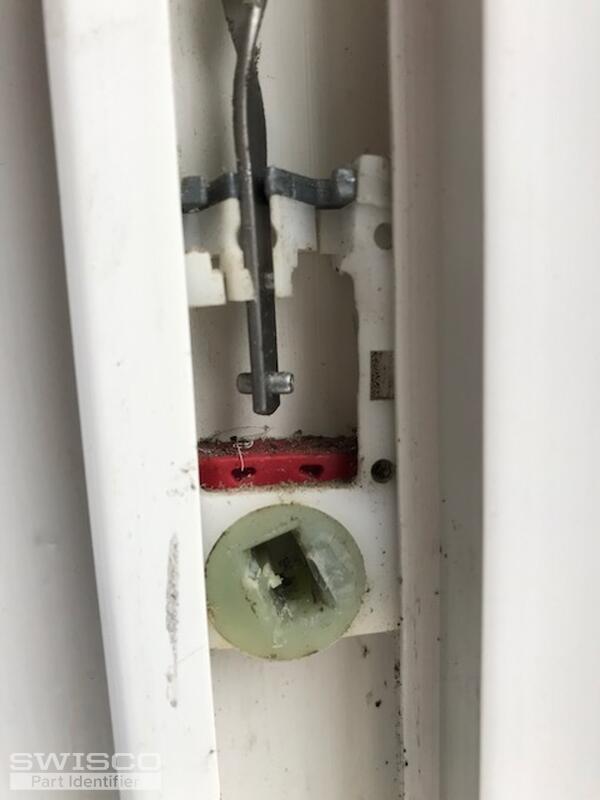

These are Thermolock windows installed in 1999.
Cam measures approximately 1-3/8"wide, 2-1/16" tall, 9/16" deep.

Will also need a spiral tensioner tool.
Profile picture of Tom
Tom from SWISCO responded:
September 6, 2018

Can you confirm the width? It should be more like 1-1/4". You may want to remove it from the window to be sure your measurements are as exact as possible. If it is 1-1/4" wide and 9/16" thick, then see our 15-046, which matches your dimensions.

As for the charging tool, see our 75-006.
A home owner from Manistee MI says:
September 6, 2018
Yes, the 15-046 is the correct replacement.
I'll be putting an order in soon.

Thanks, Tom.
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-046
$2.15
Spiral Balance Charging Tool for Tilt Windows
Spiral Balance Charging Tool for Tilt Windows
75-006
$9.97
