Can this be fixed

Quick Learner

Oct 30, 2023 5:10 pm

The windows are M and W. The part looks like a big spring with strings attached to the top. The windows wont stay up. Can you help.

1 user uploaded image

6 Replies

Casey from SWISCO

Oct 31, 2023 3:49 pm

Hello,

Your original crossbow style balance is no longer available but as long as yours has a 1/2" diameter spring, you can follow the video below to convert to the S795 channel balances. Thanks for posting!

Quick Learner

Oct 31, 2023 4:30 pm

So I took it out. There was not a screw at the top. The string was tied on a little hook. You think I can still screw the 795 in. It messers 17 inches from bottom of black t to top of white plastic part.

1 user uploaded image

Casey from SWISCO

Nov 1, 2023 8:17 am

It looks like you are showing where the pulley connects to the spring. We would need to see how the pulley connects to the window jamb to determine which version of the S795 could work for your repair.

Quick Learner

Nov 1, 2023 10:12 am

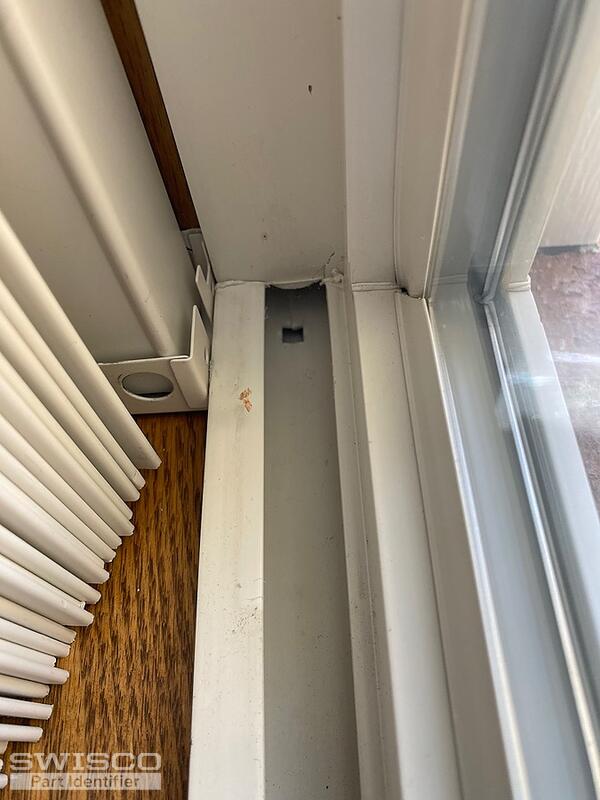

The one pic shows with the cord attached the other without plastic piece. The window is 59.5 inches. Thank you for your help.

2 user uploaded images

Casey from SWISCO

Nov 1, 2023 10:30 am

Your balance appears to use the discontinued P-clip shown at time stamp 1:13 in our conversion video, which will require the 26-200 screw plug to attach the clip that comes with the S795 balance.
