Can't find the part required

Home Owner from Kunkletown, PA

Jun 13, 2023 4:09 pm

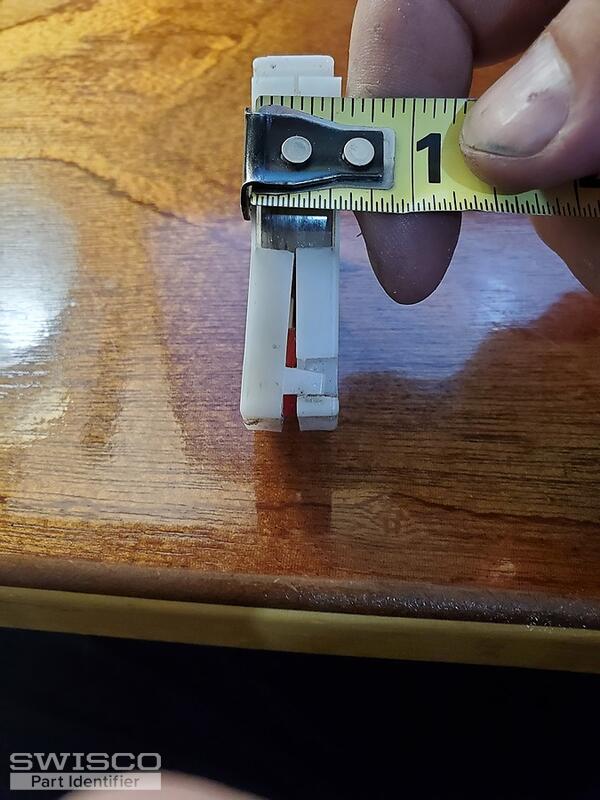

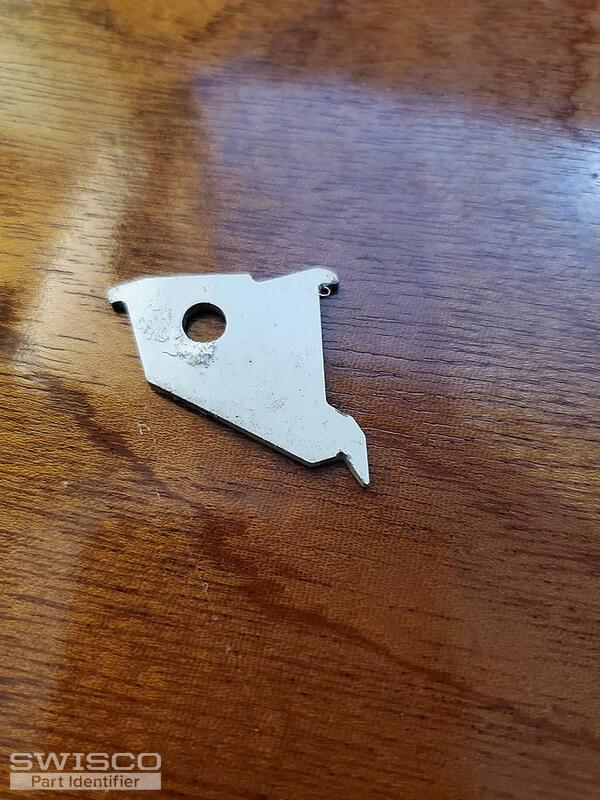

The only number on it is a Patent #5,353,548 it is on both sides. the windows are going on 20 years they were ordered through some fly-by-night company all those years ago. The part looks like a S-161 with the end of it looks like the S-180

5 user uploaded images

8 Replies

Emily from SWISCO

Jun 14, 2023 9:35 am

Hello there!

Our 15-087 pivot shoe looks like a better match for what you have here. This part is designed to be used with the Series 180 coil springs. We also sell the 16-024 mounting bracket. Take a look at the specifications and see how they align with yours.

Detail of 15-087

Home Owner from Kunkletown, PA

Jun 14, 2023 10:01 am

How do I figure the weight to get the right coil

Thank You!!!

Emily from SWISCO

Jun 14, 2023 10:23 am

There should be a stamped code on the band of the spring that will indicate what weight is needed. If there aren't any, you will have to divide the sash weight by the total number of springs in the window.

Home Owner from Kunkletown, PA

Jun 14, 2023 12:12 pm

Perfect, Sash weighs 10.8 lbs so should it be a S180-5 correct?

Emily from SWISCO

Jun 14, 2023 12:35 pm

I agree! One S180-5 5-pound spring on each side of the window will total 10 pounds of overall support which should be fine as long as the coil weights are within a pound of your sash's actual weight.

Home Owner from Kunkletown, PA

Jun 14, 2023 12:59 pm

Again Thank you placing an order now!!

Emily from SWISCO

Jun 14, 2023 1:09 pm

You got it! Thank you for your order! Please let me know if I can be of further help and best of luck with the repair!
