Caradco Window Operators & Handles

A professional from Dover OH says:
July 9, 2020

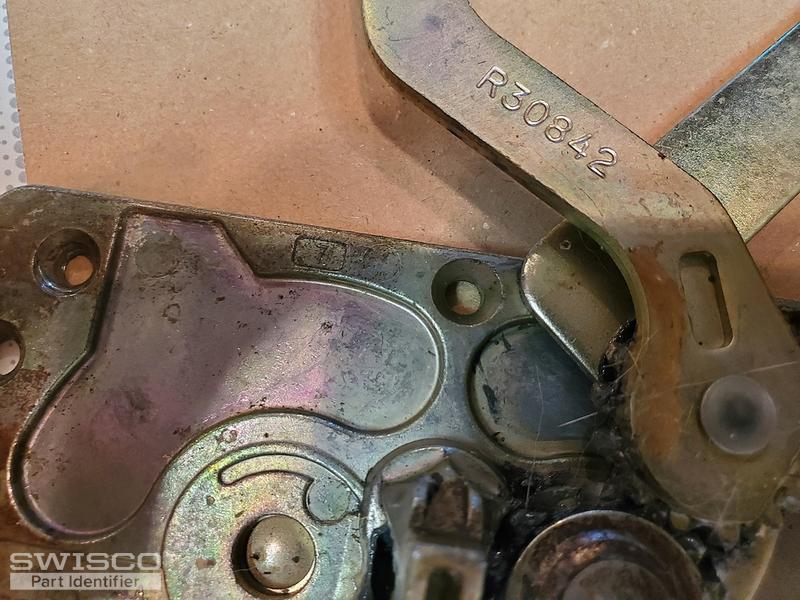

Casement sash operators for two different size sash, however operator is same. Need 4 right mounted and 6 left mounted. Only noted variance on operators is number stamped on arm attached to gear; R30842 vs. 30842R?

Also need 6 crank operator handles, color as illustrated in photo.

Regards,

Ken

Thumbnail of the uploaded file named 20200709_143241.jpg
Thumbnail of the uploaded file named 20200709_150207.jpg
Thumbnail of the uploaded file named 20200709_152600.jpg

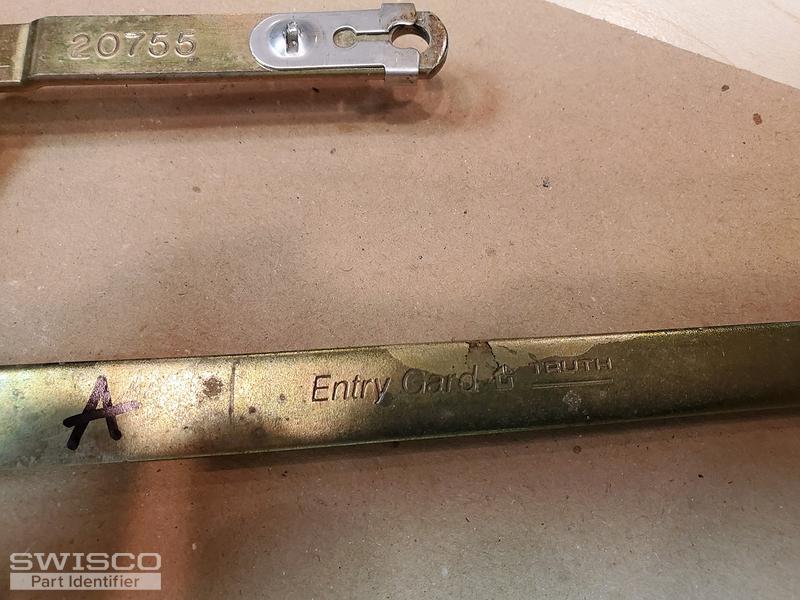

Thumbnail of the uploaded file named 20200709_152612.jpg
Thumbnail of the uploaded file named 20200709_152619.jpg
Profile picture of Bob
Bob from SWISCO responded:
July 13, 2020

Hey Ken. This looks like either the 39-155 & 39-156, or possibly the 39-031 & 39-032. The only difference between these two sets of operators is the length of the link arm, so compare both with your old hardware to see which matches best.
EntryGard Dual Arm Operator
EntryGard Dual Arm Operator
39-031
$29.70
EntryGard Dual Arm Operator
EntryGard Dual Arm Operator
39-032
$29.70
Caradco Window Crank, 9-1/2"
Caradco Window Crank, 9-1/2"
39-155
$29.85
Caradco Window Crank, 9-1/2"
Caradco Window Crank, 9-1/2"
39-156
$29.85
