Contractor from Clarksville, TN

Jun 7, 2024 2:00 pm

I have 6 windows that need the operating mechanism with brown covers and cranks. I have 3 lefts and 3 rights

1 user uploaded image

7 Replies

Emily from SWISCO

Jun 10, 2024 11:48 am

Hello there!

Thanks for reaching out to us. It looks like a few of your photos didn't come through. May we see a clear shot of the window open so that the operator's arms are fully visible?

In the meantime, take a look at the 39-107 cover and 39-114L and 39-205 handles depending on your preference.

Contractor from Clarksville, TN

Jun 10, 2024 6:58 pm

Take 2

Emily from SWISCO

Jun 11, 2024 8:05 am

Our part identifier failed to upload your photo, unfortunately. I'm sorry about that. Can you email your photo to help@swisco.com with reference number D327305?

Contractor from Clarksville, TN

Jun 11, 2024 6:03 pm

I sent the pic to the email provided

Contractor from Clarksville, TN

Jun 12, 2024 8:43 am

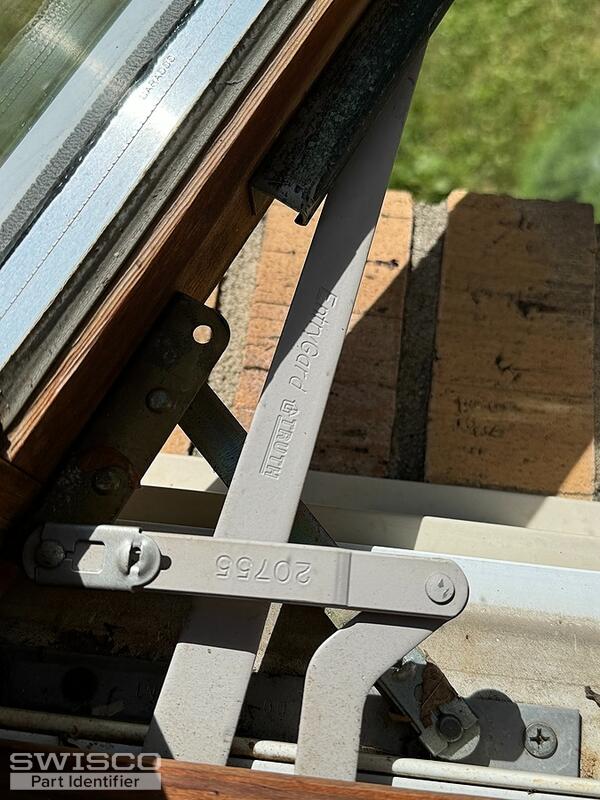

Here is the picture

3 user uploaded images

Emily from SWISCO

Jun 12, 2024 9:26 am

Thank you! It looks like you may have the 39-031 & 39-032 or the 39-155 & 39-156 operators. Have a look at the specifications and see which ones match up with your old assembly.

Dimensions for 39-031

Dimensions for 39-032

Dimensions for 39-155

Dimensions for 39-156
