Casement Crank Operating Replacement

Handy Person from Northfield, NJ

Jul 26, 2016 3:12 pm

Hello, need a replacement for attached crank and mechanism, i show it as LH Window Crank Operator, 3/8" Hole 39-193 just want to be sure, thanks! John J

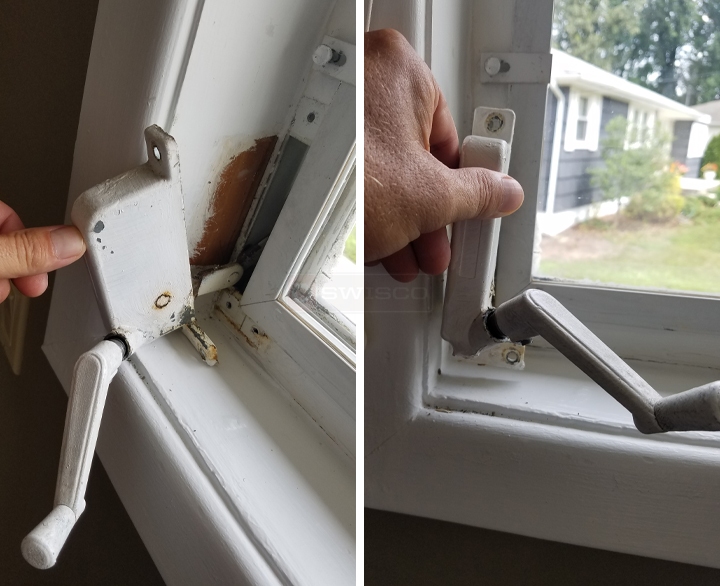

User submitted photos of a window operator.

3 Replies

Handy Person from Northfield, NJ

Jul 26, 2016 3:45 pm

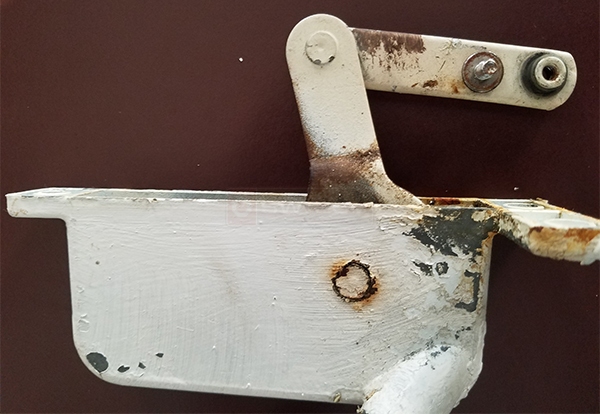

What size shoulder screw? Here is another picture FYI

Dave Sr. from SWISCO

Aug 1, 2016 12:24 pm

Thanks for posting. believe your operator is closer to the 39-026. Take a look and see if the dimensions and the bottom mounting hole centers match up to yours.
