Casement Harware

A contractor from Owego says:
May 22, 2019
Looking for availability and price of this hard ware, need one window crank left hand.
One bottom hinge bracket left hand. Left hand is From the out side, hinges on the left.
Thumbnail of the uploaded file named 15AAC22A-ECA9-44DF-93DC-7776DFAFDAC4.jpeg
Thumbnail of the uploaded file named 29B85734-BB65-47D5-AEC7-E26299CE22D8.jpeg
Thumbnail of the uploaded file named 076BB8B8-3D09-48F2-85FC-C43CCDC4DE31.jpeg

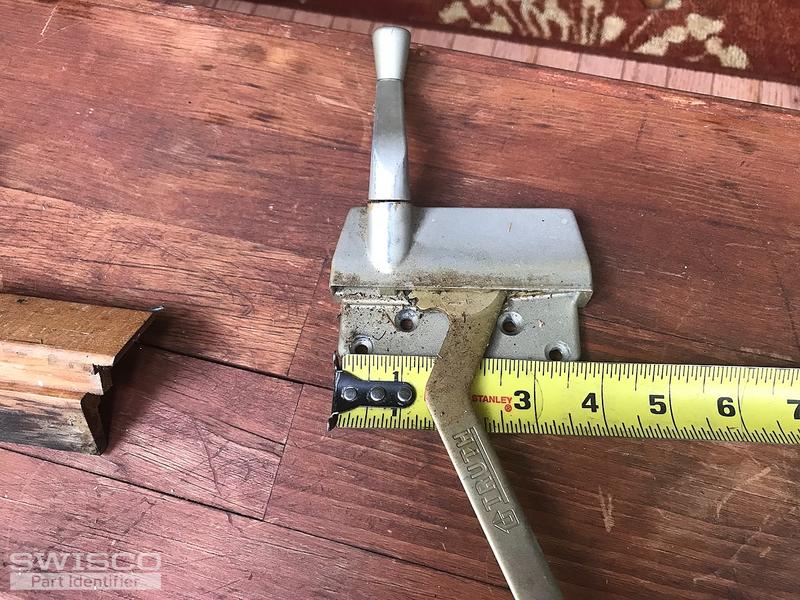

Thumbnail of the uploaded file named FEE73631-85A1-4761-BBCB-330FC8E36AB0.jpeg
Profile picture of Tom
Tom from SWISCO responded:
May 23, 2019

Hello! We don't have your exact hinge, but I believe that our 39-048 can be used as a substitute as long as you replace the top and bottom at the same time. Look it over and let me know what you think.

The operator is a little trickier. I don't think this is made anymore, either; most modern operators use a round wheel at the end of the arm rather than that square slider. You could potentially use our 39-027E as a replacement, but you may also need a new 39-533 track to accommodate the newer style wheel. Would you be able to install this track on the face of your sash?
2-Bar Hinge Set, 10"
2-Bar Hinge Set, 10"
36-048
$17.47
Ellipse Style Single Arm Operator, 9-1/2"
Ellipse Style Single Arm Operator, 9-1/2"
39-028E
$20.70
Ellipse Style Single Arm Operator, 9-1/2"
Ellipse Style Single Arm Operator, 9-1/2"
39-027E
$20.70
11-3/8" Casement Operator Track, 3 Hole
11-3/8" Casement Operator Track, 3 Hole
39-533
$2.95
