Casement Operator and Handle

Quick Learner from Woodstock, IL
Jun 22, 2023 9:31 am
Hi. Looking for this from a builder grade window. Thanks!
IMG-9208
1 user uploaded images
6 Replies
Bob
Bob from SWISCO
Jun 25, 2023 7:33 pm
SWISCO
EXPERT

Hello there. This old GU Operator is no longer made, but our 39-316 should be able to replace it. The video explains how this is possible. See what you think.

Quick Learner from Woodstock, IL
Jun 26, 2023 11:54 am
Wonderful! This window has not been in operation for years and glad to know now that there is a fix available. Thank you so much!
Quick Learner from Woodstock, IL
Jul 5, 2023 5:25 pm
Hello Bob!

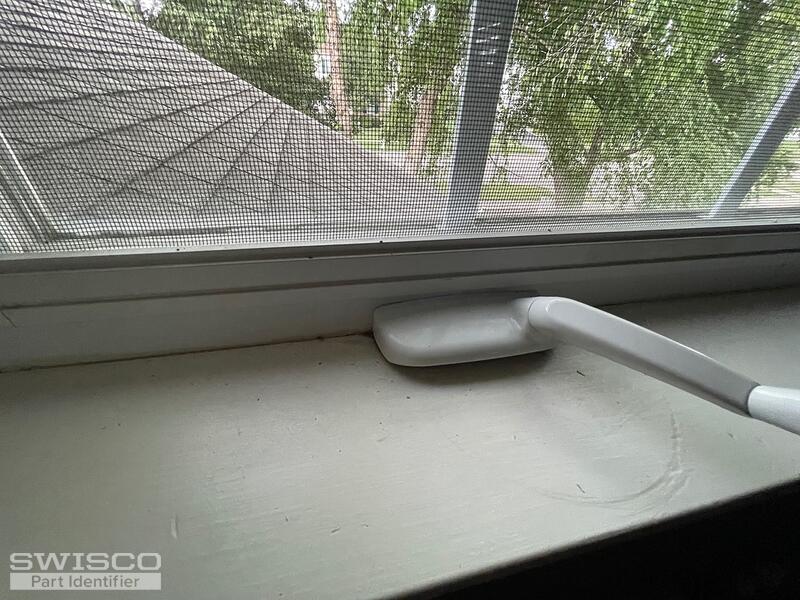

I can be more happy to see this window operate after 10+ years. However I am concerned with the design. It seems to sit at least 2 pennies to high(for reference as I tried to shim it up)because the crank seems to wobble a bit when opening. Any recommendations to shim it up and make more stable? Thanks!
IMG_9383 IMG_9384 IMG_9385
3 user uploaded images
Bob
Bob from SWISCO
Jul 6, 2023 8:28 am
SWISCO
EXPERT

I see what you mean. That appears to be a slight flaw in the design of the window itself, which is unfortunate. You don't have many options for stabilizing the base of the operator in this case. What I would do in your position is get a small piece of wood or even vinyl that would cover the gap and nail it directly to the sill. It's not elegant, and it may be obtrusive if you ever decide to put new windows in, but it's probably going to be your best option.

Quick Learner from Woodstock, IL
Jul 6, 2023 9:28 am
That was the thought I had that it is what it is with the window. And great idea with the vinyl. I'm also thinking a laminate counter top chip too. Thank you!
Bob
Bob from SWISCO
Jul 6, 2023 10:59 am
SWISCO
EXPERT

You're welcome! Hopefully shimming up under the base doesn't prove to be too much of a hassle.

Best of luck on this project and please feel free to reach out if you had any other questions!
